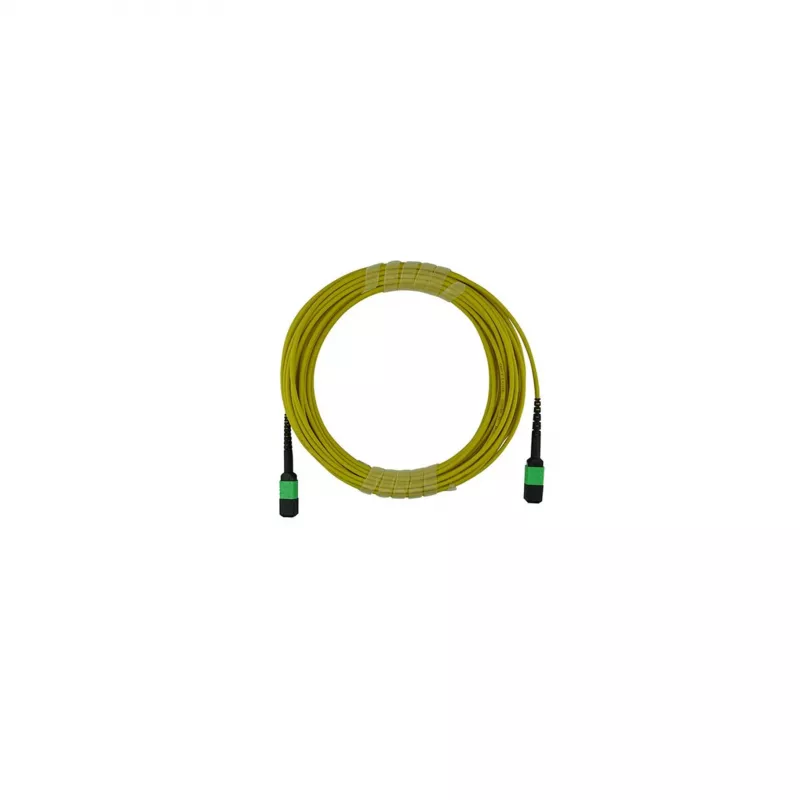

BlueOptics Cabo trunk MPO monomodo 12 fibras 1 metro Tipo B

The BlueOptics MPO trunk cable is a high-performance fiber optic patch cable designed for data center and enterprise network applications. It features 12 singlemode fibers with MPO/MTP connectors on both ends, polarity type B, and a 1-meter length. The cable is constructed with LSZH (Low Smoke Zero Halogen) jacket material in yellow color, ensuring safety and easy identification.

Advantages

This trunk cable provides reliable and low-loss connectivity for high-density fiber environments. The APC polish ensures excellent return loss performance, while the LSZH jacket reduces toxic smoke in case of fire. The type B polarity is ideal for cross-over connections in parallel optics systems.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• High-speed optical interconnects (40G/100G/400G)
• Telecommunications and central offices

Key specifications

• Cable Type: MPO Trunk Cable
• Fiber Mode: Singlemode OS2
• Fiber Count: 12 Fibers
• Connector Type: MPO/MTP to MPO/MTP
• Connector Polish: APC
• Polarity: Type B (Cross-over)
• Cable Length: 1 Meter
• Jacket Material: LSZH
• Jacket Color: Yellow
• Outer Cable Diameter: 4.5 mm
• Fiber Standard: ITU-T G.657.A1 / G.652.D
• Insertion Loss (Max): ≤ 0.35 dB per connector pair
• Return Loss (Min): ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10 mm
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Recommendations

For optimal performance, ensure proper cleaning of MPO connectors before mating. Use appropriate polarity management to match your system requirements. This cable is compatible with standard MPO/MTP adapters and cassettes.
