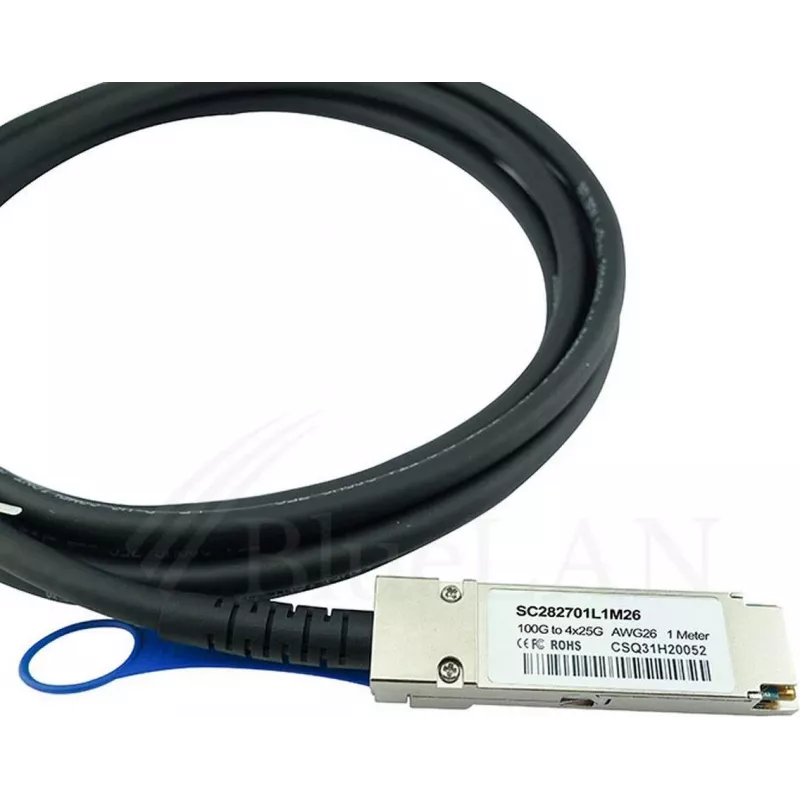

BlueOptics Compatível Brocade 100G-Q28-S28-C-0101 BlueLAN Cabo Breakout Direct Attach Passivo 100GBASE-CR4 QSFP28 para 4x25GBASE-CR SFP28, 1m, AWG26

The BlueOptics 100G-Q28-S28-C-0101-BL is a high-performance passive direct attach breakout cable (DAC) designed for Brocade compatible 100G-Q28-S28-C-0101 interfaces. It enables seamless conversion from a single 100G QSFP28 port to four 25G SFP28 ports, ideal for data center and high-performance networking environments.

Advantages

Cost-effective and low-power solution for high-speed interconnects. Plug-and-play installation with no configuration required. Supports aggregate data rates of 100 Gbps with per-lane speeds of 25 Gbps. Compliant with IEEE 802.3bj 100GBASE-CR4 and IEEE 802.3by 25GBASE-CR standards.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network aggregation
• Brocade compatible networking equipment

Key specifications

• Product Type: Direct Attach Breakout Cable (DAC)
• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Cable Length: 1 Meter (3.28 ft)
• Cable Gauge: AWG26
• Cable Type: Passive Copper
• Data Rate: 100 Gbps aggregate (4x 25 Gbps)
• Standards: 100GBASE-CR4 / 25GBASE-CR
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure your network equipment supports 100GBASE-CR4 and 25GBASE-CR standards. This cable is compatible with Brocade 100G-Q28-S28-C-0101 interfaces and similar QSFP28/SFP28 ports.
