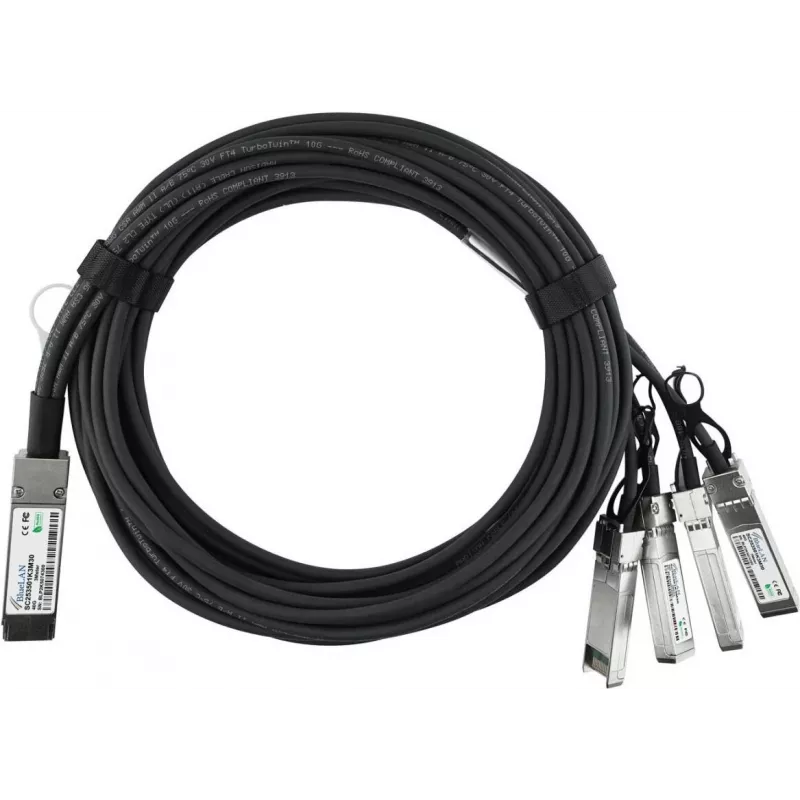

BlueOptics Dell 331-8151 BlueLAN Passives 40GBASE-CR4 QSFP para 4x10GBASE-CR SFP+ Cabo Breakout Direct Attach, 3 m

The BlueOptics Dell 331-8151 BlueLAN passive 40GBASE-CR4 QSFP to 4x10GBASE-CR SFP+ Direct Attach Breakout Cable is a high-performance copper cable designed for data center and high-performance computing environments. It provides a cost-effective solution for connecting 40G QSFP ports to four 10G SFP+ ports, enabling seamless network upgrades and flexible connectivity.

Advantages

This breakout cable simplifies cabling by replacing four separate 10G cables with a single 40G to 4x10G assembly, reducing clutter and improving airflow. Its passive design ensures low power consumption and zero latency, making it ideal for short-range, high-speed interconnects. The cable is fully compatible with Dell 331-8151 equipment and other standard QSFP/SFP+ interfaces.

Suitable for

• Data center interconnects between 40G switches and 10G servers or storage
• High-performance computing (HPC) clusters requiring high-density cabling
• Network upgrades from 10G to 40G backbone with existing 10G devices
• Short-distance, high-bandwidth links within racks or adjacent racks

Key specifications

• Cable Type: Direct Attach Cable (DAC), Passive
• Configuration: Breakout (1x QSFP to 4x SFP+)
• Connector A: QSFP (40GBASE-CR4)
• Connector B: 4x SFP+ (10GBASE-CR)
• Data Rate: Aggregate 40 Gbps, per channel 10 Gbps
• Length: 3 meters (9.8 ft)
• Cable Material: Copper
• Impedance: 100 Ohm
• Jacket Material: PVC
• Hot-Swappable: Yes
• Compliance: RoHS, CE, FCC
• Product Series: BlueLAN

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected and that the equipment supports the respective standards. This cable is ideal for use within the same rack or between adjacent racks where cable management is critical. Always verify compatibility with your specific hardware before installation.
