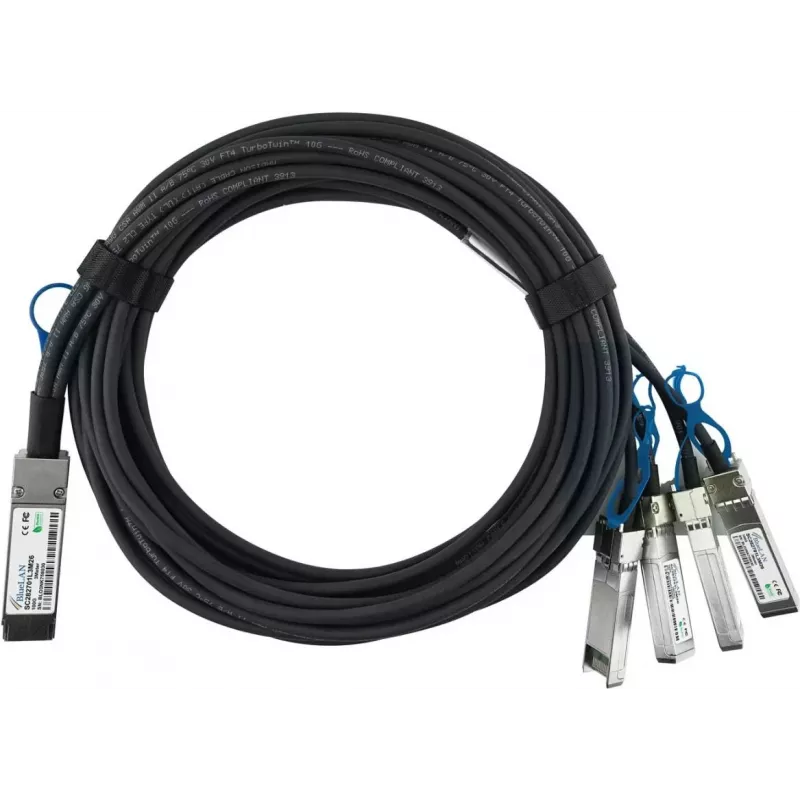

BlueOptics Extreme Networks EQPC1HPC030C01X4 Compatível BlueLAN Passivo 100GBASE-CR4 QSFP28 para 4x25GBASE-CR SFP28 Cabo Breakout Direct Attach, 3m, AWG26

The BlueOptics Extreme Networks EQPC1HPC030C01X4 compatible BlueLAN passive direct attach breakout cable is designed for high-performance data center and enterprise networks. It provides a cost-effective solution for connecting 100G QSFP28 ports to four 25G SFP28 ports, supporting 100GBASE-CR4 and 25GBASE-CR Ethernet standards.

Advantages

This breakout cable eliminates the need for separate transceivers and fiber cabling, reducing cost and complexity. It is fully compatible with Extreme Networks equipment and offers reliable, low-latency connectivity for high-bandwidth applications.

Suitable for

• Data center interconnects
• Server-to-switch connections
• High-performance computing environments
• Network upgrades requiring 100G to 25G breakout

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per channel)
• Ethernet Standard: 100GBASE-CR4 / 25GBASE-CR
• Length: 3 meters
• Wire Gauge: AWG26
• Power Type: Passive
• Hot-Swappable: Yes
• RoHS Compliant: Yes

Recommendations

This cable is ideal for network administrators looking to maximize port utilization and reduce cabling clutter. Ensure your equipment supports QSFP28 and SFP28 interfaces.
