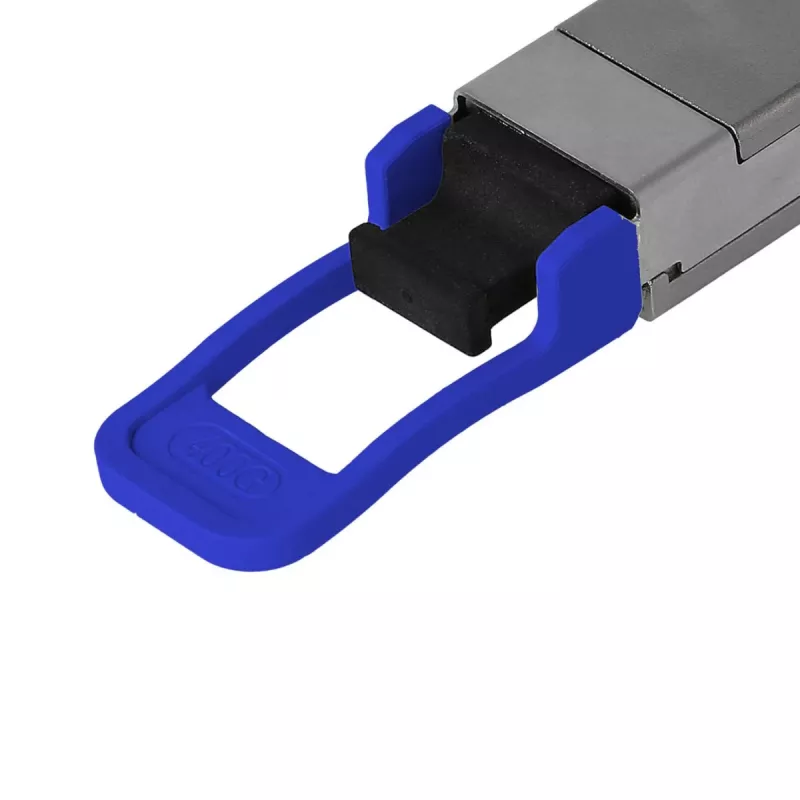

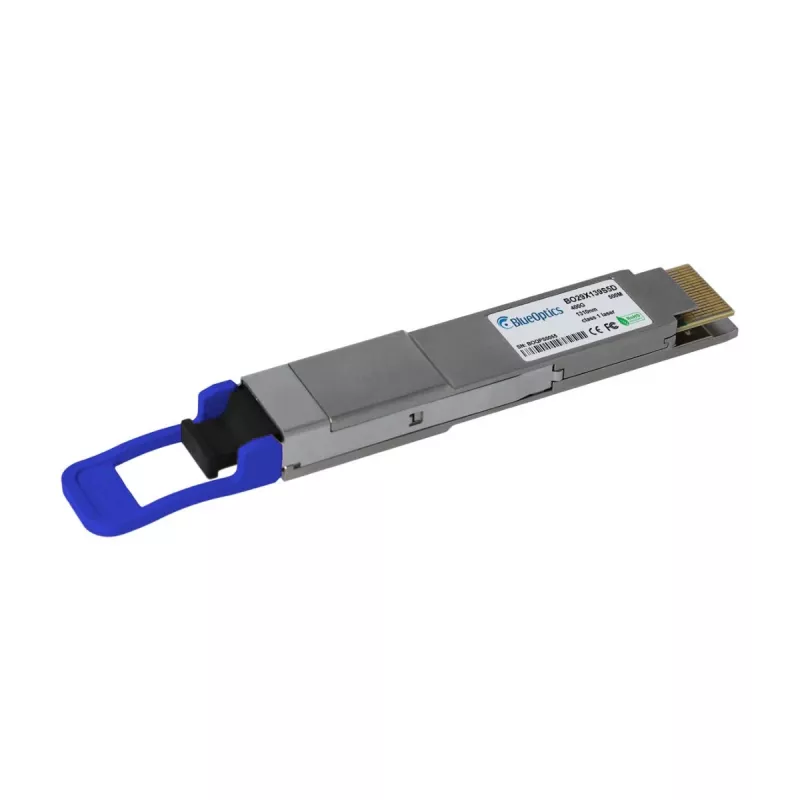

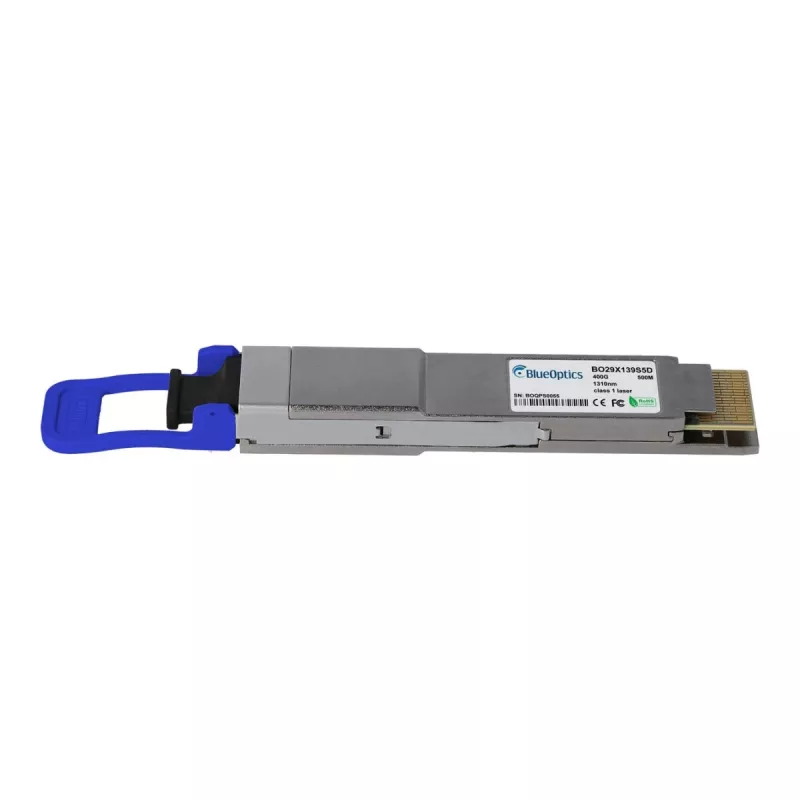

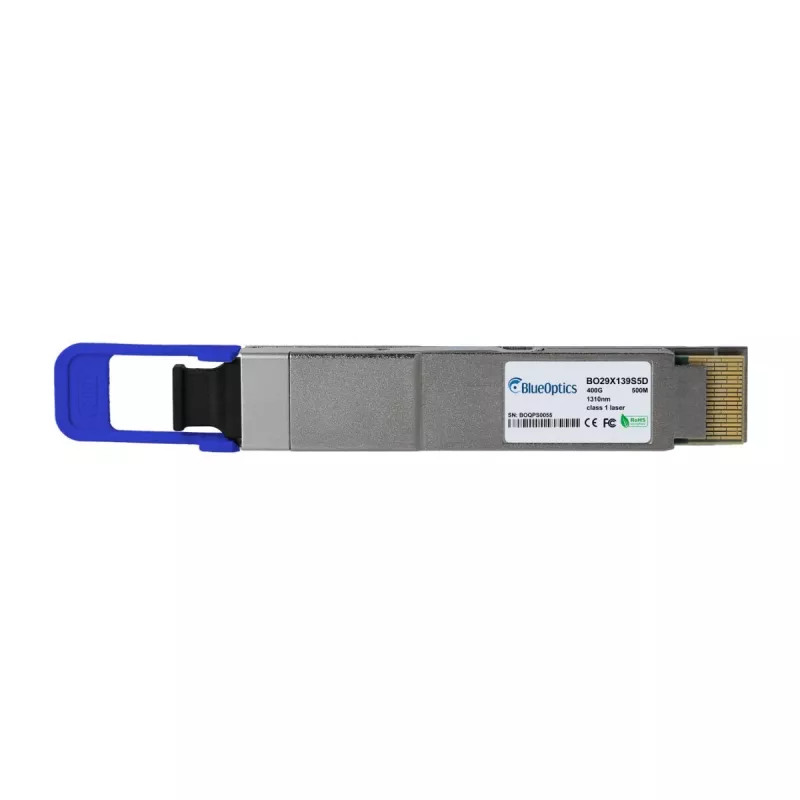

BlueOptics HPE M-Series R8M60B Transceptor QSFP-DD, MPO-12/MTP-12, 400GBASE-DR4, fibra monomodo, 1310nm EML, 500 metros

The BlueOptics HPE M-Series R8M60B QSFP-DD Transceiver is a high-performance optical module designed for 400 Gigabit Ethernet applications. It features a QSFP-DD form factor, MPO-12/MTP-12 connector, and supports singlemode fiber with a reach of up to 500 meters. This transceiver is compatible with HPE M-Series switches and is ideal for data center interconnects, high-performance computing, and enterprise networking.

Advantages

This transceiver offers high bandwidth and low latency, enabling efficient data transmission in demanding environments. Its hot-pluggable design allows for easy installation and maintenance without disrupting network operations. The integrated Digital Diagnostics Monitoring (DDM) provides real-time performance monitoring for proactive network management.

Suitable for

• Data Center Interconnects
• High-Performance Computing
• Enterprise Networking
• 400GBASE-DR4 Ethernet Networks

Key specifications

• Form Factor: QSFP-DD
• Data Rate: 400 Gbps (4 x 100 Gbps lanes)
• Ethernet Standard: 400GBASE-DR4
• Wavelength: 1310 nm
• Max Reach: 500 m
• Fiber Type: Singlemode Fiber (SMF)
• Connector Type: MPO-12/MTP-12
• Laser Type: EML
• Number of Channels: 4 Tx and 4 Rx
• Digital Diagnostics Monitoring (DDM): Supported
• Hot Pluggable: Yes
• Compatibility: HPE M-Series Compatible

Recommendations

Ensure your network equipment supports QSFP-DD modules and 400GBASE-DR4 standards. Use with singlemode fiber patch cables terminated with MPO-12 connectors for optimal performance.
