BlueOptics HPE P08300-001 cabo ótico ativo (AOC) QSFP56 compatível, 200GBASE-SR4, 5m

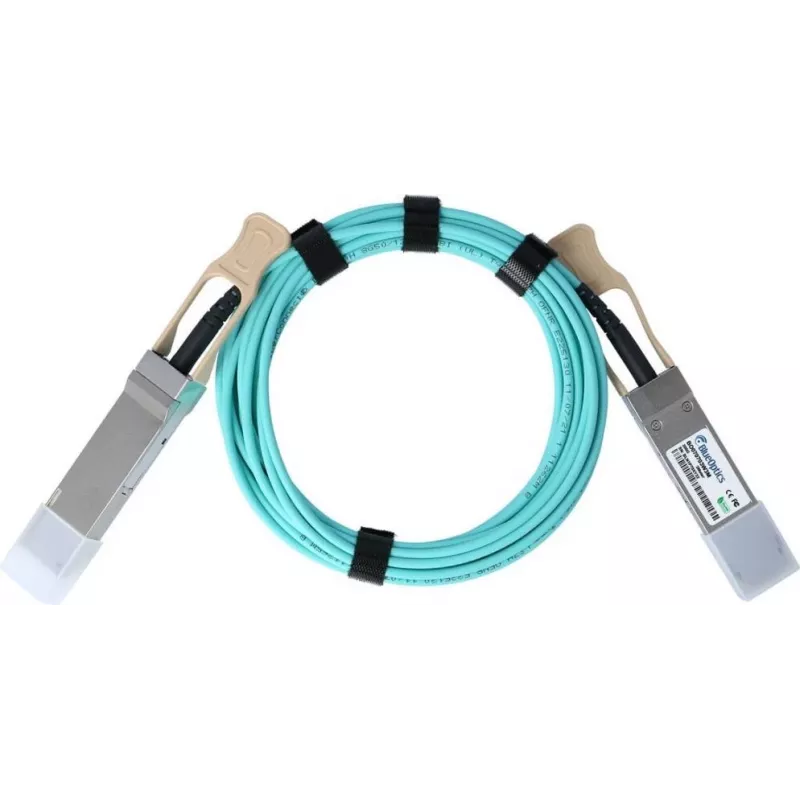

The BlueOptics BO070703W5M is a high-performance QSFP56 Active Optical Cable (AOC) designed for 200GBASE-SR4 applications. It provides a reliable, hot-pluggable connection for data centers and high-performance computing environments, supporting Ethernet and InfiniBand protocols over multi-mode fiber at 850 nm wavelength.

Advantages

This AOC offers low power consumption (<4.5 W), high data throughput (200 Gbps), and MSA compliance, ensuring interoperability with HPE P08300-001 compatible equipment. The VCSEL-based optical engine and PVC jacket deliver durability and signal integrity over the 5-meter length.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• 200GBASE-SR4 Ethernet and InfiniBand networks

Key specifications

• Product Type: Active Optical Cable (AOC)
• Form Factor: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Optical Standard: 200GBASE-SR4
• Cable Length: 5 meters
• Fiber Type: Multi-mode Fiber (MMF)
• Wavelength: 850 nm
• Number of Lanes: 4 Tx / 4 Rx
• Power Consumption: <4.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC
• Signaling Protocol: PAM4
• Jacket Material: PVC

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 and 200GBASE-SR4. This cable is a direct replacement for HPE P08300-001 and is ideal for short-reach, high-bandwidth connections within racks or adjacent racks.
