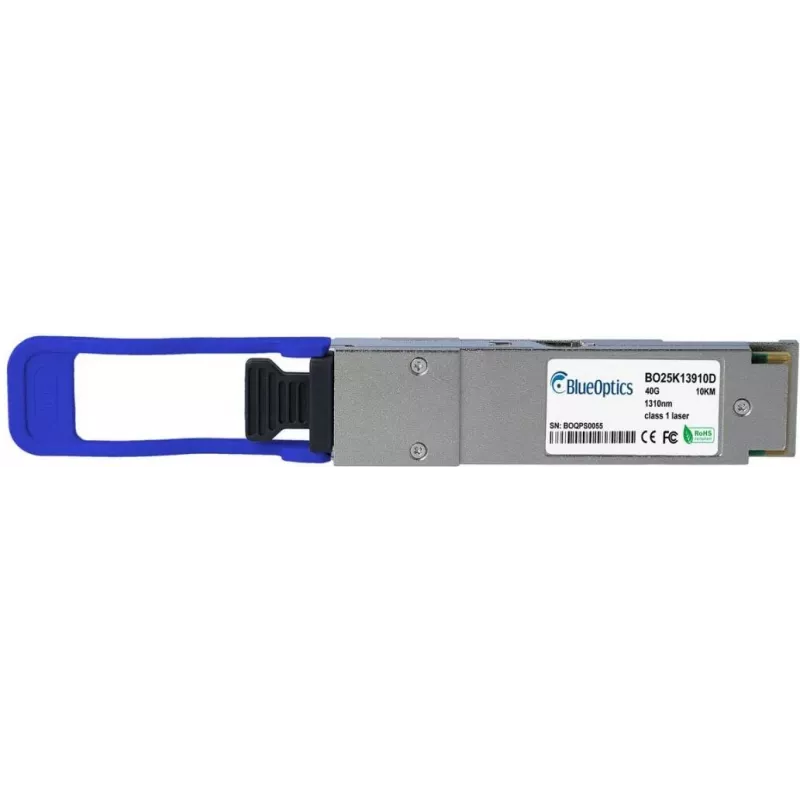

BlueOptics Huawei QSFP-40G-eSM4 Transceptor QSFP compatível, 40GBASE-PLR4, fibra monomodo, 1310nm, 10km, MPO/MTP, 0°C a +70°C

The BlueOptics QSFP-40G-eSM4-BO is a high-performance, cost-effective QSFP transceiver module designed for 40 Gigabit Ethernet applications. It is fully compatible with Huawei QSFP-40G-eSM4 switches and routers, offering a reliable solution for data center and enterprise networking.

Advantages

This transceiver delivers exceptional performance with low power consumption (<3.5W) and supports hot-plug capability, minimizing network downtime. It is MSA compliant, ensuring interoperability with a wide range of networking equipment. The 10km reach over singlemode fiber makes it ideal for campus and metropolitan area networks.

Suitable for

• Data center interconnects
• Enterprise network backbone
• 40GBASE-PLR4 Ethernet links
• Huawei networking equipment requiring QSFP-40G-eSM4 optics

Key specifications

• Form Factor: QSFP
• Data Rate: 40 Gbps
• Ethernet Protocol: 40GBASE-PLR4
• Wavelength: 1310 nm
• Max Reach: 10 km
• Fiber Type: Singlemode Fiber (SMF)
• Connector Type: MPO/MTP
• Operating Temperature: 0°C to +70°C
• Digital Diagnostics Monitoring (DDM): Yes
• Hot-Pluggable: Yes
• Power Supply Voltage: 3.3 V
• Power Consumption: <3.5 W
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with singlemode fiber optic cables terminated with MPO/MTP connectors. Ensure your network equipment supports 40GBASE-PLR4 standard and QSFP form factor.
