BlueOptics IBM 01FT724 cabo ótico ativo (AOC) QSFP28, 100GBASE-SR4, 10m

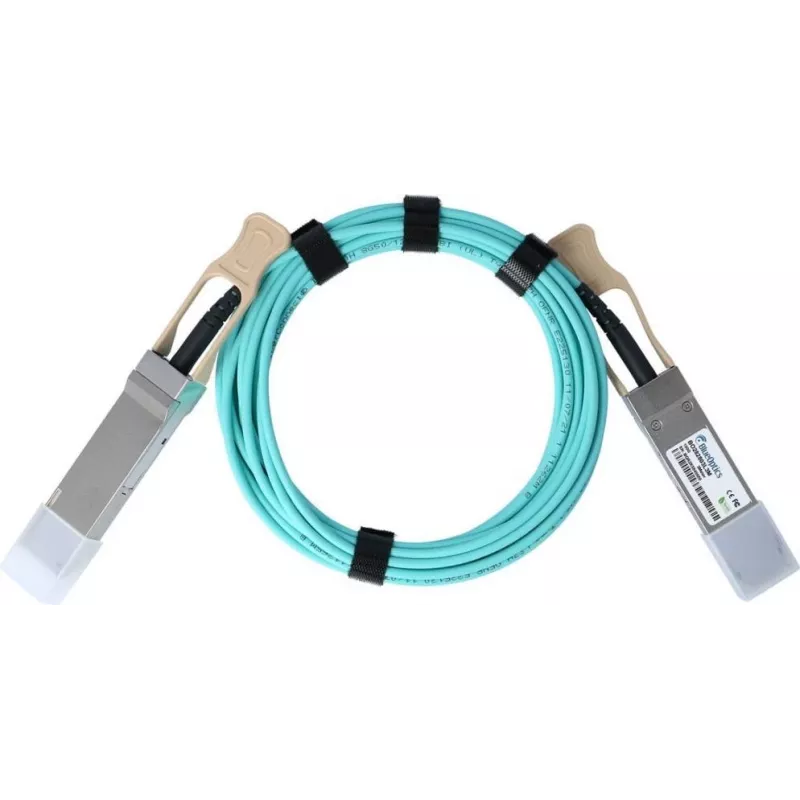

The BlueOptics IBM 01FT724 QSFP28 Active Optical Cable (AOC) is a high-performance, cost-effective solution for 100 Gigabit Ethernet and InfiniBand connectivity. Designed to be compatible with IBM 01FT724, this plug-and-play cable integrates QSFP28 transceivers at both ends, eliminating the need for separate optics and fiber patch cables. It delivers reliable, low-latency data transmission over multimode fiber at distances up to 10 meters, making it ideal for data center interconnects and high-performance networking environments.

Advantages

This AOC offers significant advantages over traditional transceiver and cable assemblies. It reduces installation complexity, minimizes signal loss, and ensures consistent performance. The hot-swappable design allows for easy deployment and maintenance without network downtime. With low power consumption (typically less than 4.5W) and full MSA compliance, it provides a future-proof solution for high-speed networks.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network backbone links
• Storage area networks (SAN)
• InfiniBand environments

Key specifications

• Product Type: Active Optical Cable (AOC)
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-SR4
• Connector Type: QSFP28 (both ends)
• Cable Length: 10 meters
• Fiber Type: Multimode Fiber (MMF)
• Wavelength: 850 nm
• Form Factor: QSFP28
• Hot-Swappable: Yes
• MSA Compliant: Yes
• Power Consumption: < 4.5 W (typical)
• Supply Voltage: 3.3 V
• Protocol Support: Ethernet, InfiniBand
• Duplex Mode: Full-Duplex
• Compatibility: IBM 01FT724
• Electrical Interface: CAUI-4
• Optical Lanes: 4 Tx, 4 Rx

Recommendations

For optimal performance, ensure that your network equipment supports QSFP28 modules and 100GBASE-SR4 standards. This cable is designed for indoor use in controlled environments. Avoid excessive bending or pulling to maintain signal integrity.
