BlueOptics NetApp X50210A Transceptor QSFP28 compatível, 100GBASE-DR, fibra monomodo, 1310nm, PAM4, 500m, DDM/DOM, 0-70°C (X50210A-BO)

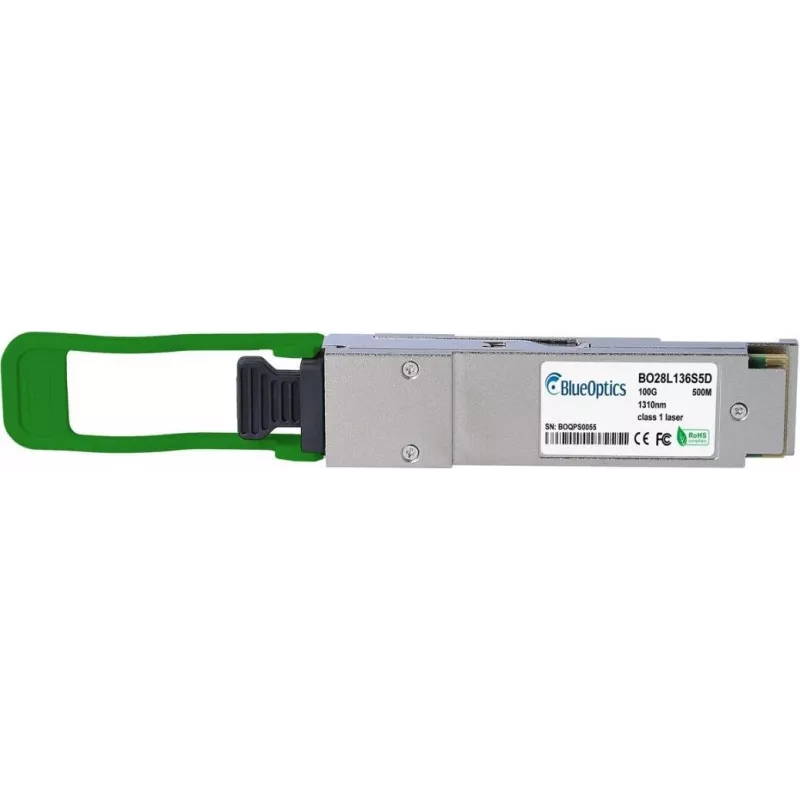

The BlueOptics BO28L136S5D is a high-performance QSFP28 optical transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with NetApp X50210A systems and offers reliable connectivity for data center and enterprise networks. This transceiver supports 100GBASE-DR standard over singlemode fiber, utilizing PAM4 modulation to achieve a reach of up to 500 meters. With built-in DDM/DOM functionality, real-time monitoring of optical parameters is enabled. The module operates over a temperature range of 0°C to +70°C and is hot-pluggable for easy installation.

Advantages

This transceiver ensures seamless integration with NetApp equipment, providing cost-effective and high-speed connectivity. Its low power consumption and robust design make it ideal for demanding network environments. The DDM/DOM support allows for proactive network management and troubleshooting.

Suitable for

• Data center interconnects
• Enterprise network uplinks
• 100 Gigabit Ethernet links
• NetApp storage systems

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-DR
• Wavelength: 1310 nm
• Modulation: PAM4
• Max Reach: 500 m
• Fiber Type: Singlemode (OS2)
• Connector: LC Duplex
• DDM/DOM: Yes
• Operating Temperature: 0°C to +70°C
• Hot-Pluggable: Yes

Recommendations

For optimal performance, use with singlemode fiber patch cables (OS2) and ensure proper cleaning of optical connectors. This transceiver is a direct replacement for NetApp X50210A and is backed by BlueOptics quality assurance.
