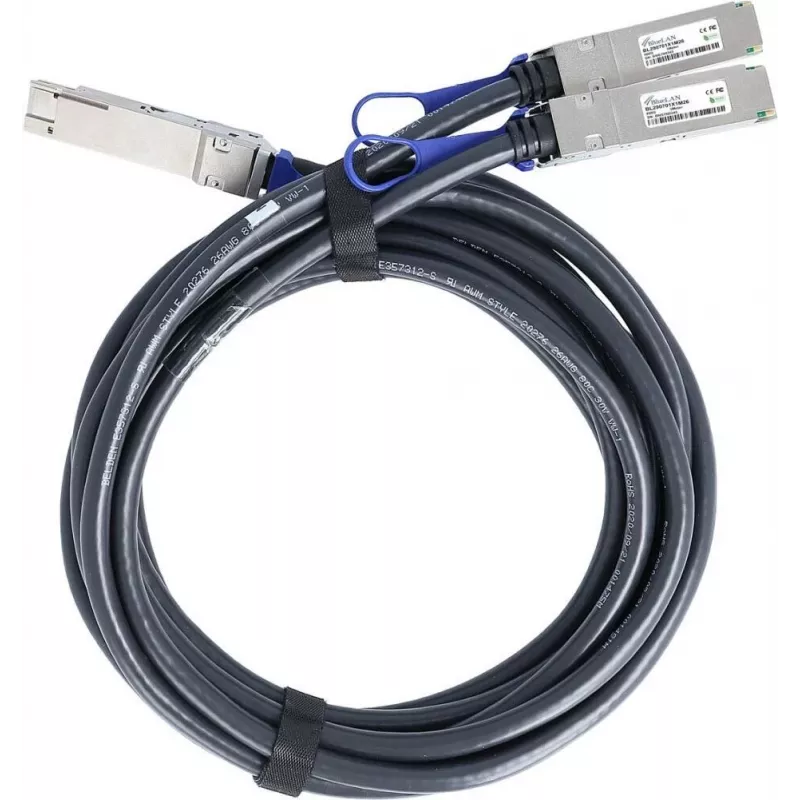

BlueOptics NVIDIA 980-9I48Z-00W002 BlueLAN Cabo Breakout QSFP-DD para 2x200GBASE-CR4 QSFP56 Direct Attach Passivo 400GBASE-CR8, 2 metros

The BlueOptics NVIDIA 980-9I48Z-00W002 BlueLAN passive 400GBASE-CR8 QSFP-DD to 2x200GBASE-CR4 QSFP56 Direct Attach Breakout Cable is a high-performance, cost-effective solution for data center and high-performance computing (HPC) environments. This breakout cable enables a single 400G QSFP-DD port to connect to two 200G QSFP56 ports, providing flexible network architecture and efficient bandwidth utilization. With a length of 2 meters, it is ideal for short-range interconnects within racks or adjacent racks.

Advantages

This Direct Attach Cable (DAC) offers a reliable and low-latency connection without the need for optical transceivers, reducing power consumption and cost. The passive design ensures zero power draw from the host equipment, making it an energy-efficient choice. The breakout configuration simplifies cabling and supports high-density deployments, maximizing port utilization and reducing cable clutter.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Networking equipment with QSFP-DD and QSFP56 ports
• Short-range, high-speed connections within racks

Key specifications

• Cable Type: Direct Attach Cable (DAC), Breakout
• Aggregate Data Rate: 400 Gbps
• Connector A: QSFP-DD (400GBASE-CR8)
• Connector B: 2x QSFP56 (200GBASE-CR4)
• Cable Length: 2 Meters
• Cable Design: Passive
• Cable Material: Twinax Copper
• Impedance: 100 Ohm
• Power Consumption: < 0.5W
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Hot-Pluggable: Yes

Recommendations

This cable is designed for use with NVIDIA networking equipment and is fully compatible with the specified MPN. Ensure your devices support QSFP-DD and QSFP56 interfaces. For optimal performance, use within the specified temperature range and avoid sharp bends.
