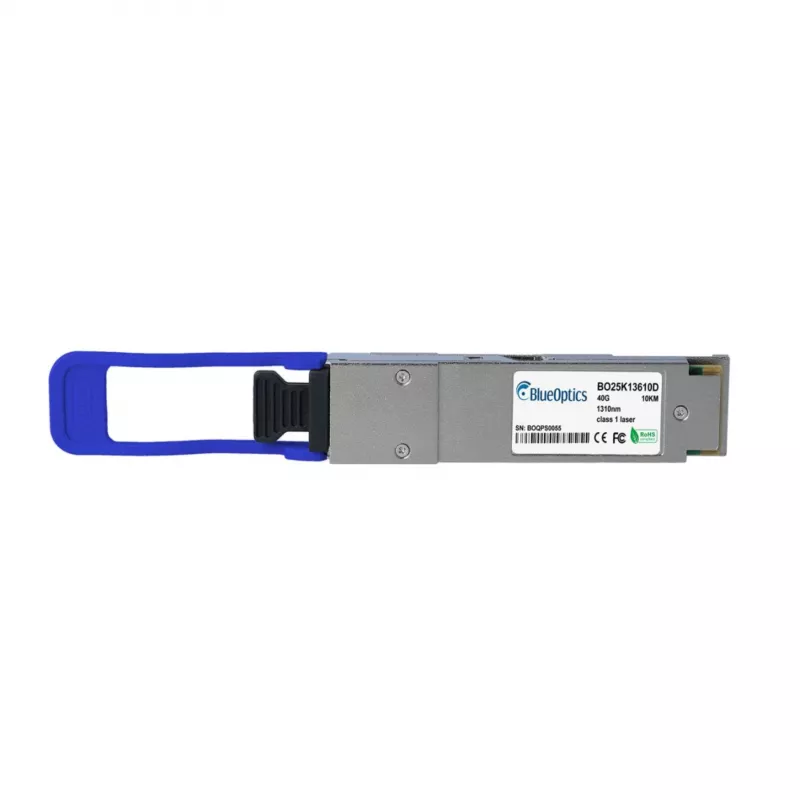

BLUEOPTICS QSFP-40G-LR4-TL-BO Módulo transceptor de rede 40 Gbps 10 km fibra monomodo duplex LC

The BLUEOPTICS QSFP-40G-LR4-TL-BO is a high-performance 40GBASE-LR4 QSFP+ transceiver module designed for 40 Gigabit Ethernet applications over single-mode fiber. It is fully compatible with TP-Link and other MSA-compliant switches and routers, offering reliable connectivity for data centers, enterprise networks, and telecommunications.

Advantages

This transceiver delivers cost-effective 40G connectivity with low power consumption (<3.5W) and hot-pluggable design for easy installation and maintenance. It supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Suitable for

• Data center interconnects
• Enterprise network backbone
• Telecommunications infrastructure
• 40GBASE-LR4 Ethernet links up to 10 km

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Protocol: 40GBASE-LR4
• Connector: Duplex LC
• Fiber Type: Single-Mode (OS2)
• Max Reach: 10 km
• Wavelengths: 1271nm, 1291nm, 1311nm, 1331nm (LAN WDM)
• Power Consumption: <3.5 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM/DOM: Supported
• Compliance: MSA Compliant

Recommendations

For optimal performance, use with OS2 single-mode fiber patch cables and ensure proper cleaning of optical connectors. This module is ideal for upgrading 10G links to 40G in existing fiber infrastructure.
