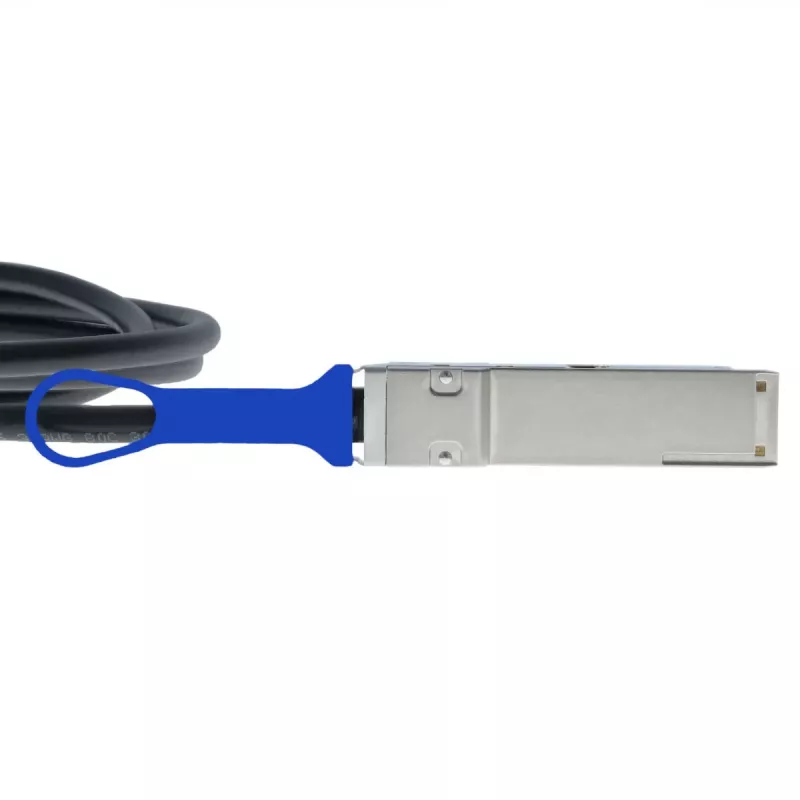

BlueOptics Ruckus E100G-QSFP-4SFP-P-0301 Compatível BlueLAN QSFP28 DAC 3m

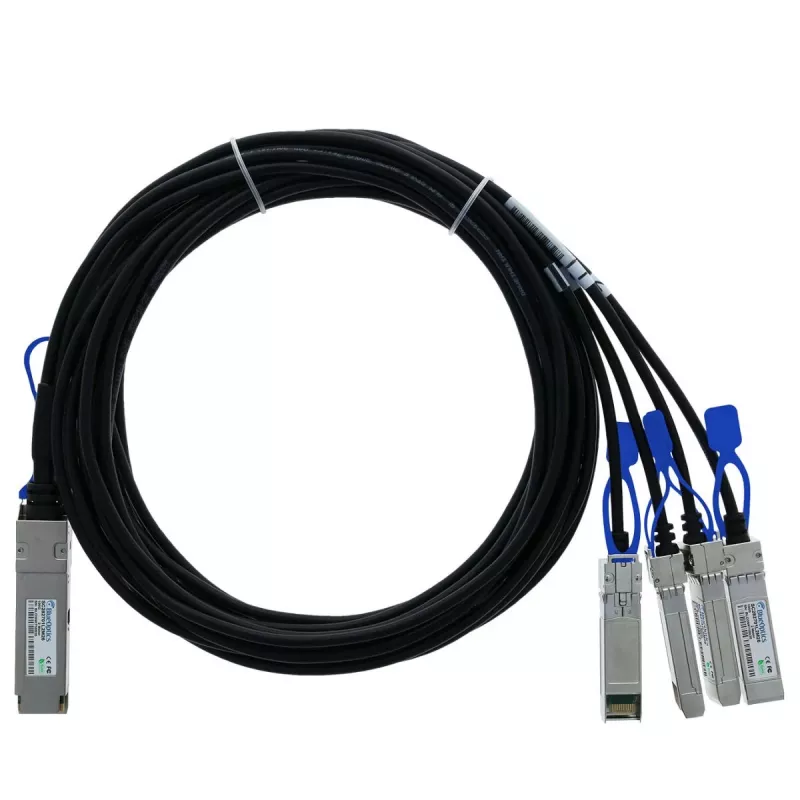

The BlueOptics Ruckus E100G-QSFP-4SFP-P-0301 Compatible BlueLAN QSFP28 DAC is a high-performance direct attach copper cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. This breakout cable converts a single QSFP28 port into four SFP28 ports, each supporting 25 Gbps, providing a cost-effective and reliable solution for data center interconnects and high-performance computing environments.

Advantages

This DAC cable offers low power consumption (<0.5W per end), hot-pluggable connectivity, and full compliance with IEEE 802.3bj and SFF standards. Its passive copper design ensures minimal latency and maximum signal integrity for short-reach connections up to 3 meters.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise networking with Ruckus, Mellanox, Cisco, Juniper, Arista, HP, Dell, and other compatible switches

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector A: QSFP28 Male
• Connector B: 4x SFP28 Male
• Total Data Rate: 100 Gbps
• Data Rate per Channel: 25 Gbps
• Cable Length: 3 meters (9.84 ft)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Standards: IEEE 802.3bj, SFF-8665, SFF-8636, SFF-8402
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your equipment supports QSFP28 to 4x SFP28 breakout configurations. This cable is ideal for 100G to 4x25G breakout applications. Verify compatibility with your specific switch model before purchase.
