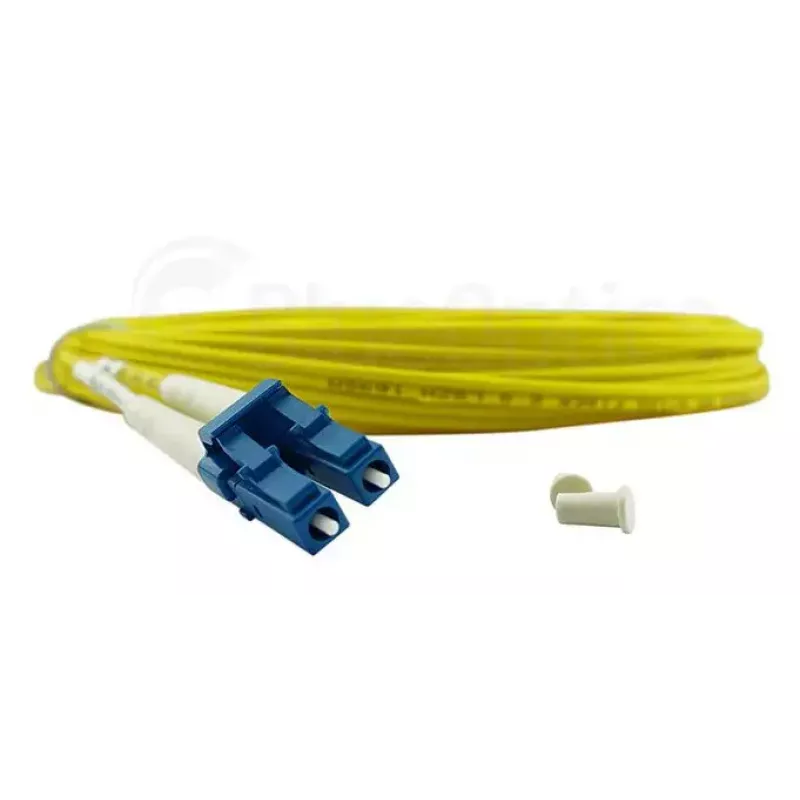

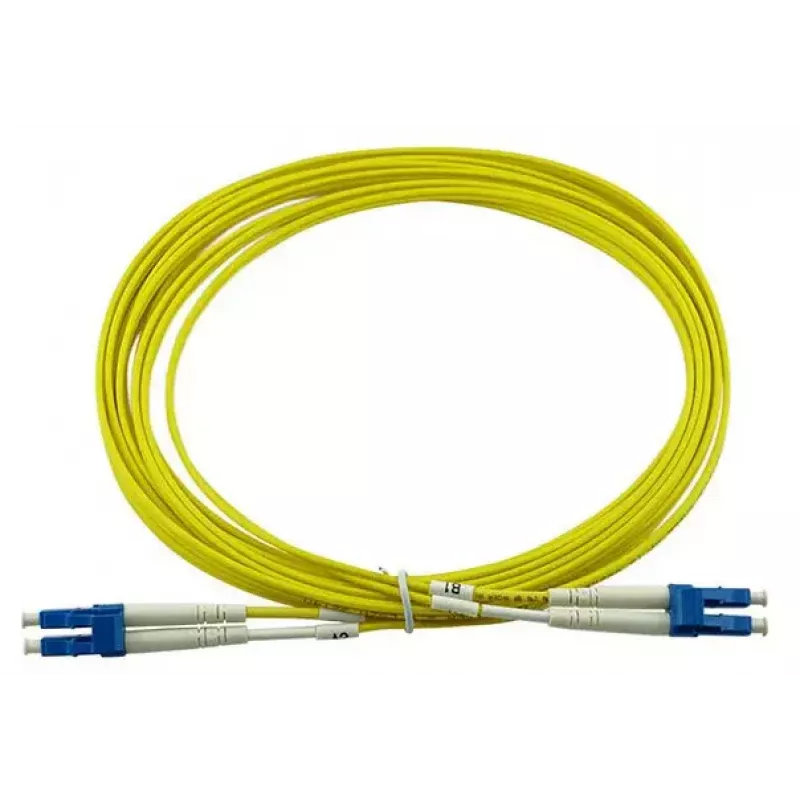

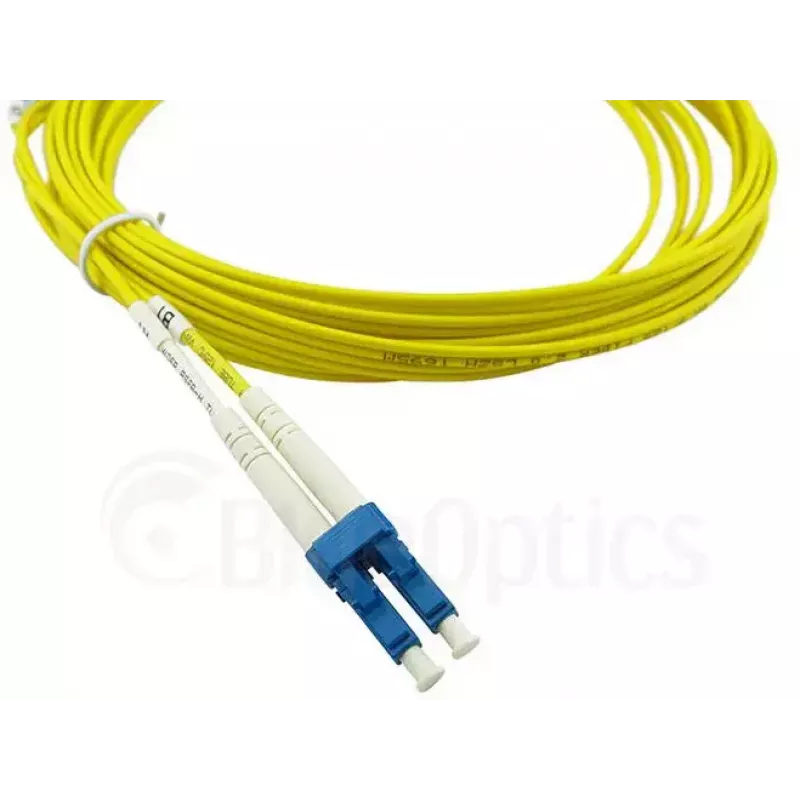

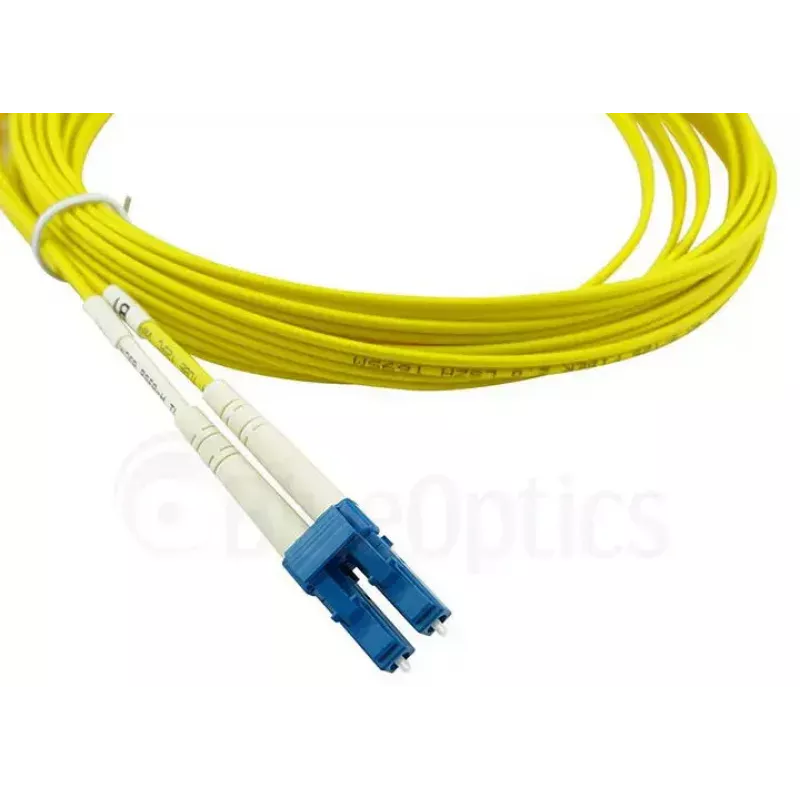

BlueOptics SFP3131BU10MK cabo de fibra ótica InfiniBand 10 m LC amarelo

The BlueOptics SFP3131BU10MK InfiniBand Fibre Optic Cable 10 m LC Yellow is a 10‑meter single‑mode duplex patch cord with LC/UPC connectors and G.657.A1 (E9/125 µm) laser‑optimized fibre. It is designed for full‑duplex high‑speed data links, supporting transmission windows around 1310 nm and 1550 nm. The cable features a yellow LSZH jacket for reduced smoke and no halogen release in case of fire and is intended for use with patch panels, optical transceivers and InfiniBand equipment requiring single‑mode LC connections.

Advantages

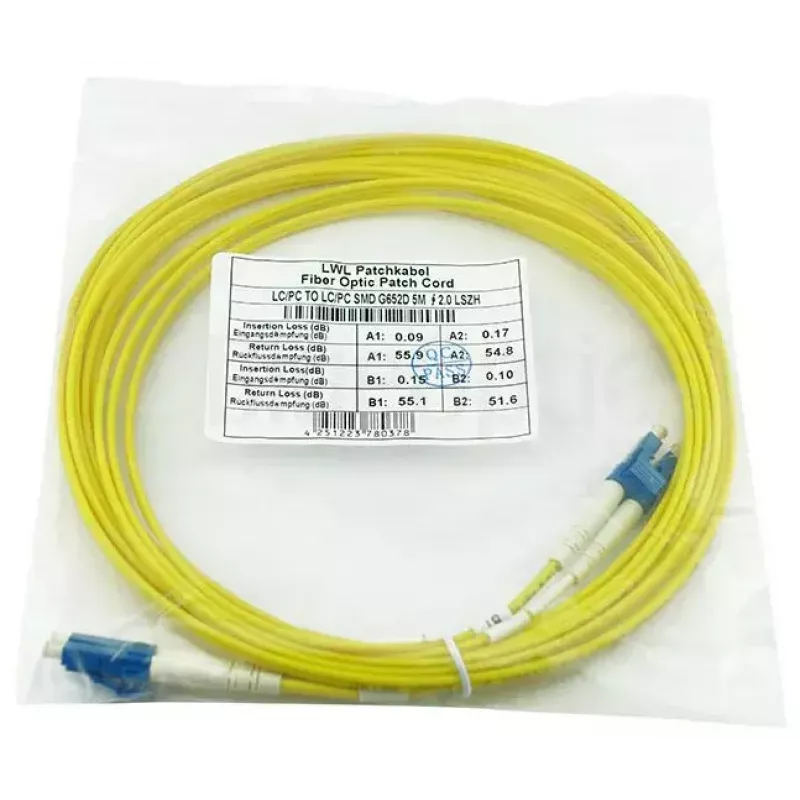

The cable uses single‑mode G.657.A1 fibre for low attenuation and effective bending performance in confined routing environments. Connectors employ zirconia ceramic ferrules for consistent alignment and long mating life, and each assembly is factory‑tested with interferometry and OTDR to provide measured insertion loss and return loss data. The LSZH jacket meets common industrial flame and safety standards while keeping cable diameter and flexibility suitable for rack and data‑centre cabling.

Suitable for

Key specifications

How to use

Inspect connector endfaces before use and remove protective dust caps. Route the fibre cable without tight bends and secure it with appropriate cable management to avoid microbending. Insert the LC connectors into the transceiver or patch panel ports until they latch. For best performance, verify link loss using appropriate test equipment and compare against the supplied measurement protocol. When disconnecting, press the LC latch and pull on the connector body rather than on the cable.

Recommendations

Store and handle the cable according to standard fibre‑optic practices: avoid exceeding the specified minimum bend radius for G.657.A1 fibre, keep connectors clean, and use dust caps when not connected. Match connector polish (UPC or APC) and transceiver requirements to minimise return loss. For permanent installations use cable trays or conduits and avoid mechanical stress from sharp edges.
