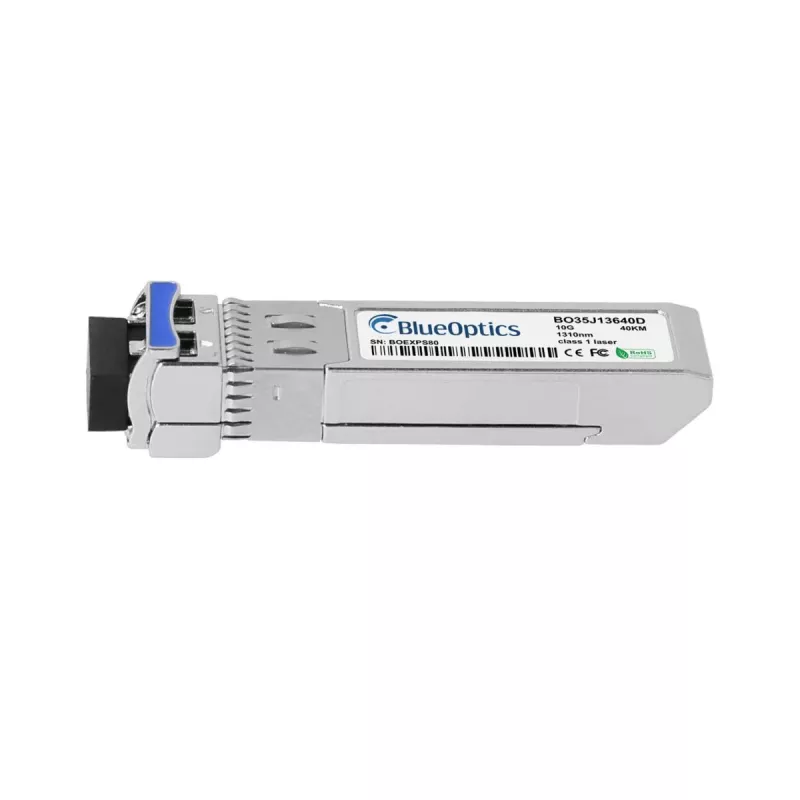

BLUEOPTICS Transceptor SFP+ compatível com TP-Link SFP-10G-ER-1310 40 km 1310 nm LC monomodo

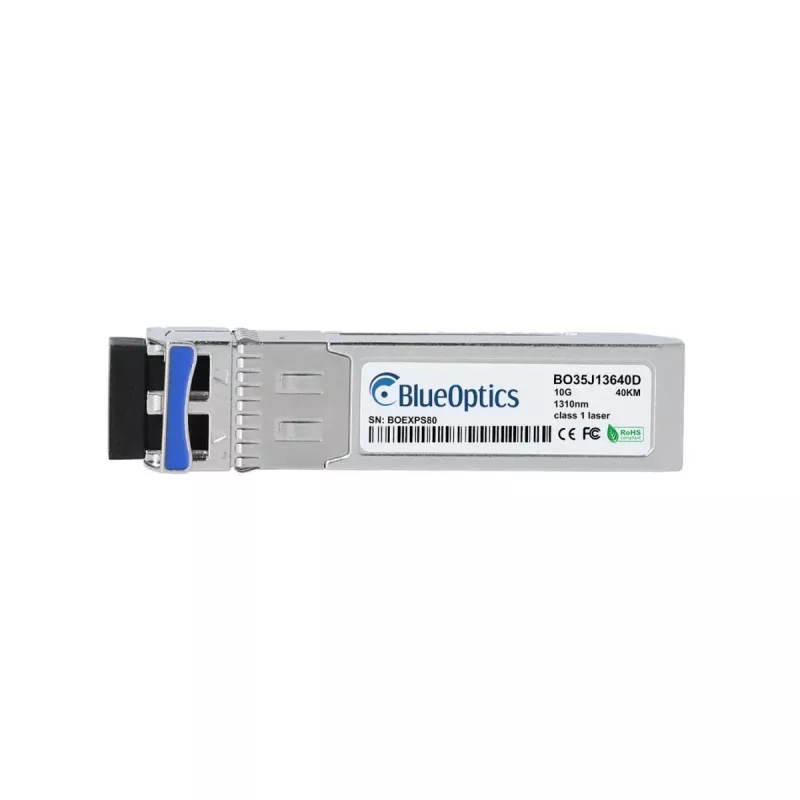

The BLUEOPTICS SFP-10G-ER-1310-TL-BO is a high-performance SFP+ transceiver designed for 10 Gigabit Ethernet applications. Fully compatible with TP-Link SFP-10G-ER-1310 equipment, this module delivers reliable connectivity over single-mode fiber at distances up to 40 km. It operates at a wavelength of 1310 nm and features an LC duplex connector, making it ideal for long-haul data transmission in enterprise and service provider networks.

Advantages

This transceiver offers cost-effective compatibility with TP-Link systems without compromising performance. It supports Digital Diagnostic Monitoring (DDM) for real-time monitoring of optical parameters, ensuring network stability and ease of troubleshooting. With low power consumption (<1.0 W) and a wide operating temperature range (0°C to 70°C), it is suitable for demanding environments.

Suitable for

• 10 Gigabit Ethernet connections over single-mode fiber
• Long-distance links up to 40 km
• Data centers, enterprise networks, and telecommunications
• Replacement or expansion of TP-Link SFP-10G-ER-1310 modules

Key specifications

• Data Rate: 10.3125 Gbps (10GbE)
• Wavelength: 1310 nm
• Maximum Distance: 40 km
• Fiber Type: Single-Mode (OS2)
• Connector: LC Duplex
• Transmitter: DFB Laser
• Receiver: PIN
• Optical Power (Tx): 0 to +5 dBm
• Receiver Sensitivity: -24 dBm
• Power Consumption: <1.0 W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• Standards: MSA Compliant, IEEE 802.3ae 10GBASE-ER/EW

Recommendations

For optimal performance, use with single-mode fiber (OS2) and ensure proper cleaning of LC connectors. This transceiver is hot-pluggable and can be installed without powering down the system. Verify compatibility with your TP-Link device before installation.
