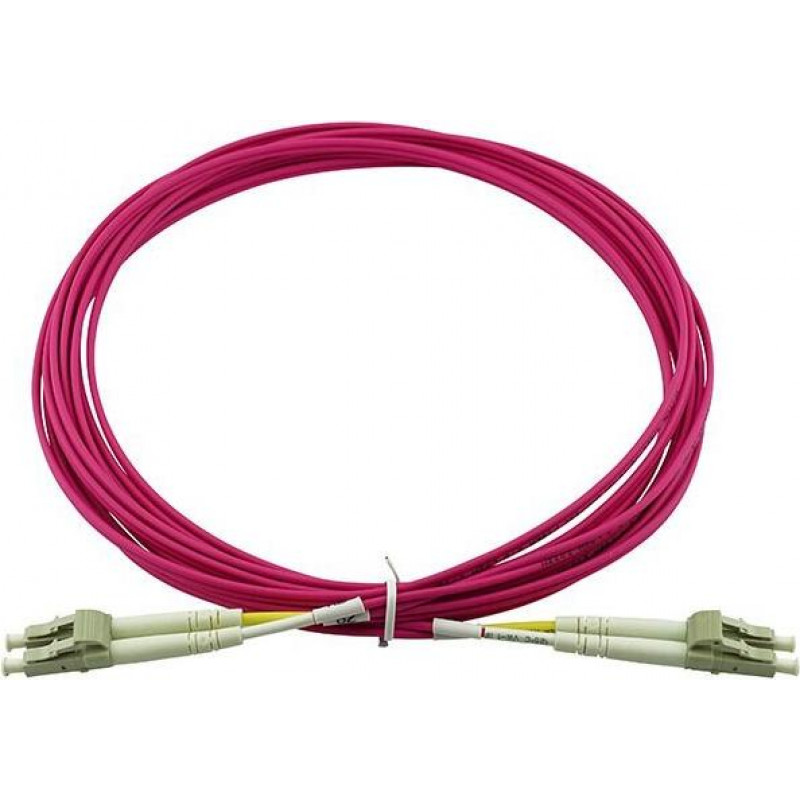

BlueOptics Ubiquiti UACC-OFC-M2-LULU-20M cabo de patch LC-LC multimodo OM4 20 metros

High-speed fiber links often fail due to poor cable quality or mismatched specifications. The BlueOptics UACC-OFC-M2-LULU-20M eliminates these risks with a factory-terminated OM4 multimode duplex patch cable built for Ubiquiti UniFi deployments. At 20 meters, it bridges racks, connects switches to distribution points, and supports 10G/40G/100G Ethernet over 50/125µm laser-optimized fiber. The aqua LSZH jacket meets strict fire safety codes, while LC PC connectors ensure low insertion loss and stable return loss for error-free transmission.

Who is it for

Network engineers, data center technicians, and IT integrators deploying Ubiquiti UniFi switches, routers, or fiber modules. Ideal for 10G/40G/100G backbone links, SAN connections, or high-density patching where reliability and bend resistance matter. The 20m length suits cross-rack or same-row connections without excess slack.

Main features

• OM4 multimode fiber supports 10G up to 400m, 40G/100G up to 150m
• Duplex LC to LC connectors with PC polish for low insertion loss (<0.3 dB)
• LSZH jacket in aqua for easy identification and low smoke/toxicity
• 50/125µm core/cladding with laser-optimized performance
• Bend-insensitive design with 30mm minimum bend radius
• RoHS and CE compliant, TIA/EIA-568-C.3 compatible
• Operating temperature -20°C to 70°C, storage -40°C to 85°C

Specifications

• Cable type: Fiber optic patch cable, multimode OM4
• Connector A/B: LC PC duplex
• Length: 20 meters
• Jacket: LSZH, aqua
• Insertion loss: <0.3 dB
• Return loss: >30 dB
• Core/cladding: 50/125 µm
• Minimum bend radius: 30 mm
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C
• Compliance: RoHS, CE, TIA/EIA-568-C.3

Tips

Pair with Ubiquiti UF-MM-10G or compatible SFP+ modules for plug-and-play 10G links. Avoid exceeding the bend radius during installation; use cable managers to maintain signal integrity. For permanent installations, label both ends to simplify future troubleshooting.
