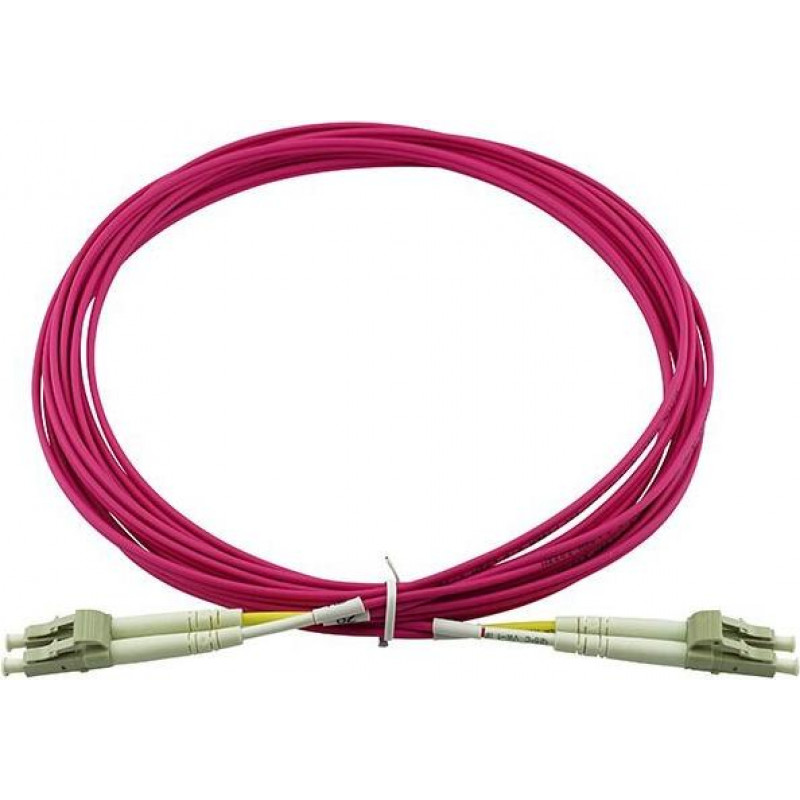

BlueOptics Ubiquiti UACC-OFC-M2-LULU-30M cabo de ligação LC-LC multimodo OM4 30 metros

Data center technicians and network engineers often face the challenge of maintaining high-speed, reliable connections in dense fiber environments. The BlueOptics Ubiquiti UACC-OFC-M2-LULU-30M solves this with a 30-meter LC-LC duplex multimode OM4 patch cable, engineered for 40/100 Gigabit Ethernet over short to medium distances. Its aqua LSZH jacket and precision-polished connectors ensure low insertion loss and high return loss, making it a dependable choice for backbone links, server-to-switch connections, and storage area networks.

Key specifications

• Fiber type: Multi-mode OM4, 50/125 µm core/cladding
• Connectors: LC to LC, duplex, with A-B polarity
• Length: 30 meters
• Jacket: Aqua LSZH (Low Smoke Zero Halogen), 3.0 mm diameter
• Insertion loss: < 0.3 dB typical; return loss: > 30 dB
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to 70°C
• Compliance: RoHS, CE

Why choose it

OM4 fiber supports 10G, 40G, and 100G Ethernet up to 400 meters at 850 nm, giving you headroom for future upgrades. The LSZH jacket emits low smoke and zero halogen in case of fire, enhancing safety in confined spaces. Factory-terminated and tested connectors reduce installation time and ensure consistent performance, while the aqua color aligns with industry standards for OM4 identification.

Ideal use cases

• Connecting servers to top-of-rack switches in data centers
• Extending fiber links between patch panels in structured cabling
• High-speed storage area networks (SAN) and network-attached storage (NAS)
• Backbone connections between floors or buildings within a campus

Good to know

This cable is compatible with Ubiquiti UACC-OFC-M2-LULU series and any standard LC multimode ports. The duplex clip can be separated for simplex use if needed. For best performance, avoid tight bends below the minimum bend radius (typically 30 mm for 3.0 mm patch cables) and protect connectors with dust caps when not in use. The A-B polarity ensures proper transmit/receive alignment in duplex links.
