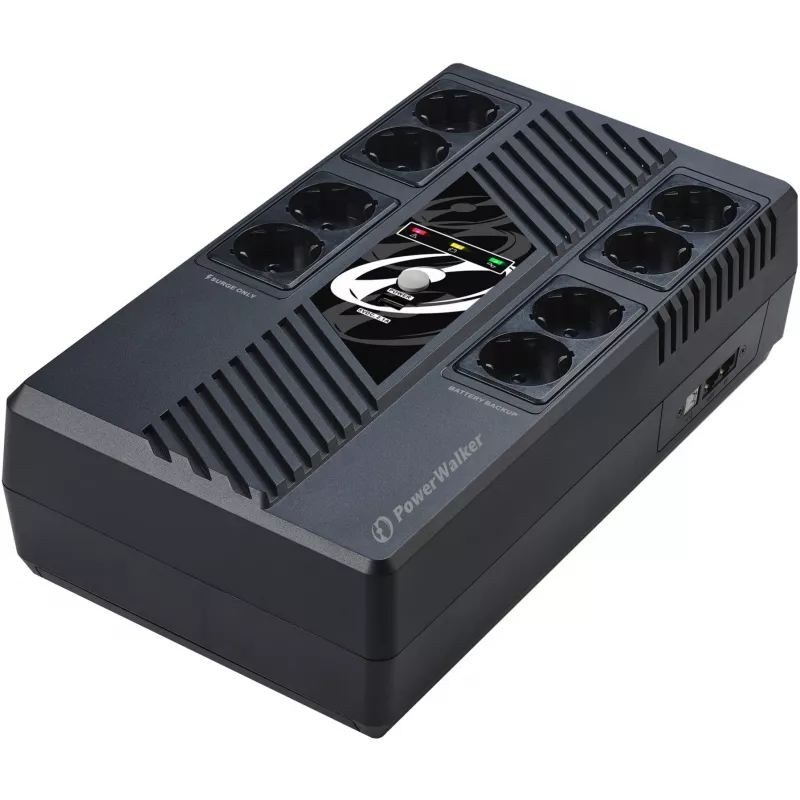

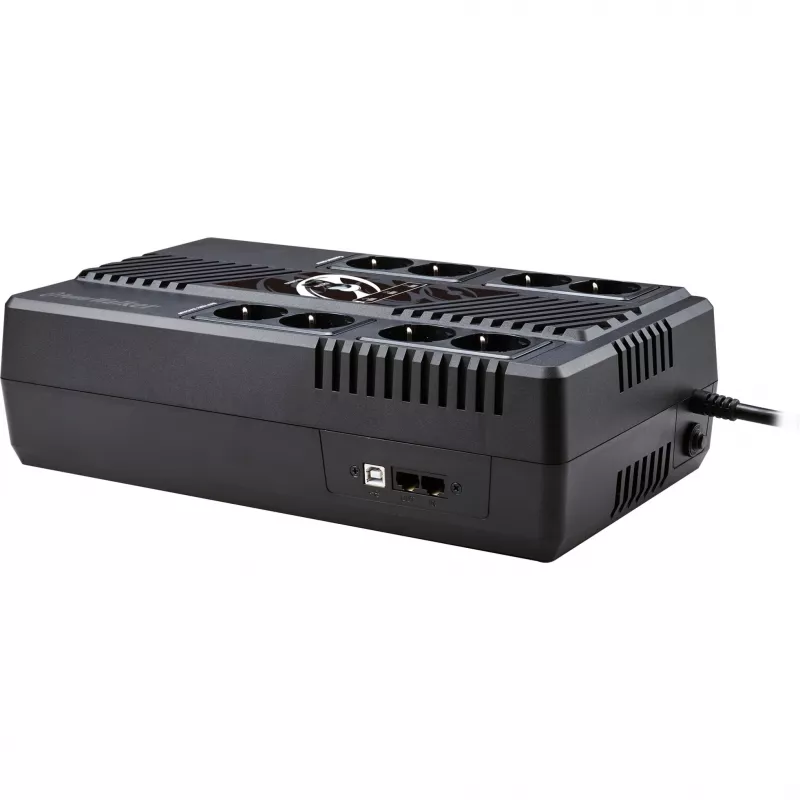

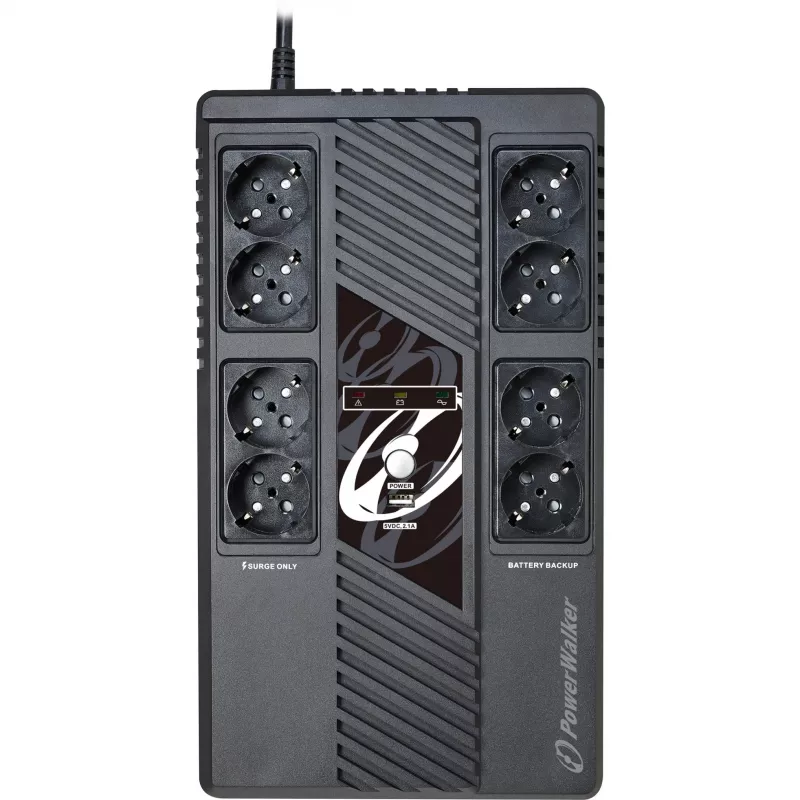

Fonte de alimentação ininterrupta PowerWalker VI 1000 MS

The PowerWalker VI 1000 MS is a line-interactive uninterruptible power supply (UPS) with a capacity of 1 kVA (600 W) and eight Type F AC outlets. Four of the sockets provide battery backup for critical loads while four sockets offer bypass power for non-critical loads. Integrated AVR (Automatic Voltage Regulation) stabilises output voltage during fluctuations. The unit supports USB communication for monitoring and control and includes a 2.1A USB charging port. The compact design allows desktop placement or wall mounting, and the battery compartment is accessible via the back panel for easy replacement.

Advantages

The VI 1000 MS combines line-interactive voltage regulation with separate battery-backed and bypass outlets to protect essential equipment while keeping non-critical devices powered. Its eight AC outlets give flexibility for mixed-load setups, and USB/HID support enables monitoring without additional drivers. Passive cooling and a replaceable 9 Ah battery simplify maintenance and reduce noise. The integrated 2.1A USB charging port adds convenience for charging mobile devices.

Suitable for

• Home office setups and desktop workstations
• Small office equipment such as NAS, routers and modems
• Critical peripheral protection (PC, monitor, external drives)
• Environments requiring mixed critical and non-critical outlets

Key specifications

• Output power capacity: 1 kVA (600 W)
• AC outlets: 8 Type F (4 battery-backed, 4 bypass)
• Battery: 9 Ah (replaceable, accessible from rear panel)
• Interfaces: USB (HID) and RS-232 for monitoring and control
• USB charging port: 2.1 A
• Cooling: passive
• Weight: 6.4 kg
• Colour: Black

How to use

Place the UPS on a stable surface or mount it to a wall following the included mounting instructions. Connect critical devices to the battery-backed outlets and non-critical equipment to the bypass outlets. Connect the UPS to mains power; the unit will charge its battery automatically. For monitoring and graceful shutdown, connect the UPS to a computer via USB or RS-232 and install compatible monitoring software if required. Replace the battery through the rear access when end-of-life is indicated.

Recommendations

Connect only devices within the 600 W output rating and avoid overloading the UPS. Regularly test the battery and replace it with the manufacturer-specified 9 Ah battery when capacity decreases. Use the dedicated battery-backed outlets for equipment needing uninterrupted power and the bypass outlets for printers or other non-critical loads.
