Fonte de alimentação ininterrupta PowerWalker VI 1000 SCL FR

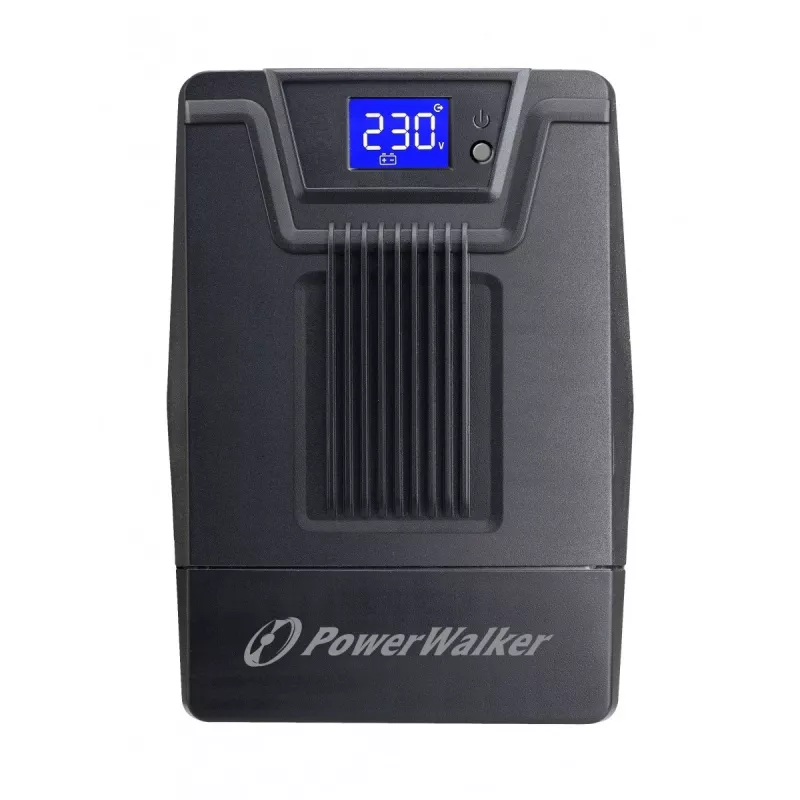

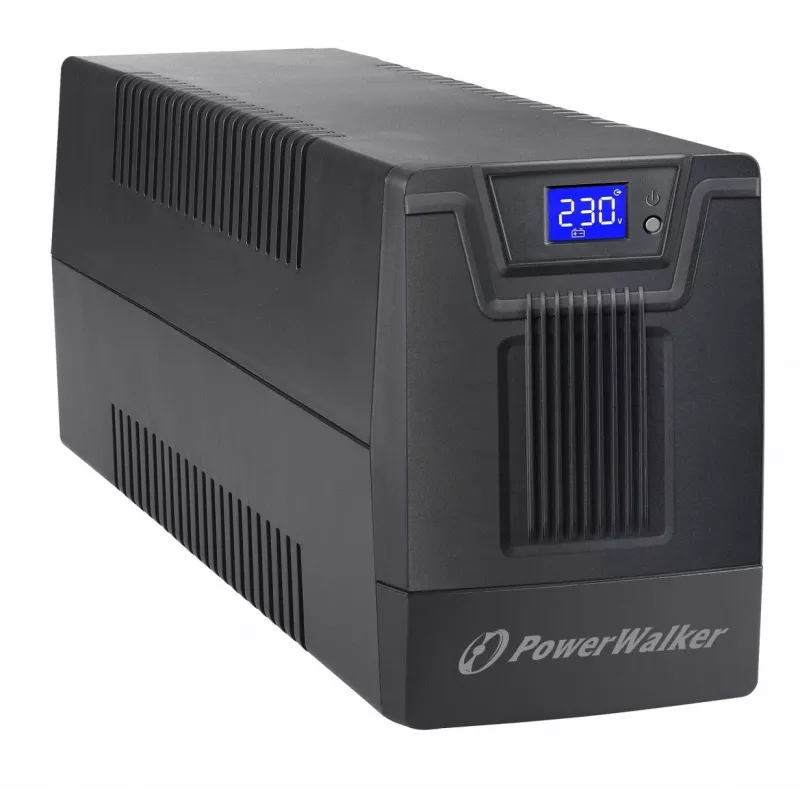

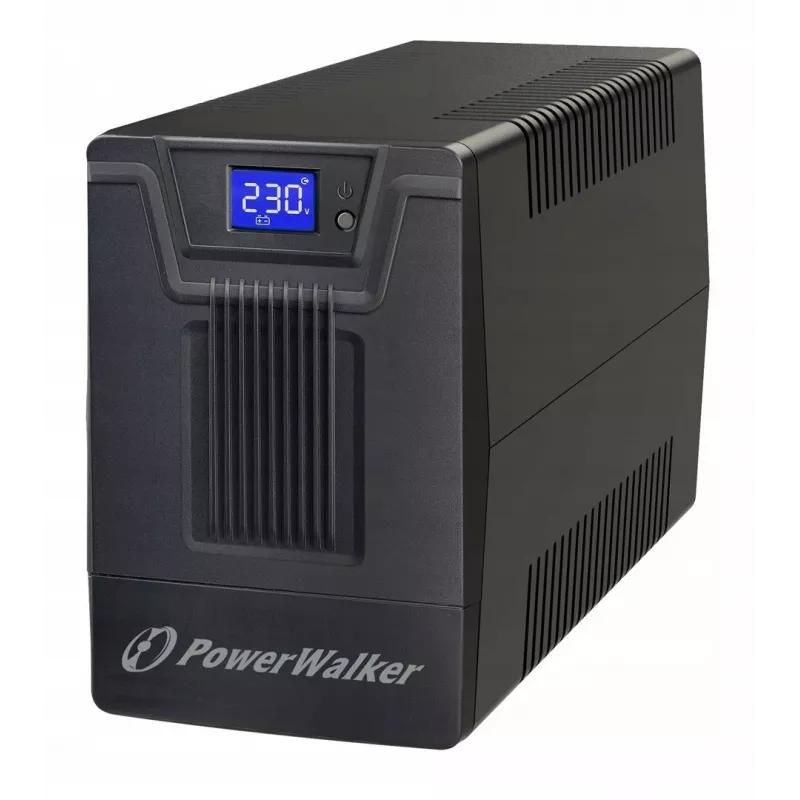

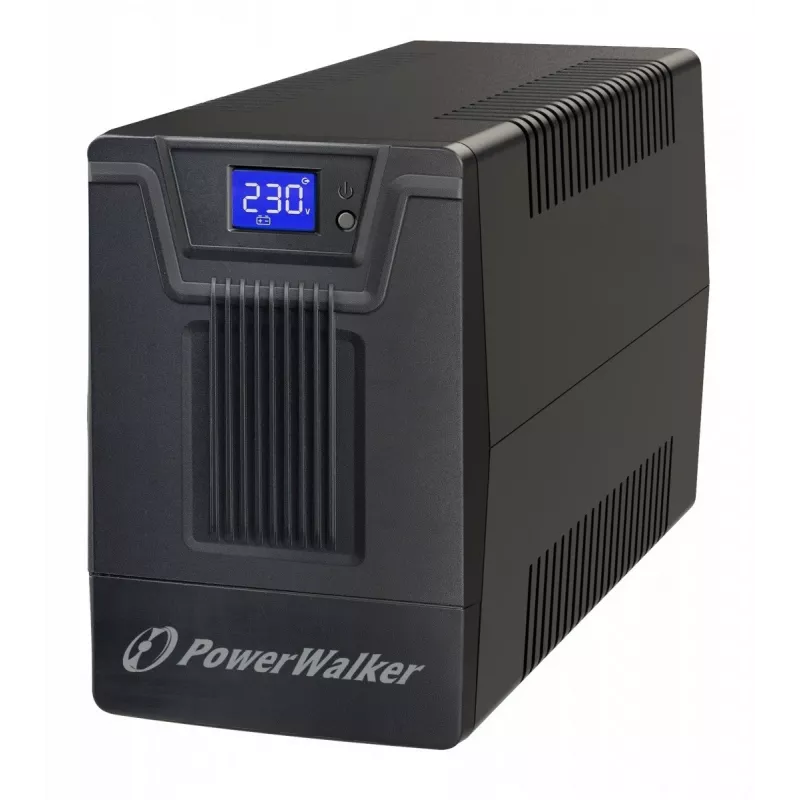

The PowerWalker VI 1000 SCL FR is a line-interactive UPS designed for home and small office use, providing 1 kVA (600 W) output power and surge protection. This tower-format unit includes four Type E (CEE 7/5) outlets and an internal 12 V, 14 Ah battery. Its compact dimensions (130 × 320 × 182 mm) and microprocessor-controlled Automatic Voltage Regulator (AVR) deliver stable voltage by switching between boost and buck modes, while a touch panel shows key monitored parameters. The UPS supports cold start and can charge its internal battery while on standby. A USB port with HID support enables monitoring and control via PowerWalker ViewPower software or the operating system's native drivers.

Advantages

The VI 1000 SCL FR provides continuous protection against power interruptions and voltage fluctuations through AVR boost and buck functions. Its compact tower design and 4 Type E outlets allow easy connection of multiple devices. The integrated touch panel and USB HID support facilitate straightforward monitoring without the need for additional drivers, and the cold start capability ensures the unit can be started from battery when mains power is absent.

Suitable for

• Desktop PCs and workstations
• Home office equipment (modems, routers, printers)
• Small network devices and peripheral protection
• Sensitive electronics requiring short-term backup and surge protection

Key specifications

• Model: PowerWalker VI 1000 SCL FR (VI 1000 SCL FR)
• Output power: 600 W
• Capacity: 1 kVA

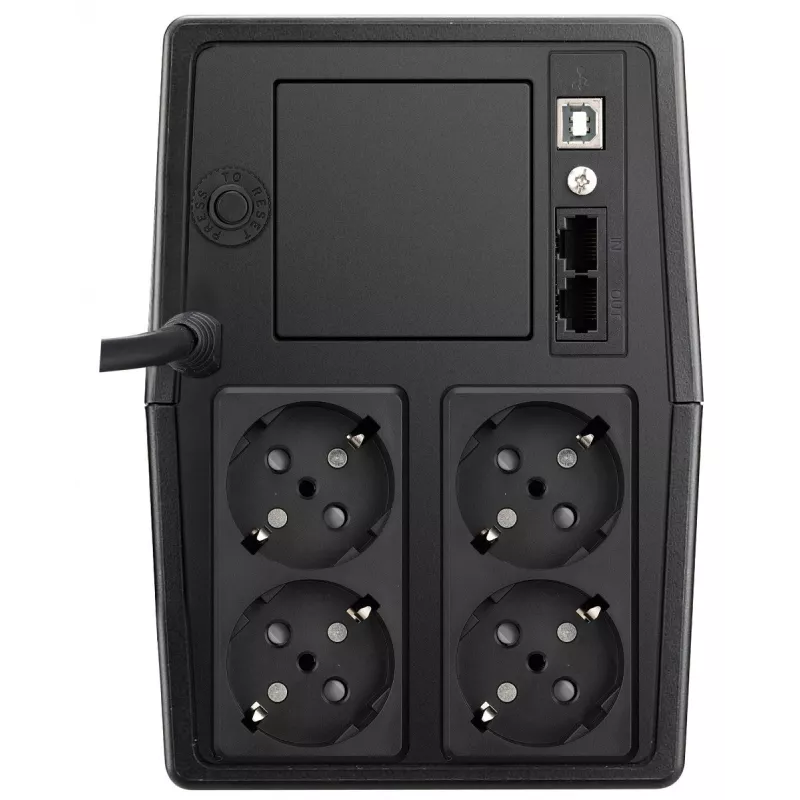

• AC outlets: 4 × Type E (CEE 7/5)
• Battery: 12 V, 14 Ah (internal)
• Form factor: Tower
• Dimensions (W × D × H): 130 × 320 × 182 mm
• Weight: 8.2 kg
• Communications: USB with HID support (no software CD or USB cable included)
• AVR: Microprocessor-controlled, boost and buck modes

How to use

Place the UPS on a stable, level surface with adequate ventilation. Connect critical devices to the four Type E outlets and plug the UPS into a mains outlet to charge the internal battery before first use. Use the touch panel to view monitored parameters and navigate settings. If needed, start the UPS from battery using the cold start function. For monitoring and graceful shutdown configuration, connect the UPS to a computer via USB and install PowerWalker ViewPower software or rely on the operating system's HID drivers.

Recommendations

Maintain the UPS in a dry, dust-free environment and avoid placing it near heat sources. Periodically test the battery by simulating a mains failure and replace the internal battery according to the manufacturer's guidelines or when runtime significantly decreases. For full remote monitoring and advanced shutdown features, download the latest ViewPower software from the PowerWalker website and ensure USB cable compatibility if not provided with the unit.
