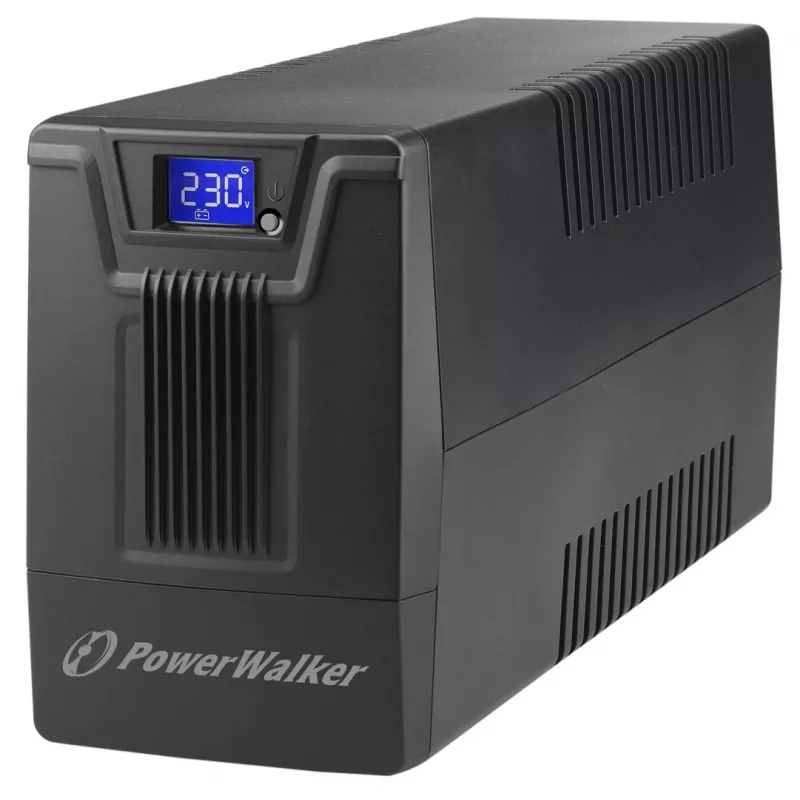

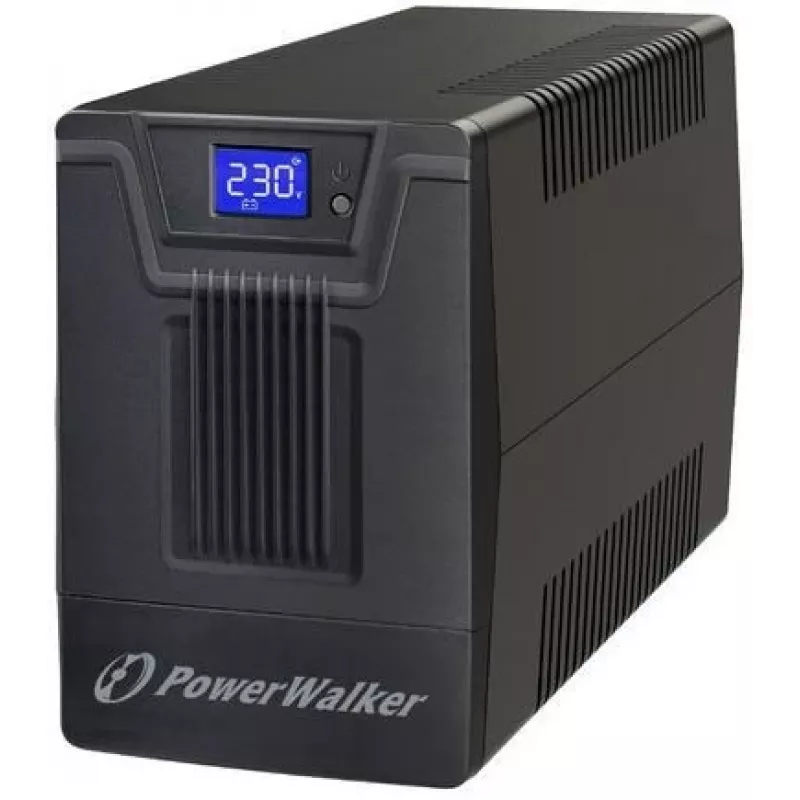

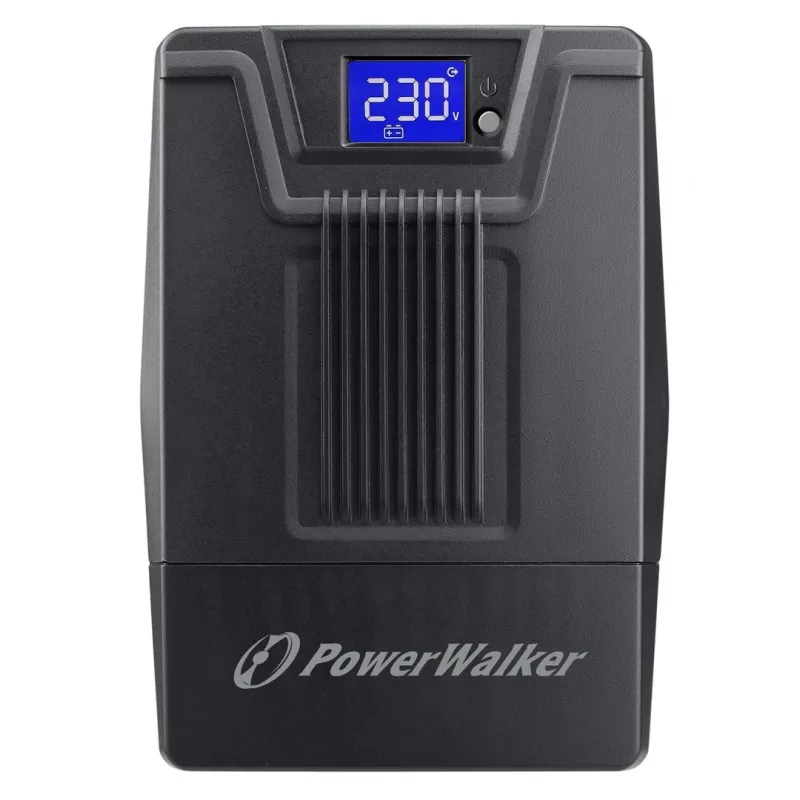

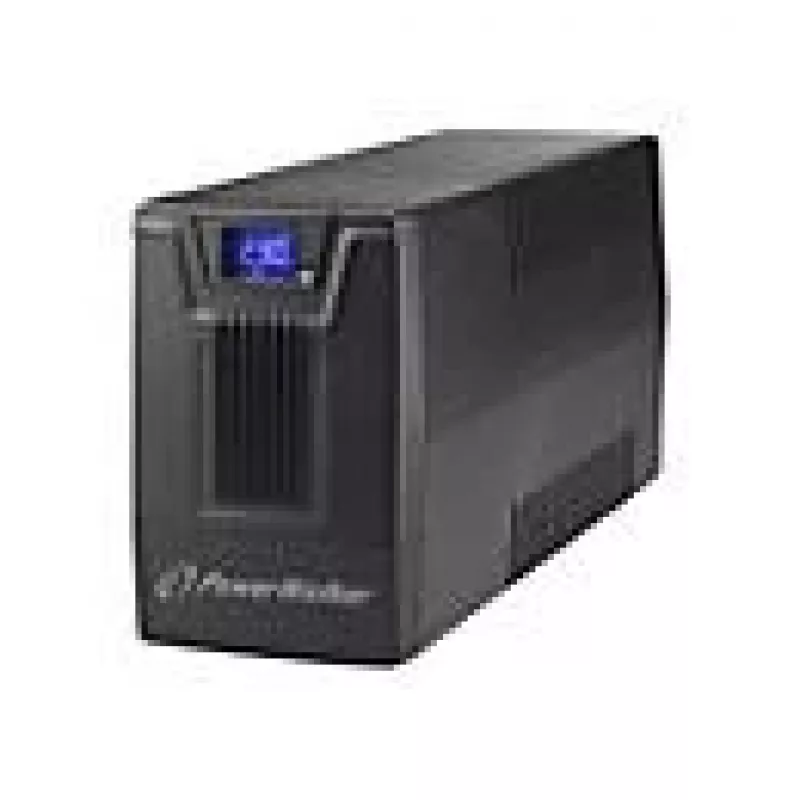

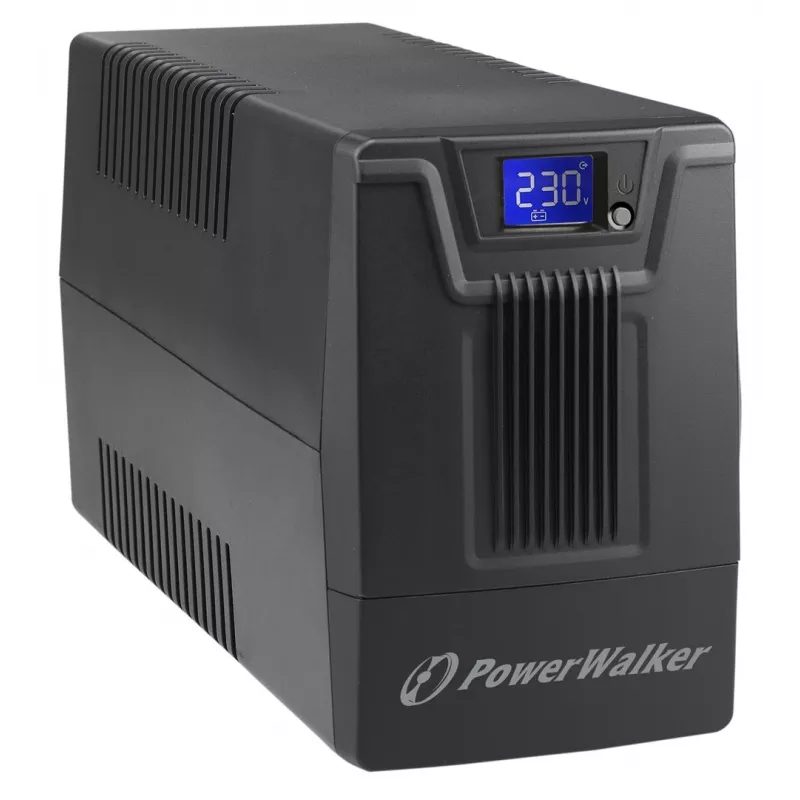

Fonte de alimentação ininterrupta PowerWalker VI 800 SCL FR — UPS Line‑Interactive 0,8 kVA (480 W), 2 tomadas tipo E, USB, RJ-45/RJ-11, bateria 12V 9Ah, torre, preto

The PowerWalker VI 800 SCL FR is a line-interactive uninterruptible power supply (UPS) with 0.8 kVA / 480 W output capacity, designed for protecting PCs and other home equipment. This compact tower UPS features two Type E (CEE 7/5) AC outlets and an internal 12 V, 9 Ah battery. The unit includes a microprocessor-controlled Automatic Voltage Regulator (AVR) that maintains safe voltage levels by switching between boost and buck modes and a touch panel for viewing key monitored parameters.

Advantages

The UPS provides reliable short-term power backup and basic surge protection for home and small-office devices. It supports cold start (turn on from battery) and allows charging of internal batteries while in standby. A USB port with HID support enables monitoring and control via PowerWalker ViewPower software or native OS drivers without additional drivers. The product is supplied without a software CD and USB cable to reduce cost and environmental impact.

Suitable for (tasks / use cases)

• Protecting a desktop PC and peripherals during brief power interruptions
• Providing controlled shutdown for home servers or NAS devices
• Safeguarding networking equipment (modem/router) to maintain connectivity
• Powering small office workstations and point-of-sale terminals

Key specifications

• Model: PowerWalker VI 800 SCL FR
• Output power capacity: 0.8 kVA (480 W)
• AC outlets: 2 × Type E (CEE 7/5)
• Battery: 12 V, 9 Ah (internal)
• Form factor: Tower; dimensions: 101 mm (W) × 300 mm (D) × 142 mm (H)
• Weight: 5 kg
• Colour: Black

How to use

Place the UPS on a stable, ventilated surface and connect your equipment to the Type E outlets. Plug the UPS into the mains to charge the internal battery before first use. The device can be switched on from mains or started directly from the battery using the cold start function. Use the touch panel to review operating parameters. For advanced monitoring and shutdown scheduling, connect the UPS to a computer via the USB HID port and install PowerWalker ViewPower software if desired.

Recommendations

Position the UPS away from heat sources and direct sunlight, and allow adequate airflow around the unit. Periodically test the battery performance and replace the battery when runtime becomes insufficient. Use the UPS in environments within the manufacturer's specified temperature and humidity ranges and avoid connecting high-power appliances that exceed the 480 W output rating.
