Bomba de água Gardena 9030-20

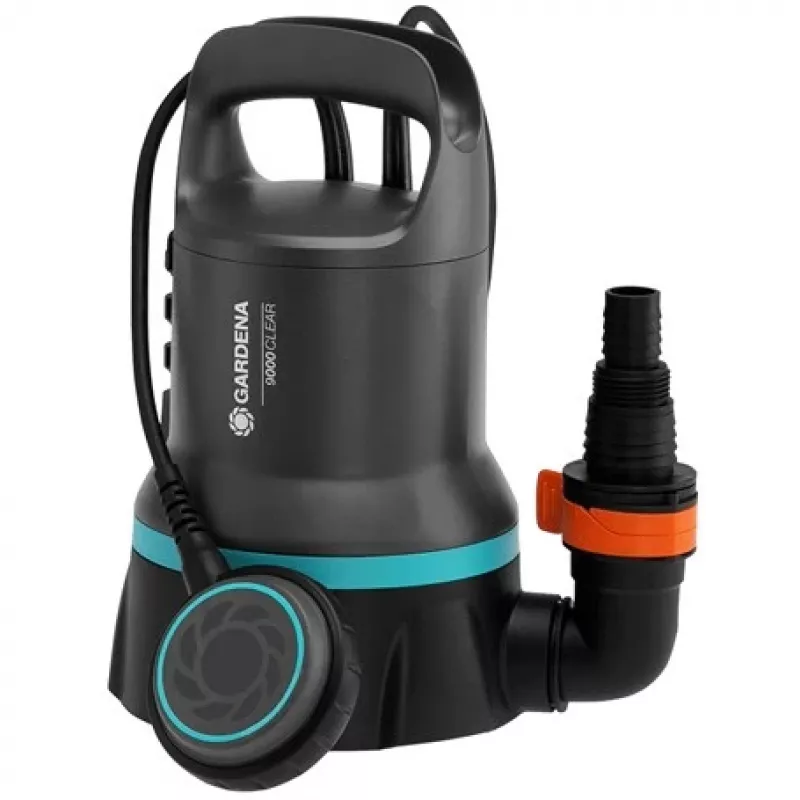

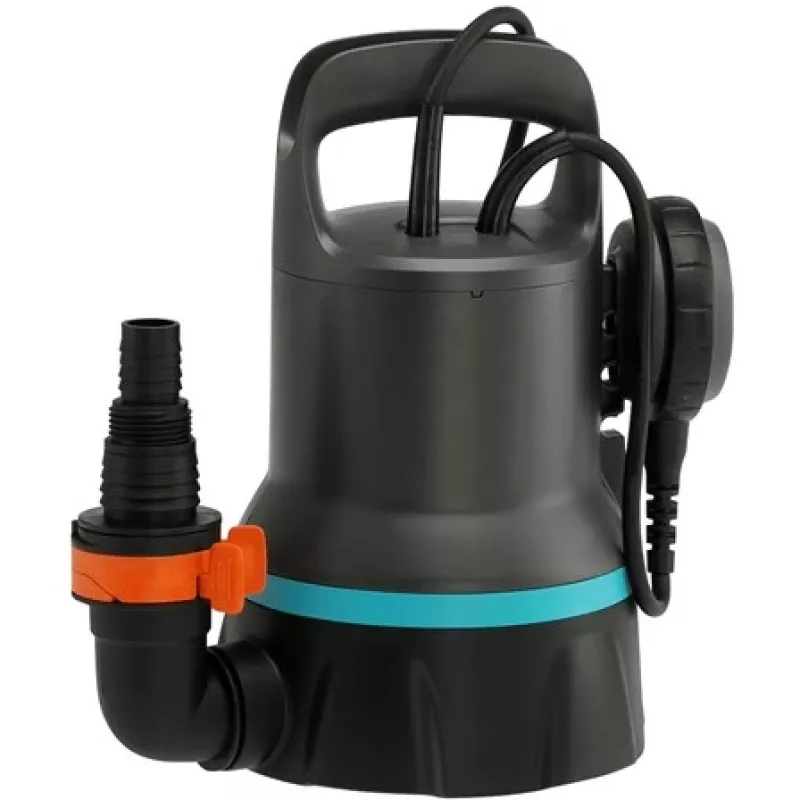

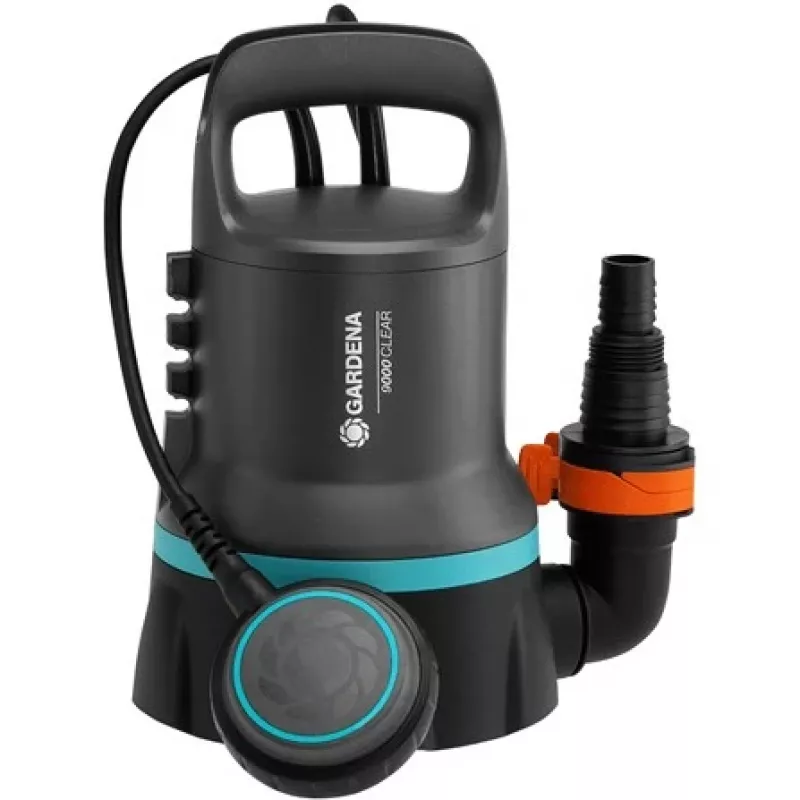

The GARDENA Water Pump 9030-20 is a submersible clear water pump designed for efficient drainage and versatile garden and domestic use. It delivers up to 9,000 litres per hour with a motor power of 300 W, a maximum delivery height of 6 m and a nominal pressure of 0.6 bar. The compact pump (242 x 179 x 283 mm) features an adjustable float switch for automatic level control, flat suction down to 2 mm and an IPX8 rating for continuous immersion.

Advantages

The pump combines high performance with relatively low energy consumption, offering up to 9,000 l/h at 300 W. Its adjustable float switch allows automatic on/off switching at three selectable heights and can be locked into the housing for continuous manual operation. The design includes a practical handle, cable wind-up function and multiple hose connection options (25 mm/1", 38 mm/1½" and G1" thread). Self-protective technologies reduce the risk of damage from dry running.

Suitable for

• Draining rainwater barrels and ponds
• Pumping water from flooded basements or cellars
• Groundwater removal and general site drainage
• Filling or emptying pools and similar water containers

Key specifications

• Model: GARDENA 9030-20 (MPN 09030-20)
• Power: 300 W
• Maximum flow rate: 9,000 litres/hour
• Maximum delivery height: 6 m
• Maximum pressure: 0.6 bar
• Flat suction: down to 2 mm
• Hose connections: 25 mm (1"), 38 mm (1½"), G1" thread
• Protection rating: IPX8 (suitable for continuous immersion)
• Dimensions: 242 x 179 x 283 mm

How to use

Place the submersible pump in the water on a stable surface and connect a hose using the appropriate GARDENA connection or the G1" thread. Set the float switch to one of three heights for automatic operation or lock it inside the housing for continuous manual operation. Connect the power supply and monitor the pump during first use to ensure correct flow and stable positioning. After use, disconnect the power, remove the hose and drain remaining water before storage. Clean the pump inlet if debris is present.

Recommendations

Use the adjustable float switch to prevent dry running and select hose diameter according to required flow. Avoid pumping water containing large solids or abrasive particles to prevent damage; for heavily contaminated water choose a suited dirty-water pump. Regularly inspect seals, connections and the intake area and store the pump dry and frost-free when not in use.
