Bomba e reservatório Alphacool Core Distro Plate preto transparente acrílico alumínio cerâmica sintético

The Alphacool Core Distro Plate combines an integrated reservoir with a pre-installed VPP Apex pump in a black transparent acrylic housing, designed for custom PC water-cooling loops. Available in 240 mm and 360 mm lengths with left or right pump-top orientation, the unit simplifies planning, installation and maintenance of complex loops while providing visible coolant flow and digital aRGB illumination.

Advantages

The Core Distro Plate uses chrome-plated brass G1/4" connectors that are recessed into the acrylic and secured with two-part fittings and O-rings to reduce risk of leakage. Push-mounting hardware is included for tool-free attachment to a case panel or radiator, enabling quick removal for service. The integrated Apex VPP pump features a ceramic shaft and relocated motor coils for quieter, more stable operation and lower power consumption. Built-in digitally addressable aRGB LEDs allow board- or controller-based lighting control.

Suitable for

• Custom CPU and GPU water-cooling loops
• PC cases or radiators with compatible mounting positions
• Systems requiring visible coolant and aRGB lighting

Key specifications

• Type: Pump & reservoir
• Material: Acrylic housing with aluminium and synthetic components; chrome-plated brass G1/4" connectors
• Pump: Alphacool VPP Apex (ceramic shaft)

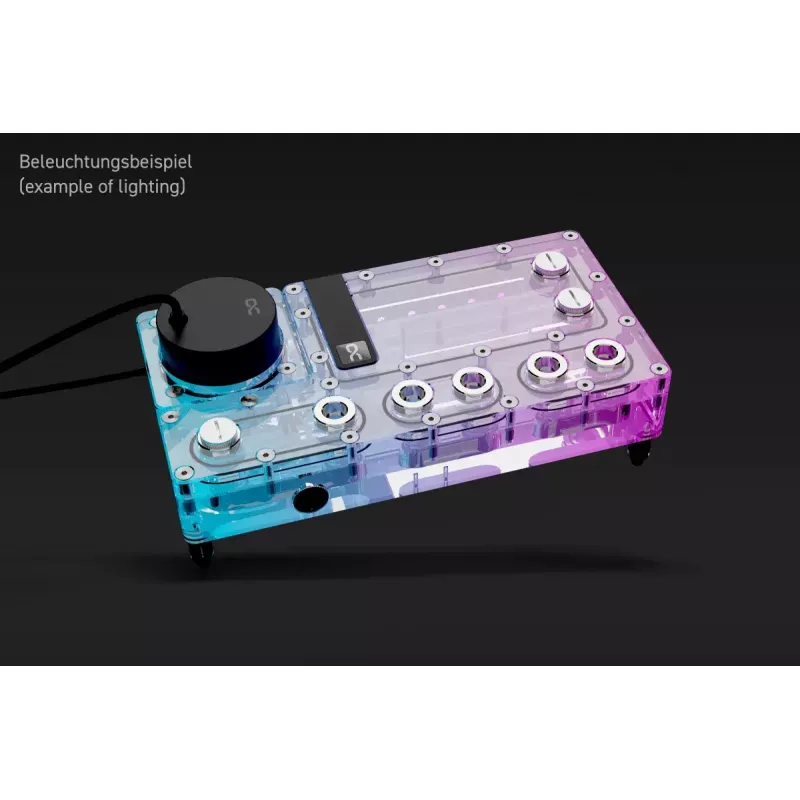

• Lighting: Digitally addressable aRGB LEDs, controllable via motherboard aRGB header or optional controller

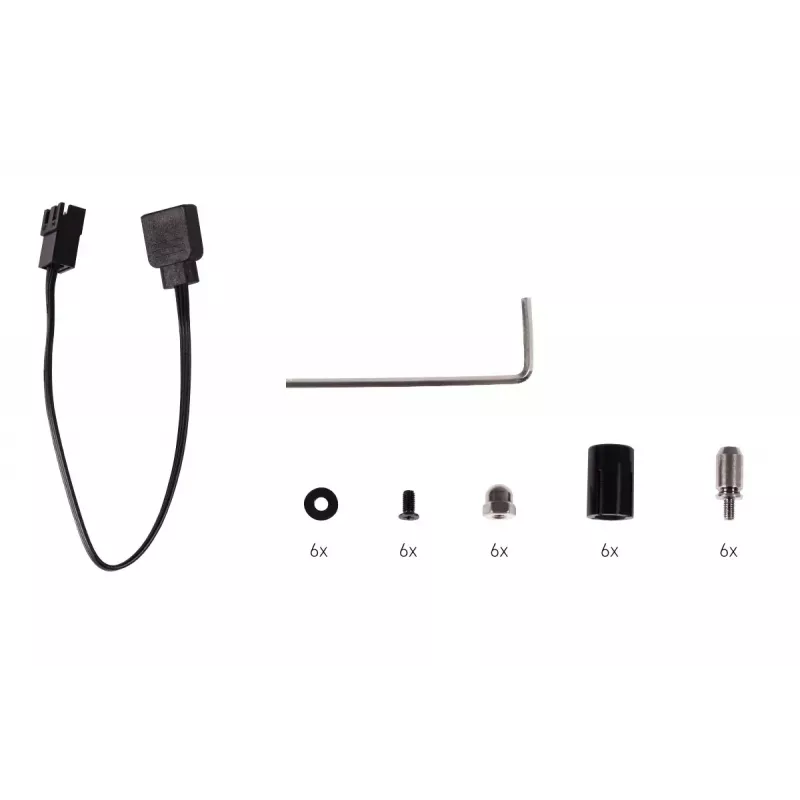

• Mounting: Core Push Mounting kit included (mounts to case panel or radiator)
• Dimensions (approx.): 125 mm width × 240 mm depth × 93.3 mm height
• Product colour: Transparent, Black
• Weight: 1.536 kg
• MPN / EAN: A0046684 / 4250197154789

How to use

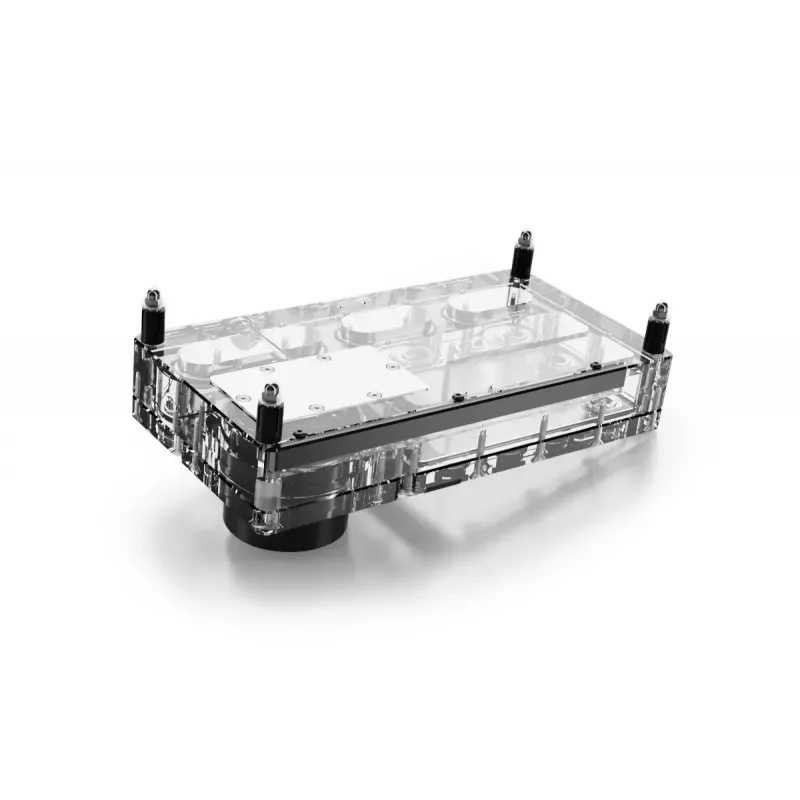

Attach the metal pins from the included Core Push Mounting kit to the case panel or radiator, fit the matching female sockets onto the distro plate, then push the plate onto the pins until it locks in place. Connect the VPP Apex pump to the power supply via the SATA connector and connect the 4-pin PWM cable to a motherboard fan header or external controller to enable pump speed control and RPM monitoring. Fill the reservoir and bleed the loop following standard custom loop procedures, using the side drain port for controlled draining.

Recommendations

For reliable operation, use compatible G1/4" fittings and follow the motherboard or controller documentation when connecting aRGB and PWM headers. Perform regular visual inspections of the acrylic reservoir and maintenance of the loop components to ensure leak-free operation.
