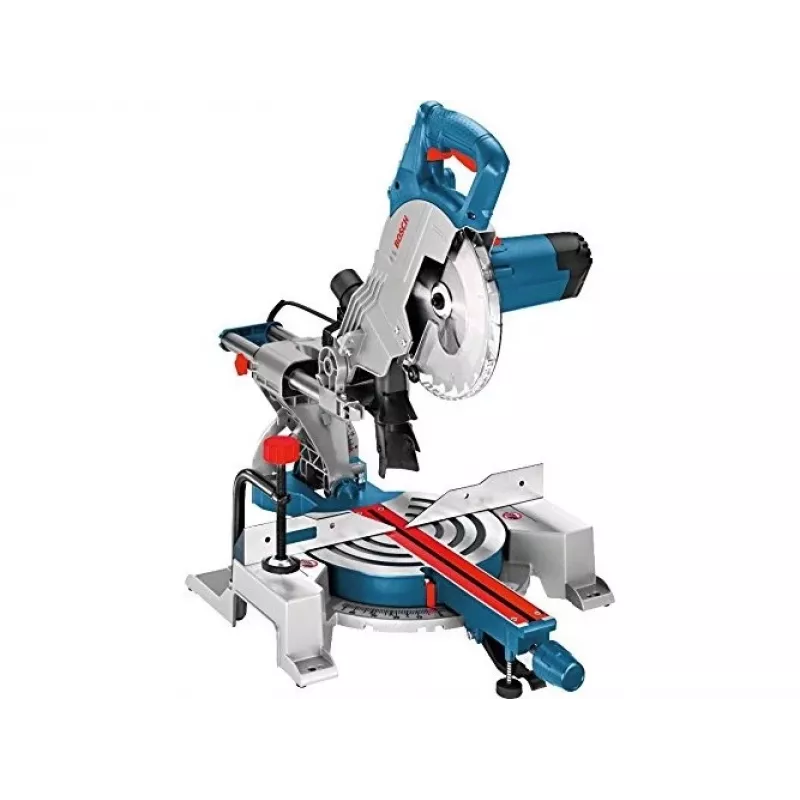

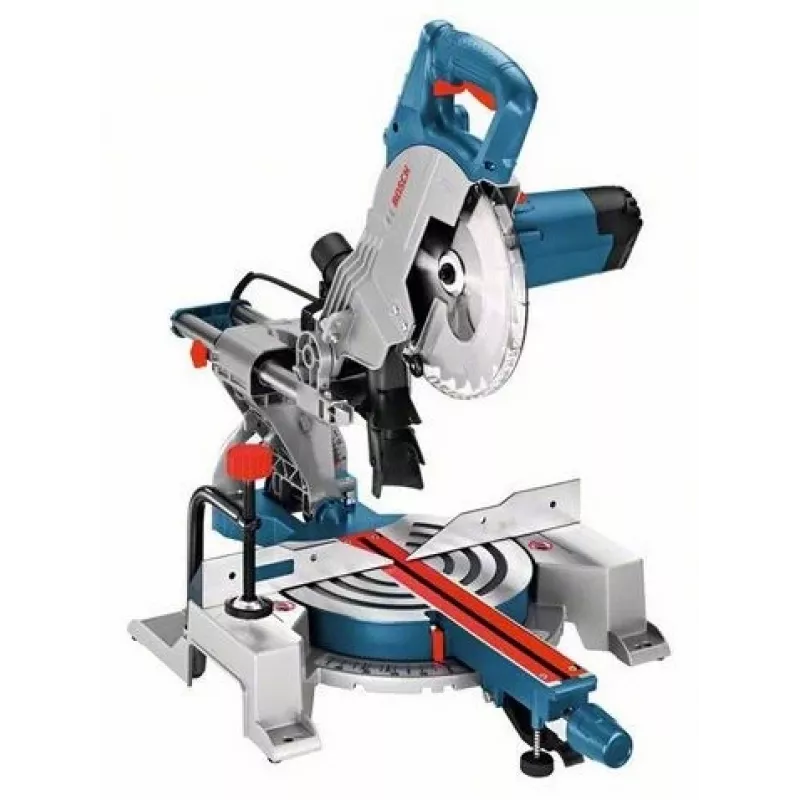

Bosch GCM 800 SJ Professional Serra de corte e esquadria 1400 W 5500 rpm 216 mm

The Bosch GCM 800 SJ Professional stands out with its powerful 1400 W motor delivering 5500 RPM, enabling fast and precise cuts in wood and similar materials. Its 216 mm saw blade with a 30 mm bore provides a generous cutting capacity of up to 70 x 270 mm at 0° miter and 0° bevel, making it suitable for a wide range of crosscutting tasks.

Highlights

• 1400 W motor with 5500 RPM no-load speed for efficient cutting
• 216 mm blade diameter, 30 mm bore
• Maximum cutting capacity: 70 x 270 mm (0° miter, 0° bevel), 70 x 190 mm (45° miter, 0° bevel), 48 x 270 mm (0° miter, 45° bevel)
• Miter angle adjustment: 47° left / 47° right
• Bevel angle adjustment: 45° left / 0° right
• Aluminium base plate for stability and durability
• Soft start and spindle lock for convenience and safety
• Dust extraction port diameter: 35 mm

In daily use

The GCM 800 SJ Professional is designed for accurate mitre and bevel cuts, featuring a robust aluminium base plate that ensures stable positioning. The soft start function reduces start-up torque, while the spindle lock allows for quick and easy blade changes. The 35 mm dust extraction port helps maintain a clean work environment when connected to a suitable vacuum.

Full specifications

• Power input: 1400 W
• No-load speed: 5500 RPM
• Saw blade diameter: 216 mm
• Saw blade bore diameter: 30 mm
• Max. cutting capacity (0° miter, 0° bevel): 70 x 270 mm (H x W)
• Max. cutting capacity (45° miter, 0° bevel): 70 x 190 mm (H x W)
• Max. cutting capacity (0° miter, 45° bevel): 48 x 270 mm (H x W)
• Miter angle adjustment: 47° left / 47° right
• Bevel angle adjustment: 45° left / 0° right
• Dust extraction port diameter: 35 mm
• Motor type: Brushed
• Voltage: 230 V
• Sound power level: 112 dB(A)
• Sound pressure level: 101 dB(A)

Final note

The Bosch GCM 800 SJ Professional combines power, precision, and user-friendly features, making it a reliable choice for professional carpenters and demanding DIY enthusiasts.
