Bosch GIC 4/5 Imager Dual câmara de inspeção com cabo de 1,5 m, câmaras frontal e lateral duplas, ecrã de 4,3 polegadas, gravação HD 1600A02Z61

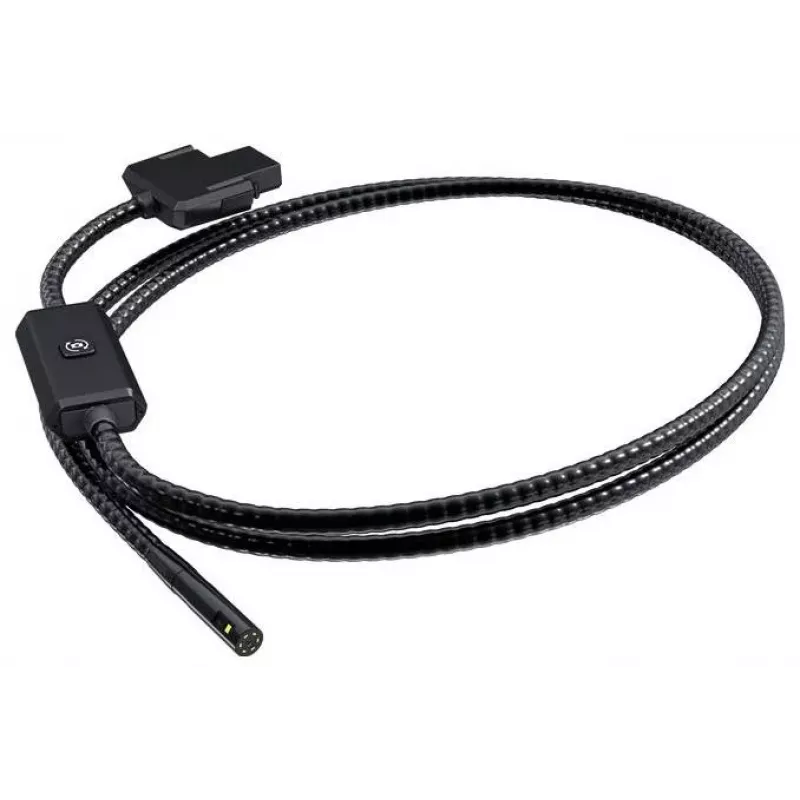

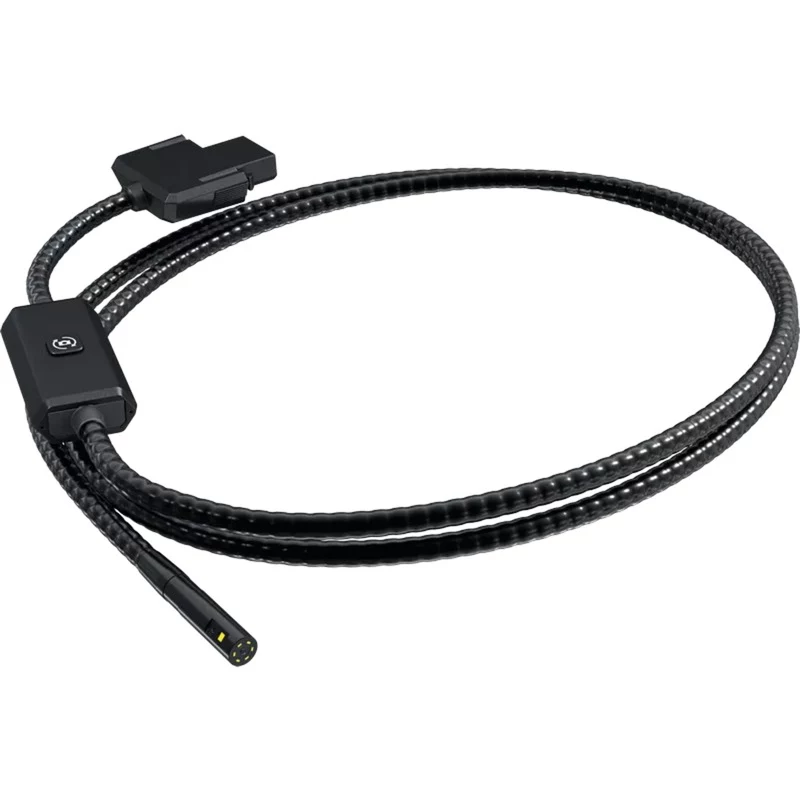

The Bosch GIC 4/5 Imager Dual sets itself apart with a dual-camera probe that switches between a forward view and a side view, eliminating the need to swap camera heads in tight spaces. A 4.3-inch colour display, HD recording, and a 1.5-metre flexible cable make it a practical tool for inspecting pipes, wall cavities, and engine bays.

Highlights

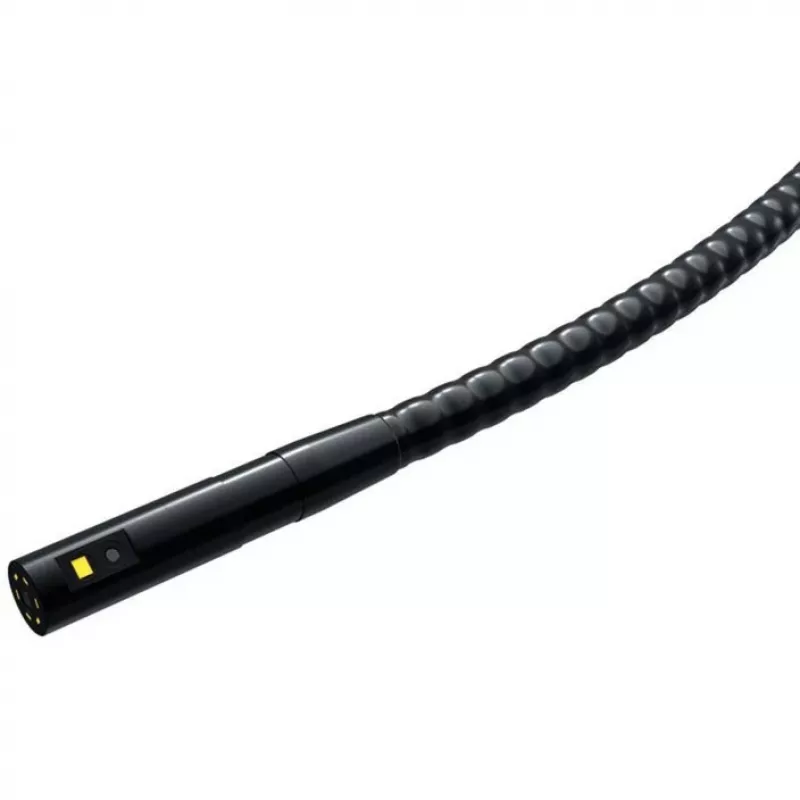

• Dual camera head: 8.5 mm diameter with front and side lenses, each with 75° field of view
• HD image and video capture: 1280 x 720 resolution, stored on 8 GB internal memory or optional microSD card up to 32 GB
• Adjustable LED illumination: 6 LEDs (3 front, 3 side) for clear visibility in dark areas
• Flexible power options: runs on 4 AA batteries or a Bosch 12V Li-ion battery for up to 6 hours
• Rugged design: camera cable rated IP67 for dust and water resistance

In daily use

The GIC 4/5 Imager Dual is ready for demanding inspection tasks. The 1.5 m cable reaches deep into pipes and ducts, while the 3x digital zoom lets you examine details closely. The display shows a crisp image, and you can save photos as JPG or videos as AVI for documentation. The side camera is especially useful for inspecting pipe walls without bending the cable.

Full specifications

• Display: 4.3" diagonal, 800 x 480 pixels
• Camera resolution: 1280 x 720 pixels (HD)
• Probe diameter: 8.5 mm
• Probe length: 1.5 m
• Field of view: 75°
• Depth of field: front camera 30–80 mm, side camera 30–60 mm
• Illumination: 6 adjustable LEDs
• Power: 4 x 1.5V LR6 (AA) or Bosch 12V Li-ion battery
• Battery voltage: 12 V (Li-ion)
• Battery life: approx. 6 hours (with 12V 2.0Ah battery)
• Storage: 8 GB internal, microSD slot up to 32 GB
• Image format: JPG
• Video format: AVI
• Digital zoom: 3x
• Protection class (camera cable): IP67
• Operating temperature: -10 °C to +50 °C
• Weight: 0.6 kg (without battery)

Final note

The Bosch GIC 4/5 Imager Dual combines dual-view capability with HD recording in a rugged, portable package, making it a versatile choice for professional inspection tasks.
