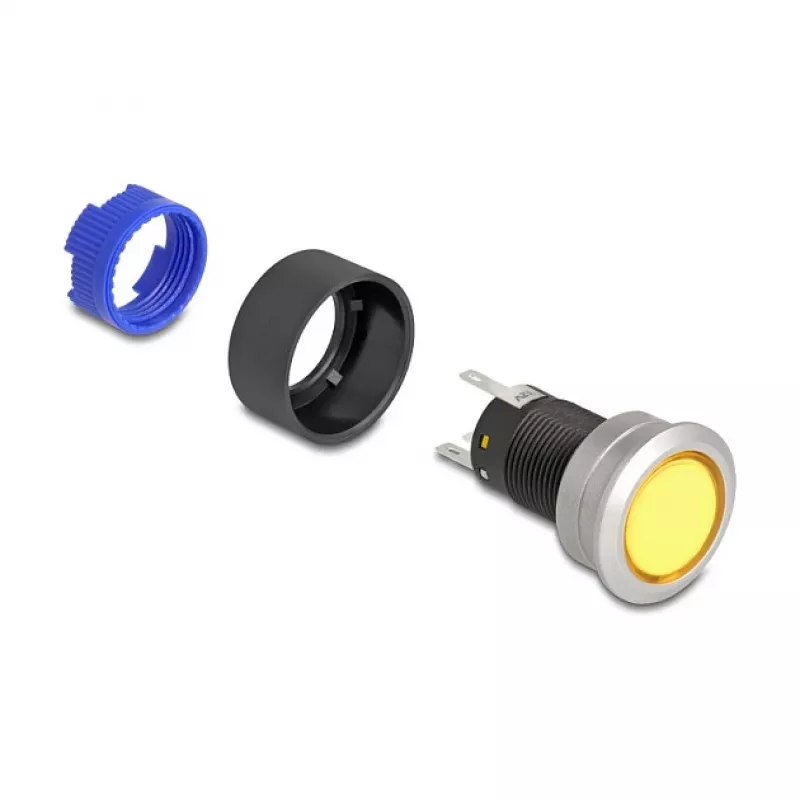

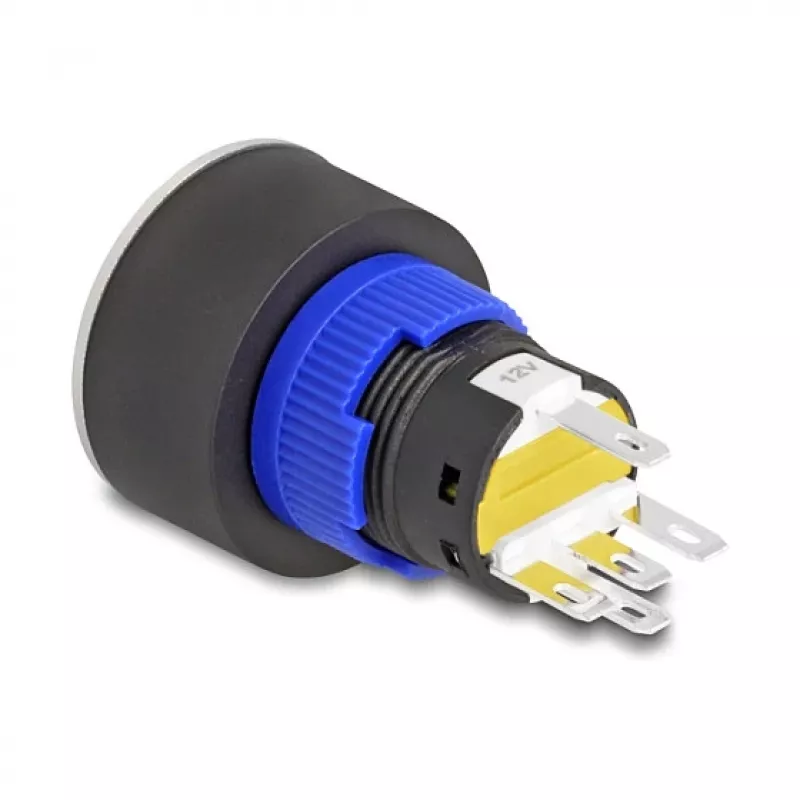

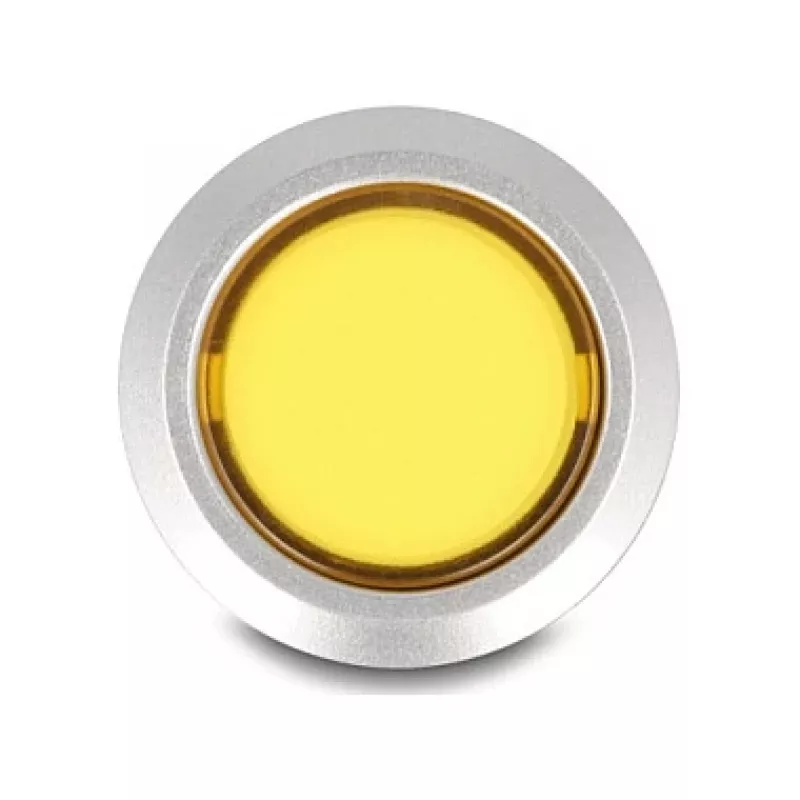

Botão de pressão DeLOCK 22050 preto azul prateado amarelo 230V 3A

The DeLOCK 22050 is a momentary pushbutton switch designed for installation in control panels and compact devices. It has a plastic housing and is available in black, blue, silver and yellow. With a maximum switching voltage of 230 V and a rated current of 3 A, the switch is suitable for small electrical circuits where a return-to-position (momentary) actuator is required.

Advantages

The pushbutton offers a compact footprint (22 mm × 41 mm × 22 mm) that facilitates installation in confined spaces. It supports both normally open (NO) and normally closed (NC) contact behaviour, enabling use as a make or break control element. The plastic construction provides lightweight handling and basic electrical insulation for typical low-power applications.

Suitable for

• Installation in industrial and control panels
• Switching in regulation and control technology
• Use in consumer devices such as doorbells and timed lighting systems
• Automotive or small-electronics applications requiring a momentary switch

Key specifications

• Brand: DELOCK
• Model / MPN: 22050
• Colours: black, blue, silver, yellow
• Type: momentary (push-to-return) pushbutton
• Maximum switching voltage: 230 V
• Rated current: 3 A
• Housing material: plastic
• Dimensions (W × D × H): 22 × 41 × 22 mm
• EAN: 4043619220502

How to use

Mount the pushbutton into the prepared panel cut-out and secure it according to the panel mounting method used. Connect wiring to the appropriate NO or NC terminals depending on whether a closing or opening contact is required. Ensure the supply voltage and load current do not exceed 230 V and 3 A respectively. After wiring, test the actuator by pressing the button to confirm correct contact operation and return-to-position function.

Recommendations

Use the DeLOCK 22050 in low-power control circuits and protected environments; avoid exposure to strong mechanical shock, moisture ingress, or voltages and currents above the rated values. When used in safety-critical systems, integrate additional protective or monitoring measures as required by applicable standards.
