Botão GIRA 313600 com indicador LED vermelho, montagem encastrada

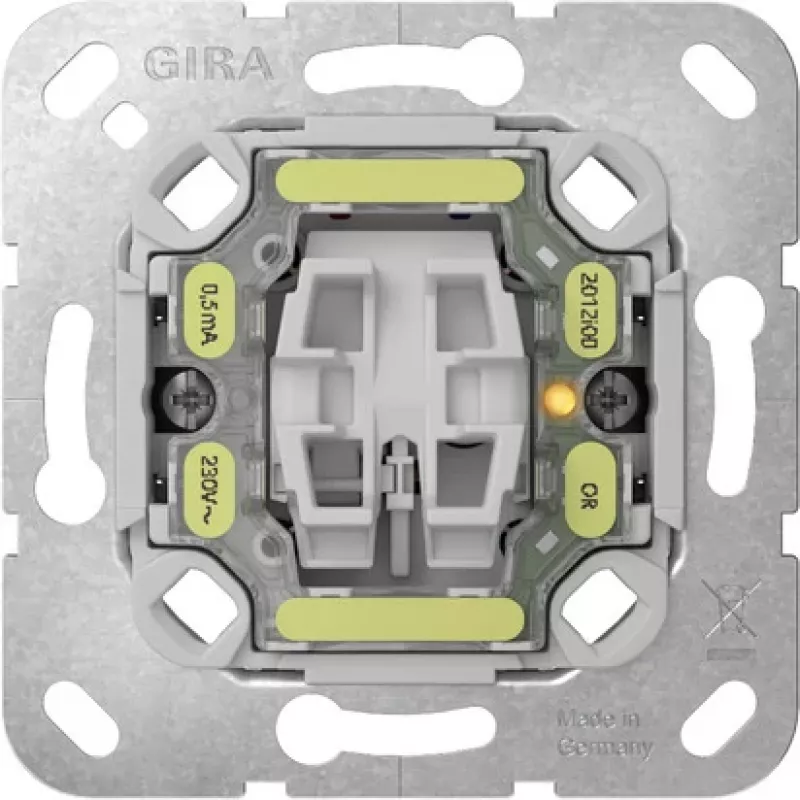

The GIRA 313600 is a momentary push-button switch with an integrated red LED indicator, designed for flush-mounted installation in standard wall boxes. Unlike conventional rocker switches, it provides a clear visual status indication while maintaining a clean, unobtrusive appearance.

Highlights

• Momentary push-button action with 1-pole normally open contact
• Integrated red LED for status indication
• Rated for 250 V AC, 10 A, suitable for lighting and control circuits
• Compatible with Gira System 55, E2, Esprit, Event, and Standard 55 ranges
• Screw terminals accept rigid conductors from 1.5 to 2.5 mm²

In daily use

This switch is ideal for applications where a momentary signal is needed, such as controlling lighting with a relay or automation system. The red LED provides clear feedback, making it easy to see the switch state at a glance. Its flush-mounted design integrates seamlessly with Gira cover plates in various styles.

Full specifications

• Switch type: Push-button (momentary)
• Contact configuration: 1-pole, normally open (NO)
• Indicator type: Integrated LED
• Indicator colour: Red
• Rated voltage: 250 V AC
• Rated current: 10 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductors)
• Mounting type: Flush-mounted
• Material: Thermoplastic
• Protection class: IP20
• Operating temperature range: -20 to +40 °C
• Compatibility: Gira System 55, E2, Esprit, Event, Standard 55
• Installation depth: Approx. 32 mm

Final note

The GIRA 313600 combines reliable momentary switching with clear visual indication, making it a practical choice for modern electrical installations.
