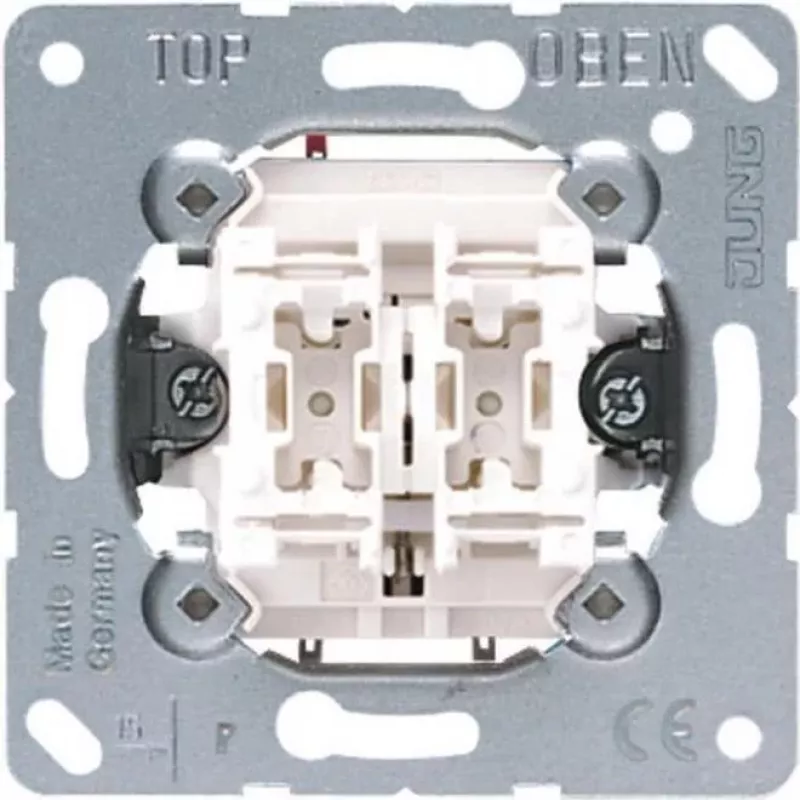

Botão JUNG 535 U, 1 polo (1P), 250 V AC, 10 A, com fios, metallic white

JUNG 535 U is a wired, single-pole pushbutton switch designed for reliable switching of lighting, signaling circuits and small electrical loads. Rated for 250 V AC and a nominal current of 10 A, the device offers standard pushbutton operation with a metallic white finish suited for wall or panel mounting. The switch is equipped with screwless terminals that accept conductors up to 2.5 mm² and can be adapted to versions without claws identified by an additional designation. By removing an internal spring, each pushbutton can be converted into a maintained switch to create a pushbutton/switch combination, offering flexible installation options.

Advantages

The JUNG 535 U combines compact single-pole switching with a robust 10 A rating at 250 V AC for dependable performance in residential and light commercial installations. Screwless terminals simplify wiring and reduce installation time while accommodating conductors up to 2.5 mm². The metallic white finish provides a neutral, durable appearance suitable for a variety of interiors. The design allows conversion from momentary pushbutton to maintained switch by removing a spring, enabling adaptable functionality without replacing the entire unit.

Suitable for

Key specifications

How to use

Install the JUNG 535 U into a compatible mounting frame or panel cut-out following local electrical codes. Make connections using the screwless terminals: insert stripped conductors up to 2.5 mm² and ensure secure engagement. Use the device to switch single-pole circuits at up to 250 V AC and 10 A. If a maintained switching function is required, remove the internal spring according to the manufacturer's instructions to convert the pushbutton into a switch. Verify wiring and operation before restoring full power to the circuit.

Recommendations

Use appropriate protective equipment and follow local regulations during installation. Ensure the switch is not loaded beyond its rated 10 A current and 250 V AC voltage. For conversion to a maintained switch or for versions without claws, consult mounting requirements and consider using the variant without claws where claw fixation is not needed.
