Braço de monitor de secretária Neomounts FPMA-D750 preto

The Neomounts desk mount FPMA-D750BLACK is a single-arm monitor support for flat screens from 10" up to 32" (81 cm) with a maximum weight capacity of 8 kg. It offers both clamp (Topfix) and grommet mounting options for space-saving placement on desks and includes all installation material.

Advantages

The arm provides versatile adjustment with tilt up to 170°, swivel up to 180° and rotation up to 180°. A gas spring enables smooth height adjustment from 18 to 48 cm and the depth is adjustable from 0 to 47 cm. Integrated cable management conceals and routes cables to keep the workspace neat. The mount supports VESA 75x75 and 100x100 mm patterns and can accommodate other patterns via Neomounts VESA adapter plates.

Suitable for

• Home offices and corporate desks
• Reception counters and service desks
• Workstations where desk space must be maximised
• Screens compatible with VESA 75x75 or 100x100 mm

Key specifications

• Model: FPMA-D750BLACK
• Supported screen size: 10"–32" (up to 81 cm)
• Maximum weight per screen: 8 kg (recommended range 2–8 kg)
• VESA compatibility: 75x75 and 100x100 mm

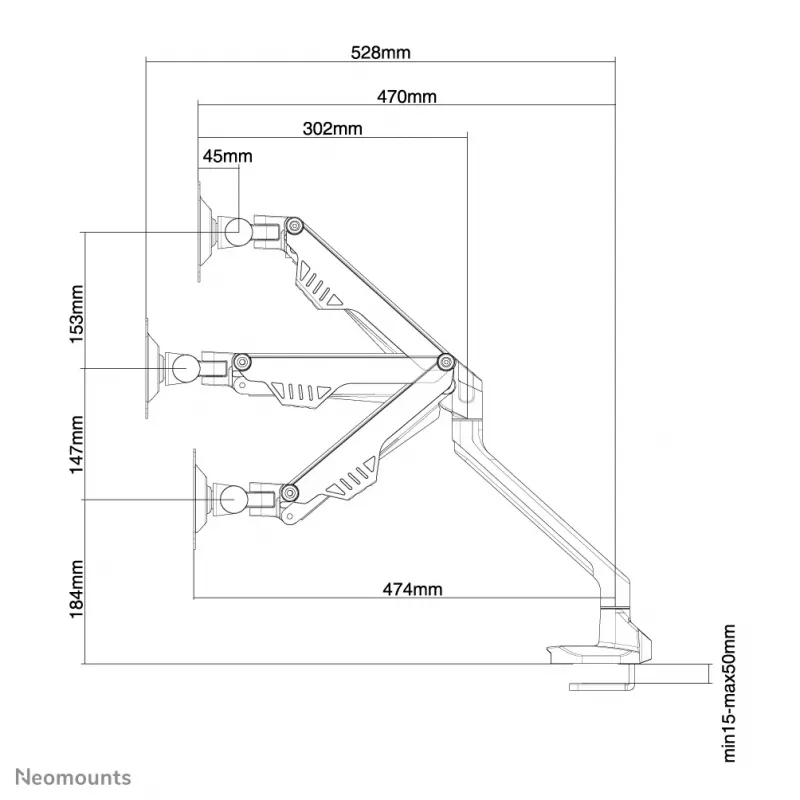

• Height adjustment: 18–48 cm (gas spring)
• Tilt: 0–170°; Swivel: 180°; Rotation: 180°
• Depth adjustment: 0–47 cm
• Mounting: Topfix desk clamp or grommet
• Colour: Black

How to use

Attach the mount to the desk using the included Topfix clamp or the grommet option following the supplied installation material. Fix the monitor to the VESA plate (75x75 or 100x100 mm) and, if needed, use a Neomounts VESA adapter plate for other hole patterns. Adjust the arm height with the gas spring to set an ergonomic viewing level, then fine-tune tilt, swivel and rotation to the required angle. Route cables through the integrated cable management channel before finalising the installation.

Recommendations

For optimal ergonomics position the top of the screen at or slightly below eye level and maintain an arm’s-length viewing distance. Use the integrated cable management to prevent strain on cable connections and check that the monitor weight is within the 2–8 kg range for stable operation.
