Braço de parede e de fixação OBO Bettermann AWSS 31 FT, 310 mm de alcance, aço galvanizado a quente 6417910

With a 0.7 kN load capacity and a 310 mm projection, the AWSS 31 FT cantilever arm provides robust support for cable trays and ladders in demanding installations.

Overview

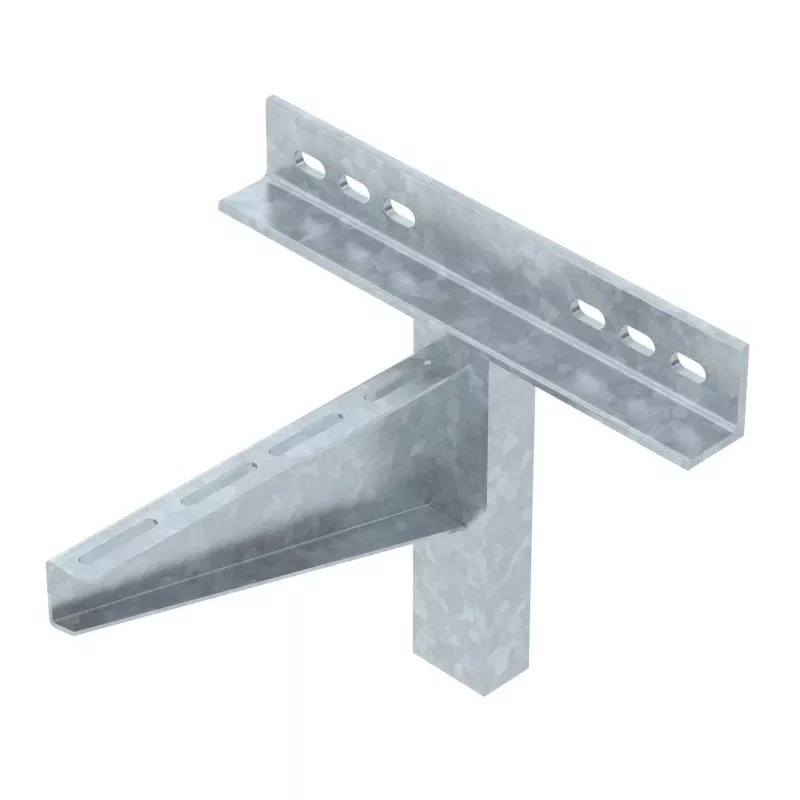

The OBO Bettermann AWSS 31 FT is a wall and clamp cantilever designed for cable support systems. Manufactured from steel with a hot-dip galvanised finish, it offers high corrosion protection for long-term reliability. The C-profile design ensures stable mounting on walls or via clamps.

What stands out

• Hot-dip galvanised to DIN EN ISO 1461 for superior corrosion resistance
• Supports up to 0.7 kN point load
• 310 mm projection length suits standard cable tray widths
• Versatile wall or clamp mounting options

Technical details

• Material: Steel
• Surface treatment: Hot-dip galvanised
• Projection length (B): 310 mm
• Profile height (H): 100 mm
• Profile width (W): 40 mm
• Profile type: C-profile
• Mounting type: Wall mounting, Clamp mounting
• Application: Cable support systems
• Suitable for: Cable trays, Cable ladders
• Max. load capacity: 0.7 kN

Our verdict

A heavy-duty, corrosion-resistant cantilever arm that delivers reliable support for cable management in industrial and commercial settings.
