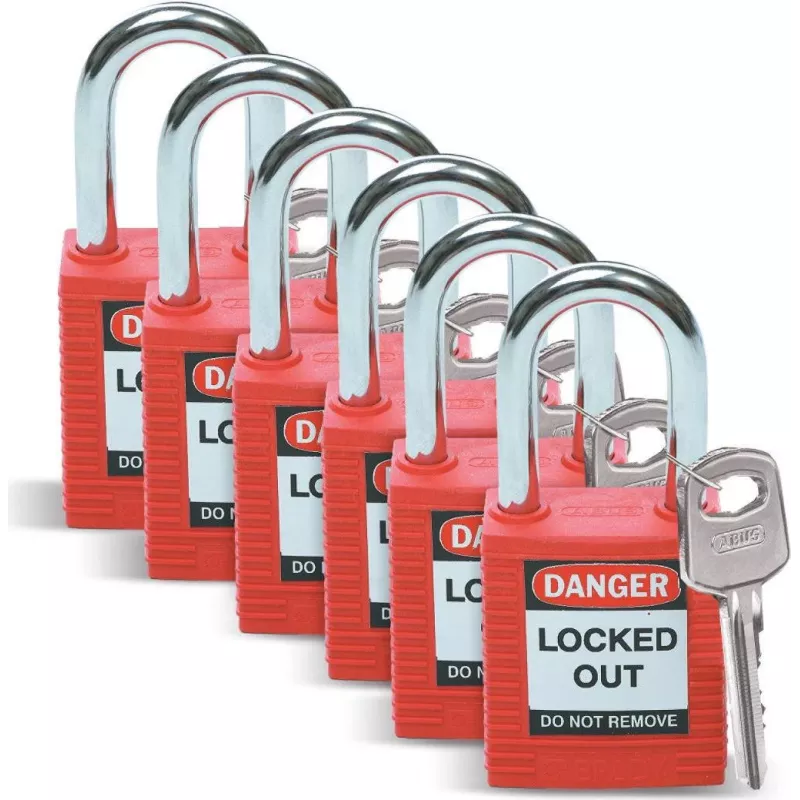

Brady conjunto de cadeados de segurança Lockout, corpo em nylon, arco em aço, chave diferente, vermelho, pack de 6 (051339)

This Brady lockout padlock set stands apart from conventional safety locks by combining a non-conductive reinforced nylon body with a hardened steel shackle, delivering both electrical isolation and physical strength in a compact 38 mm format. Supplied as a six-pack with individually keyed cylinders, it provides a dedicated lock for each energy isolation point without the risk of key interchange.

Highlights

• Reinforced nylon body is non-conductive and resistant to chemicals, corrosion, and UV exposure.
• Hardened steel shackle with chrome plating offers high cut resistance and durability.
• Keyed different (KD) system: each padlock has a unique key, preventing unauthorized access.
• Key-retaining function ensures the key cannot be removed while the shackle is open, reinforcing lockout discipline.
• Compact 38 mm body width with 38 mm vertical and 20 mm horizontal shackle clearance fits most lockout hasps and energy isolation points.
• Operating temperature range from -20°C to 120°C suits demanding industrial environments.

In daily use

During maintenance or repair work, these padlocks secure circuit breakers, valves, and other energy sources to prevent accidental re-energization. The non-conductive nylon body eliminates the risk of electrical shock if the lock contacts live parts, while the steel shackle withstands physical attack. Each worker can be assigned a uniquely keyed lock, ensuring that only the person who applied the lock can remove it. The key-retaining feature prevents the key from being left in an open lock, a common cause of lockout procedure violations.

Full specifications

• Product type: Safety padlock (lockout/tagout)
• Body material: Reinforced nylon (non-conductive)
• Shackle material: Hardened steel, chrome-plated
• Shackle diameter: 6.35 mm (1/4")
• Vertical shackle clearance: 38 mm (1.5")
• Horizontal shackle clearance: 20 mm (0.79")
• Body width: 38 mm (1.5")
• Body height: 45 mm (1.77")
• Overall height (with shackle): 90 mm (3.54")
• Colour: Red
• Keying system: Keyed different (KD)
• Key-retaining: Yes
• Pack quantity: 6 padlocks
• Operating temperature: -20°C to 120°C
• Corrosion resistance: High
• UV resistance: Yes
• LOTO compliance: Yes
• Key type: Unique per padlock

Final note

With its robust construction and strict key control, this Brady set is a reliable choice for comprehensive lockout/tagout programs in industrial, electrical, and maintenance settings.
