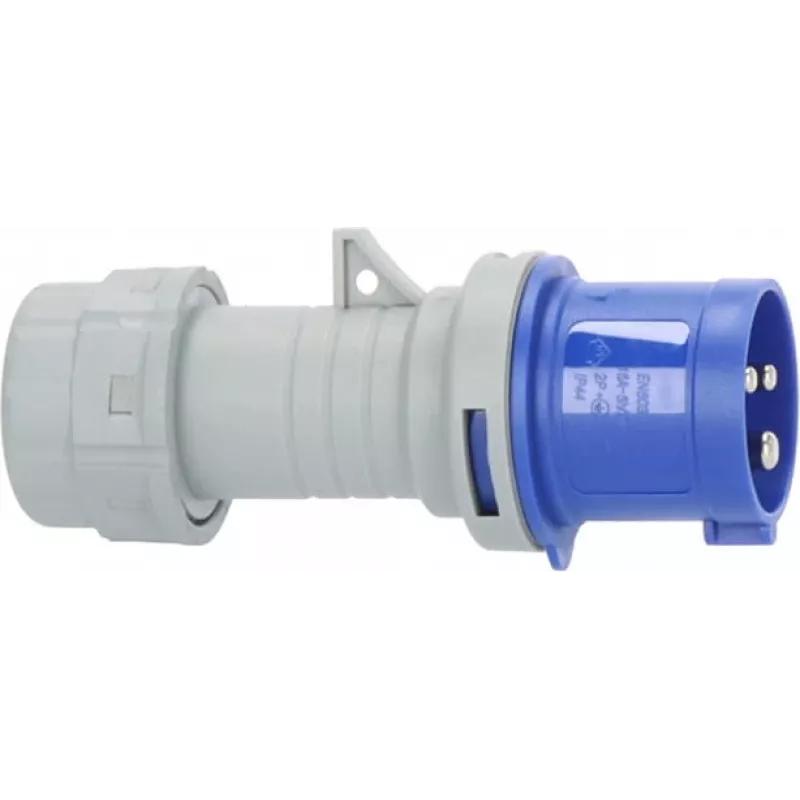

Brennenstuhl 1081010020 Ficha CEE-CARA 16 A 3 polos 230 V IP44 Azul

Camping and caravan power connections often suffer from moisture, dirt, and mechanical stress, leading to unreliable electricity. The Brennenstuhl 1081010020 CEE plug addresses these challenges with a robust, splash-proof design built for outdoor use.

Who is it for

This plug is for caravanners, campers, and outdoor enthusiasts who need a dependable 230 V connection at campsites or marinas. It is also suitable for workshops and agricultural environments where a 16 A CEE plug is required.

Main features

• 16 A, 230 V, 3-pole (2P+E) CEE plug conforming to IEC 60309
• IP44 splash-proof rating for outdoor use
• High-quality, break-resistant plastic housing in blue
• Screw terminals for secure cable connection up to 2.5 mm²
• Straight cable entry for easy installation
• Operating temperature range: -25 °C to +40 °C

Specifications

• Connector type: Plug
• Current rating: 16 A
• Voltage rating: 230 V
• Number of poles: 3 (2P+E)
• IP rating: IP44
• Frequency: 50/60 Hz
• Connection method: Screw terminals
• Max. cable cross-section: 2.5 mm²
• Housing material: Plastic
• Colour: Blue
• Cable entry angle: Straight
• Operating temperature: -25 °C to +40 °C

Tips

Ensure the cable is properly stripped and inserted into the screw terminals, then tighten securely to prevent loosening from vibration. For outdoor use, always close the cover when not connected to maintain the IP44 protection.
