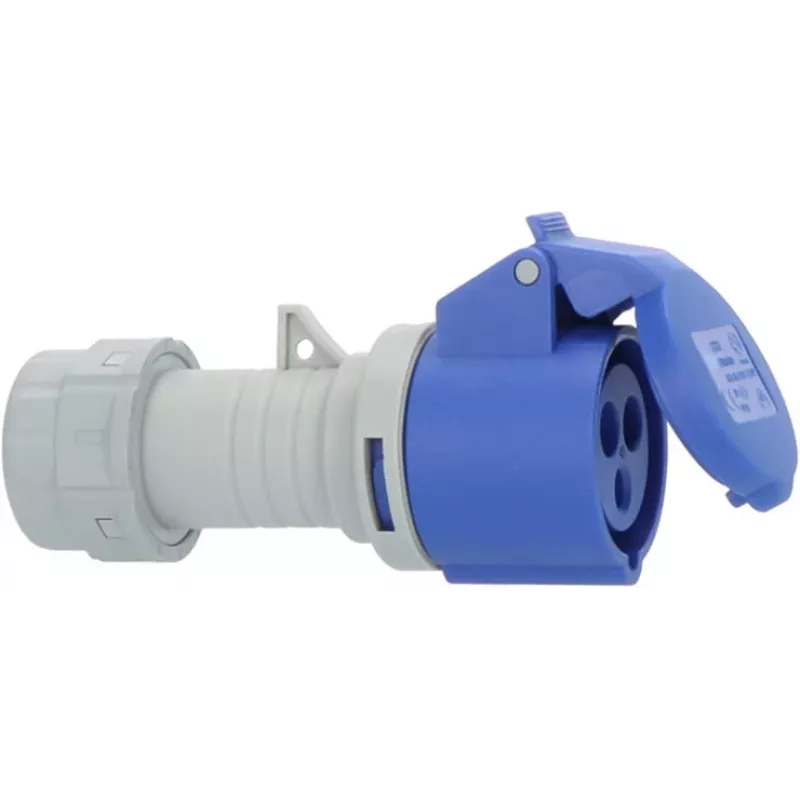

Brennenstuhl 1081020020 Conector fêmea CEE 16 A 3 polos 230 V IP44 Azul

For electricians and maintenance teams on construction sites, in workshops, or at outdoor events, this CEE coupling provides a reliable connection for 230 V power distribution. It mates with standard CEE plugs and is built to withstand demanding environments.

Key specifications

• Connector type: CEE coupling (female)
• Rated current: 16 A
• Rated voltage: 230 V
• Number of poles: 3-pole (1P+N+E)
• IP protection class: IP44 (splash-proof)
• Color: Blue
• Housing material: Impact-resistant polyamide (PA)
• Connection type: Screw terminals
• Max. conductor cross-section: 2.5 mm²
• Earth pin clock position: 6h
• Frequency: 50/60 Hz
• Standard: IEC 60309
• Application: Industrial, construction, camping, marine
• Mounting type: Cable mount
• Operating temperature: -25°C to +40°C
• Certifications: CE, VDE

Why choose it

The impact-resistant polyamide housing and IP44 rating ensure durability in tough conditions. Screw terminals allow secure connection of conductors up to 2.5 mm², making installation straightforward.

Ideal use cases

• Power distribution on construction sites
• Outdoor events and temporary installations
• Camping and marine applications
• Workshop and industrial environments

Good to know

This coupling conforms to IEC 60309 and carries CE and VDE certifications, ensuring compliance with European safety standards.
