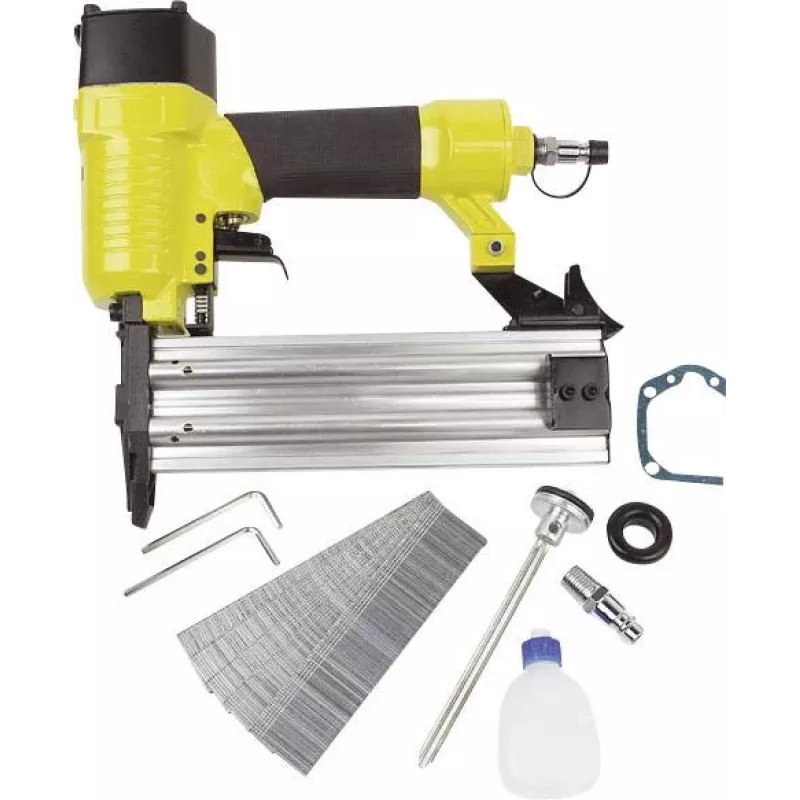

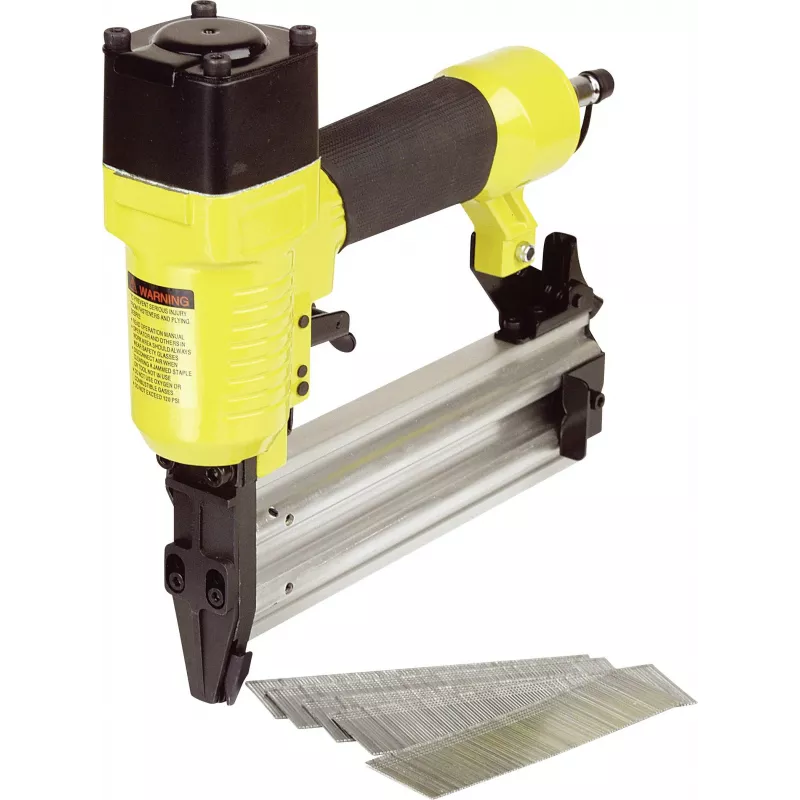

Brüder Mannesmann agrafador e pregador pneumático 15350

Pneumatic nailer and stapler for fastening tasks in woodworking, paneling, skirting boards, insulation, and upholstery. Drives Type 47 nails (15–50 mm) and Type 90 staples (16–40 mm) with a contact safety nose.

Advantages

Lightweight aluminum housing reduces fatigue during extended use. Quick coupling air inlet allows fast connection to compressed air lines. Magazine holds up to 100 fasteners for fewer reloads.

Suitable for

• Woodworking and paneling
• Skirting boards and insulation
• Upholstery and light assembly

Key specifications

• Operating pressure: 4–7 bar (60–100 PSI)
• Air consumption: approx. 0.6 l/shot at 6 bar
• Air inlet: 1/4" quick coupling
• Nail type: Type 47 / J-type, length 15–50 mm
• Staple type: Type 90 / 90-series, length 16–40 mm, crown width 5.7 mm
• Magazine capacity: approx. 100 fasteners
• Housing material: aluminum
• Safety feature: contact safety nose
• Recommended compressor output: min. 24 liters

Recommendations

Use with a compressor delivering at least 24 liters and set pressure between 4 and 7 bar for optimal performance.
