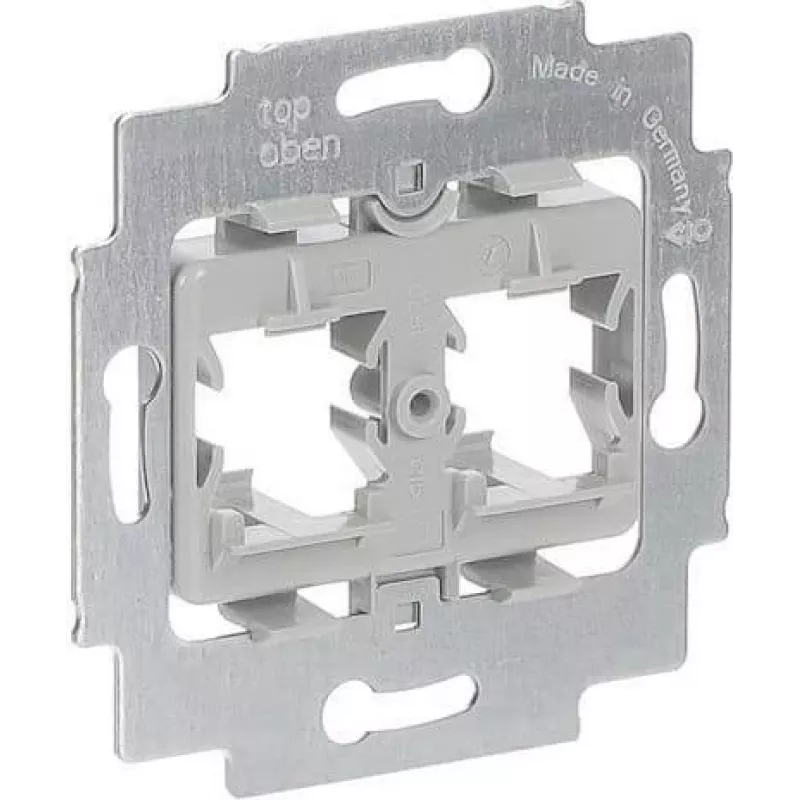

Busch-Jaeger 1820 Moldura de montagem para 2 Modular Jacks, cinzento (2CKA001753A8057)

This Busch-Jaeger mounting frame from the 1820 series provides a clean, flush-mounted base for two modular jack inserts, enabling a double data outlet in a single standard wall box. Unlike generic support rings, it is engineered for Busch-Jaeger switch ranges and features a halogen-free thermoplastic construction with a matte grey finish.

Highlights

• Accommodates two modular jack modules (RJ45, RJ11, etc.)
• Compatible with central plates with 50x50 mm openings
• Halogen-free thermoplastic, matte grey
• For flush-mounted installation in standard wall boxes

In daily use

The frame sits behind the central plate and holds the modular jacks securely, creating a tidy double data outlet for office or home networking. Its grey colour blends with typical switch ranges, and the matte surface resists fingerprints.

Full specifications

• Product Type: Mounting Frame / Support Ring
• Number of Modules: 2
• Module Type Compatibility: Modular Jack (e.g., RJ45, RJ11)
• Colour: Grey
• Material: Thermoplastic
• Mounting Type: Flush-mounted
• Halogen-free: Yes
• Compatibility: Busch-Jaeger switch ranges (e.g., Reflex SI, Alpha, Future Linear)
• Series: 1820
• Surface Finish: Matte
• Design: For central plates with 50x50 mm opening
• Protection Class: IP20
• Usage: For creating double data outlets

Final note

A reliable choice for structured cabling installations where a double data outlet is required without compromising on aesthetics or compatibility.
