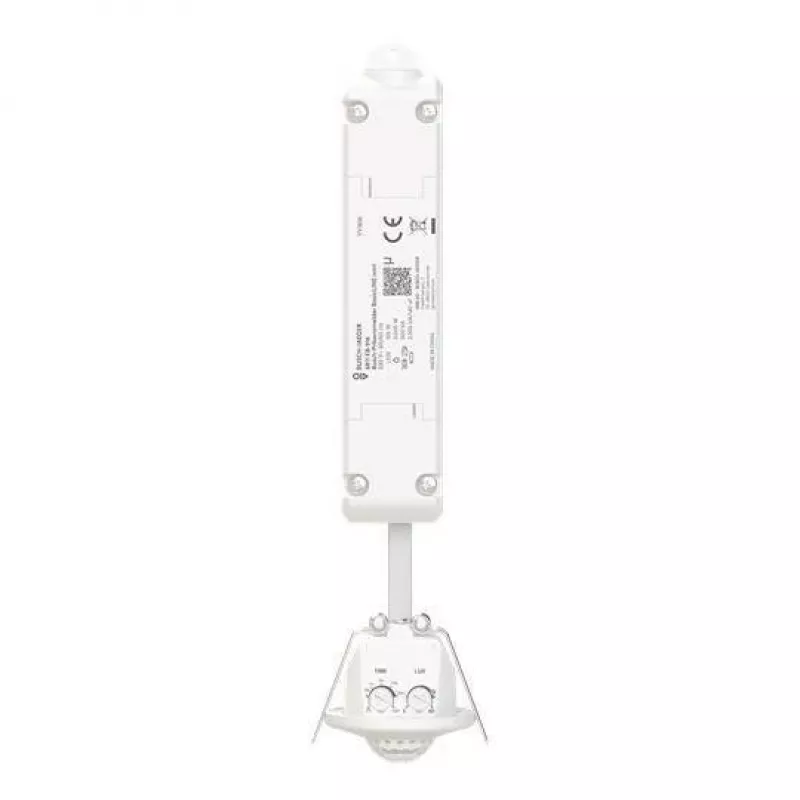

Busch-Jaeger 6811 EB-916 Detetor de presença mini BasicLINE, 6m, 1 canal, 230V 2CKA006800A3234

Detect presence across a 6-meter diameter with 360° coverage using this Busch-Jaeger BasicLINE Mini presence detector. It combines passive infrared sensing with adjustable brightness and time settings for automatic light control in indoor spaces.

Overview

The Busch-Jaeger 6811 EB-916 is a flush-mounted presence detector from the BasicLINE Mini series. It operates on 230 V AC and switches loads up to 2300 W resistive or 200 W LED. The detector features a 360° detection angle and a diameter of 6 meters at a recommended mounting height of 2.5 meters. It includes an adjustable light sensor from 5 to 1000 lux and a run-on time from 10 seconds to 30 minutes. Connection is via screw terminals, and the unit is designed for standard flush-mounted boxes with an installation depth of approximately 30 mm.

What stands out

• 360° detection angle with 6 m diameter coverage
• Adjustable brightness threshold: 5–1000 lux
• Run-on time configurable from 10 s to 30 min
• Supports LED loads up to 200 W
• Low standby consumption under 0.5 W
• Flush-mounted design for standard boxes

Technical details

• Detection technology: Passive Infrared (PIR)
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 200 W
• Standby power consumption: < 0.5 W
• Light sensor range: 5–1000 lux (adjustable)
• Time delay: 10 s – 30 min (adjustable)
• Output channels: 1
• Protection class: IP20
• Ambient temperature: -5 °C to +45 °C
• Connection: screw terminals
• Series: BasicLINE Mini
• Mounting: flush-mounted
• Installation depth: approx. 30 mm

Our verdict

A reliable presence detector for automatic lighting control in indoor areas, offering flexible settings and efficient LED switching.
