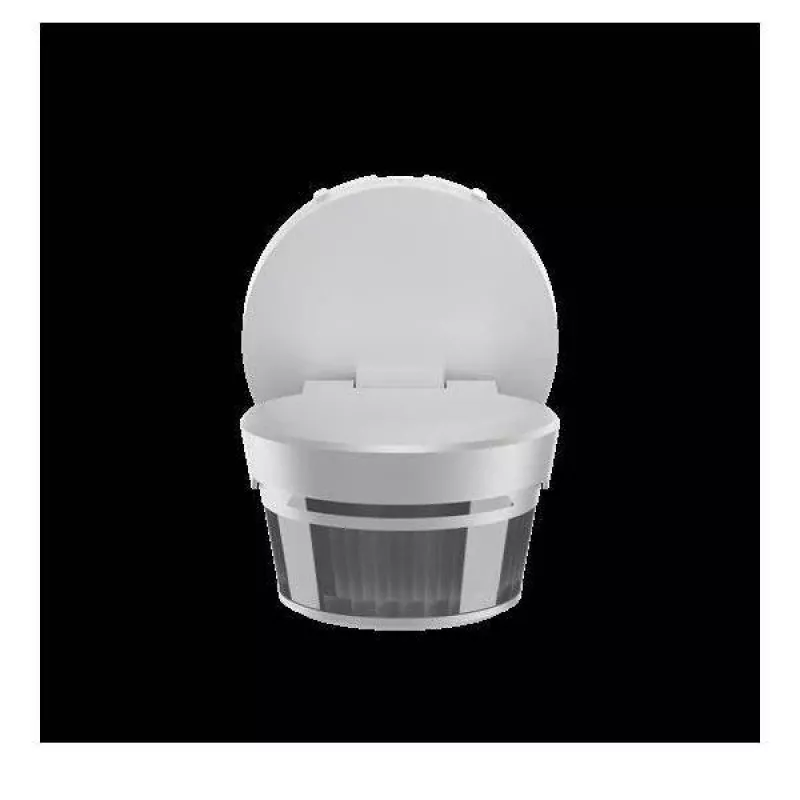

BUSCH-JAEGER Busch-Wächter 90° BT prateado alumínio Detetor de movimento (2CKA006800A3063)

The Busch-Wächter 90° BT stands out with its precise 90° detection angle and integrated Bluetooth connectivity, allowing configuration via the Busch-Jaeger app. Unlike standard motion detectors, it offers adjustable twilight threshold and time delay, plus presence simulation for enhanced security.

Highlights

• Passive infrared (PIR) sensor with 90° detection angle and 8 m range
• Bluetooth for app-based settings (iOS/Android)
• Adjustable twilight threshold (5–1000 lux) and time delay (10 s–30 min)
• Supports short-term presence, staircase light function, and presence simulation
• Flush-mounted design in aluminium silver, compatible with Busch-Jaeger switch ranges

In daily use

Ideal for hallways, staircases, and entrances, this detector switches lighting automatically based on movement and ambient light. The app allows fine-tuning without manual adjustment, and the presence simulation deters intruders when away.

Full specifications

• Detection technology: Passive Infrared (PIR)
• Detection angle: 90°
• Detection range: 8 m
• Connectivity: Bluetooth
• Operating voltage: 230 V AC, 50 Hz
• Max. switching capacity (resistive): 2300 W
• Max. switching capacity (LED): 200 W (max. 20 LEDs)
• Twilight threshold: 5–1000 lux (adjustable)
• Time delay: 10 s–30 min (adjustable)
• Colour: Aluminium silver
• Mounting type: Flush-mounted
• Housing material: Thermoplastic
• Operating temperature: -5 °C to +45 °C
• Mobile operating systems supported: iOS, Android

Final note

Configured via the free Busch-Jaeger app, this detector offers flexibility and smart control for modern homes.
