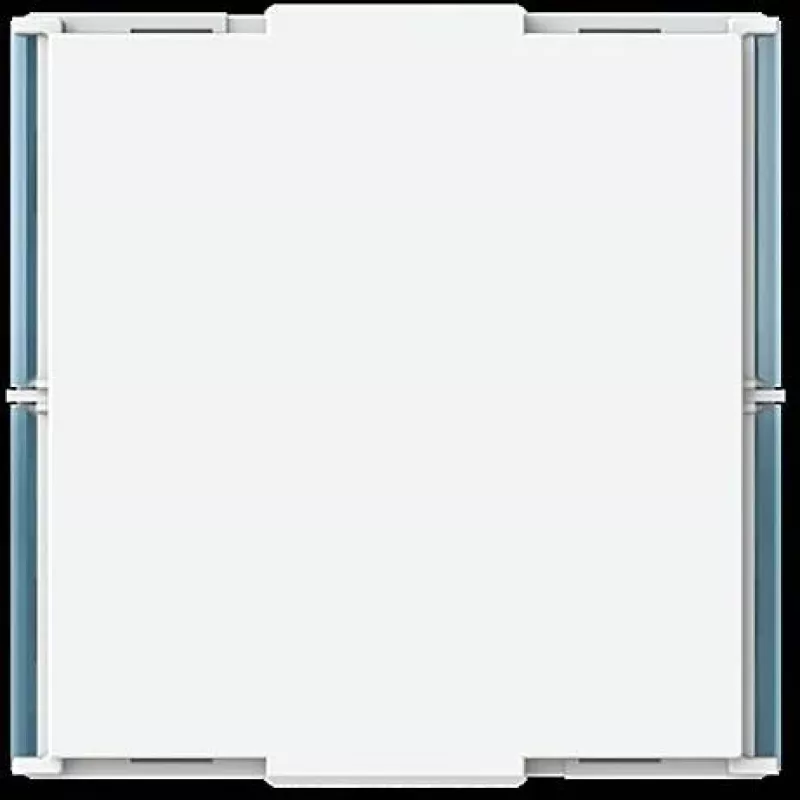

BUSCH-JAEGER KNX Elemento de comando com teclado 1-4 funções, branco estúdio, montagem encastrada (2CKA006115A0509)

Configurable for 1 to 4 control functions, this KNX keypad from Busch-Jaeger delivers flexible switching, dimming, blind control, value transmission, scene recall, and sequence control in a compact flush-mounted design. It operates on standard KNX bus voltage (21-30V DC) with a current consumption of approximately 10 mA.

Overview

The Busch-Jaeger Keypad Control Element KK/U4.70.11 is a modular KNX device designed for integration into Busch-Jaeger cover frames (1-gang to 5-gang). It features integrated status LEDs that can be configured via ETS, providing clear visual feedback for each function. The unit is made of break-proof thermoplastic in Studio White, ensuring durability and a clean aesthetic.

What stands out

• Supports 1 to 4 independently configurable control functions
• Integrated LEDs for status indication, configurable in ETS
• Flush-mounted installation with a shallow depth of approximately 25 mm
• Compatible with a wide range of Busch-Jaeger cover frames
• Operates on KNX bus, no separate power supply needed

Technical details

• Product type: KNX Keypad Control Element
• Bus system: KNX (TP)
• Number of control functions: 1 to 4 (configurable)
• Mounting type: Flush-mounted
• Colour: Studio White
• Material: Thermoplastic, break-proof
• Operating voltage: 21-30V DC (KNX bus)
• Current consumption: approx. 10 mA
• IP protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Configuration software: ETS
• Connection type: KNX bus terminal
• Installation depth: approx. 25 mm
• Design: Modular, requires separate cover frame

Our verdict

A versatile and reliable KNX keypad that offers flexible control options in a compact, flush-mounted form factor. Its compatibility with standard Busch-Jaeger frames and ETS configuration makes it a solid choice for building automation projects.
