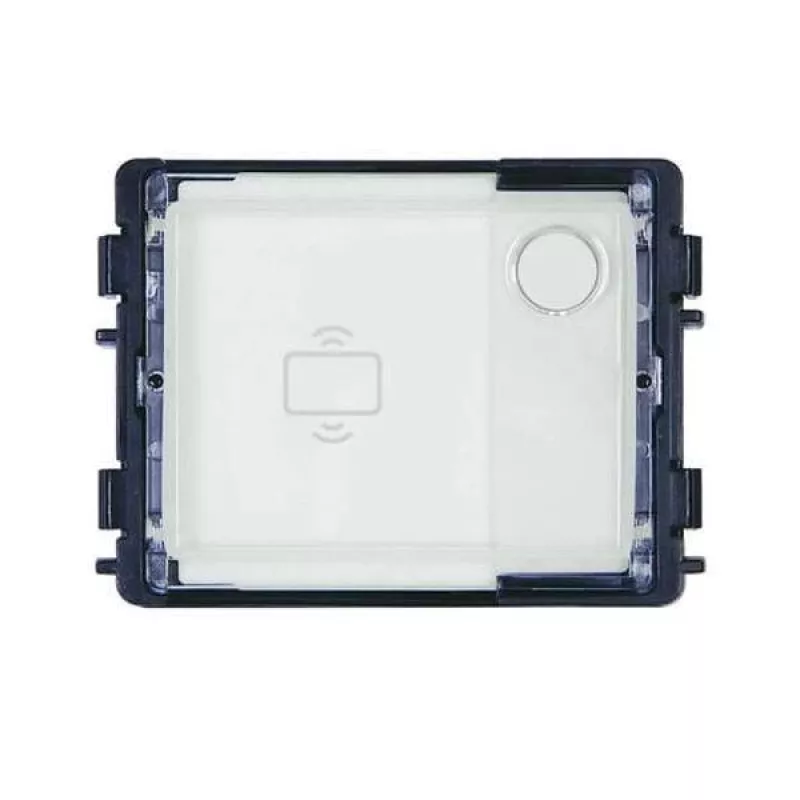

Busch-Jaeger Módulo de botão RFID 1 função free@home 51382RP1-03 (2TMA130160N0026)

Access control in smart buildings often requires separate card readers and keypads, complicating installation and user experience. The Busch-Jaeger RFID Button Module 1-gang integrates RFID reading and switching into a single flush-mounted unit for the free@home system, enabling secure, keyless entry and control with a simple tap of a transponder.

Who is it for

This module is ideal for electricians and system integrators installing Busch-Jaeger free@home in residential or commercial buildings, where users need convenient access control at doors or activation of scenes and functions using RFID cards or tags.

Main features

• 1-gang RFID button module for free@home bus system
• Reads MIFARE Classic and MIFARE DESFire transponders at 13.56 MHz
• Supports up to 64 transponders for flexible user management
• Status LED for visual feedback
• Flush-mounted design for clean integration with Busch-Jaeger cover plates and frames

Specifications

• Product type: RFID button module
• System compatibility: Busch-Jaeger free@home
• Function: Access control, switching functions
• Number of gangs: 1
• RFID frequency: 13.56 MHz
• Supported transponders: MIFARE Classic, MIFARE DESFire
• Power supply: free@home bus voltage (24 V DC)
• Current consumption: 20 mA
• Mounting type: Flush-mounted
• Operating temperature: 5 °C to 45 °C
• Protection class: IP20
• Number of transponders: Up to 64
• Programming: Via free@home System Access Point / App
• Bus system: free@home bus
• Display: Status LED
• Material: Plastic
• Colour: Black/Grey

Tips

Pair this module with a compatible Busch-Jaeger cover plate and frame (e.g., future® linear, carat®, solo®) for a complete installation. Configure transponder access through the free@home app for easy user management.
