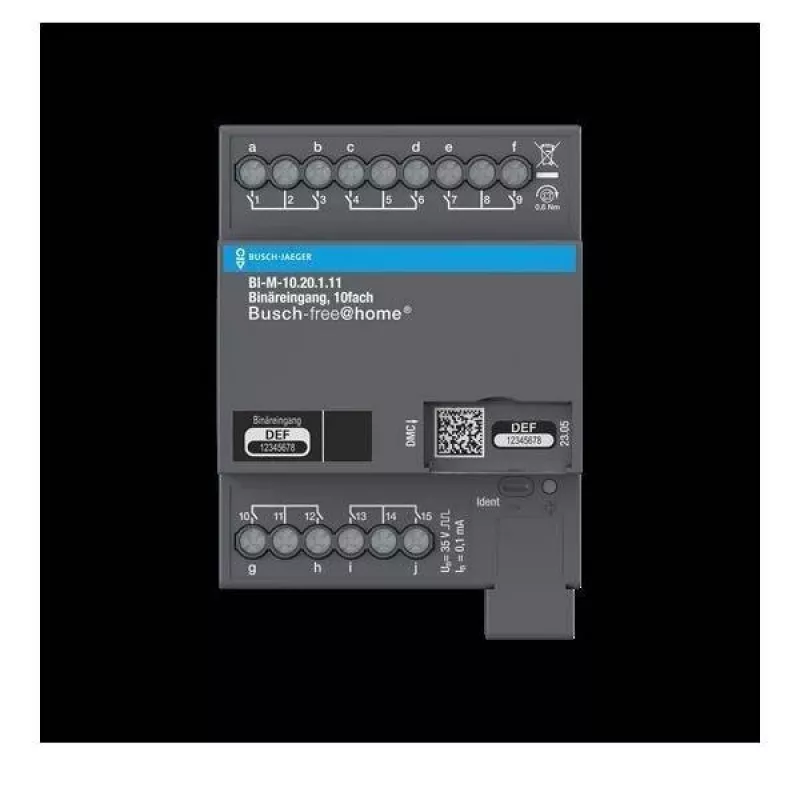

BUSCH-JAEGER Módulo de entrada binária BI-M-10.20.1.11, 10 canais KNX, calha DIN 2CDG510015R0021

Binary input module for KNX bus systems with 10 potential-free contact inputs. Each input can be configured for switching, dimming, blind control, value transmission, scene recall, counting, or sequence control. The module mounts on a DIN rail and occupies 4 module units (TE).

Advantages

Flexible configuration via ETS software. Screw terminals for inputs and bus terminal for KNX connection. Low current consumption of less than 10 mA from the KNX bus.

Suitable for

• Integration of conventional switches, pushbuttons, or relay contacts into KNX installations
• Building automation projects requiring multiple binary inputs in a compact DIN rail device

Key specifications

• Number of inputs: 10
• Input type: potential-free contacts
• Mounting: DIN rail (MDRC)
• Module width: 4 TE
• Power supply: KNX bus
• Protection class: IP20
• Operating temperature: -5 °C to +45 °C
• Storage temperature: -25 °C to +55 °C
• Relative humidity: max. 95% non-condensing
• Installation depth: approx. 64 mm
• Max. input cable length: 100 m
• Current consumption: < 10 mA

Recommendations

Use with ETS software version 4 or higher for full functionality.
