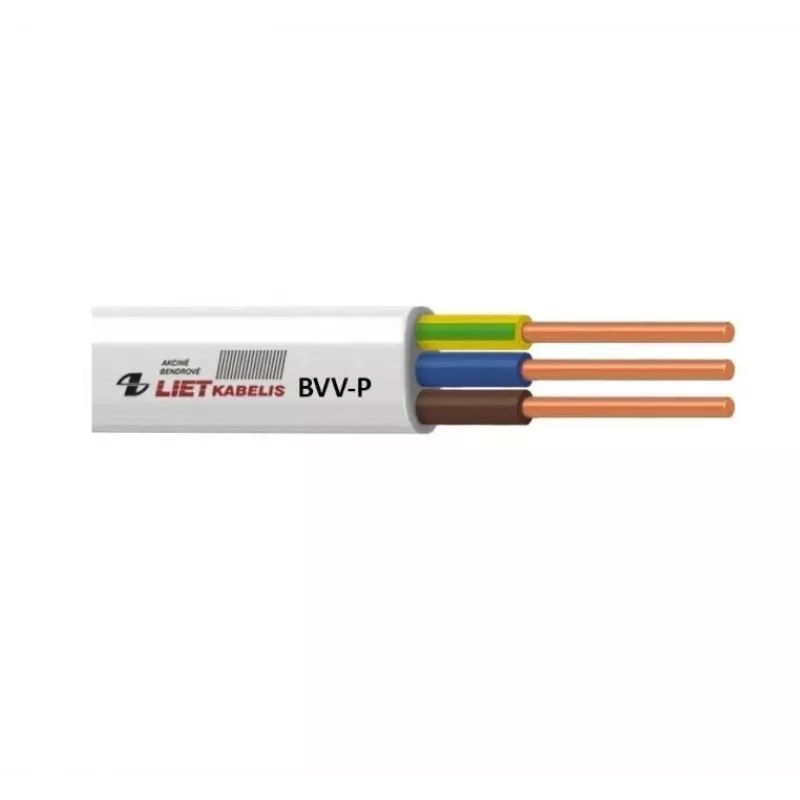

BVV-P 3x2,5 mm² Cabo elétrico de PVC branco 50m

The BVV-P 3x2.5 mm² White PVC Power Cable is a high-quality flat cable designed for fixed installations in dry or damp environments. With three solid copper conductors, each 2.5 mm², this cable ensures reliable power distribution for residential and commercial applications. Its white PVC sheath provides durability and flame retardancy, complying with EN 60332-1-2.

Advantages

This cable offers easy installation due to its flat profile, making it ideal for running under plaster or in conduits. The solid copper conductors provide excellent conductivity and long-term reliability. Rated for 300/500 V and operating temperatures up to +70°C, it is suitable for a wide range of electrical installations.

Suitable for

• Fixed wiring in dry and damp rooms
• Under plaster installation
• Conduit and cable trunking systems
• Lighting and power circuits

Key specifications

• Cable Type: BVV-P (PVC Insulated, PVC Sheathed Flat Cable)
• Number of Cores: 3
• Conductor Cross-Section: 2.5 mm²
• Conductor Material: Electrolytic Copper (Solid)
• Insulation: PVC
• Sheath: PVC, White
• Length: 50 meters
• Rated Voltage: 300/500 V
• Max. Operating Temperature: +70°C
• Flame Retardant: Yes (EN 60332-1-2)
• Approx. Outer Dimensions: 5.5 x 12.5 mm

Recommendations

For optimal performance, ensure the cable is installed in accordance with local electrical codes. Suitable for use in dry and damp environments, but not for direct burial or outdoor exposure without additional protection.
