Cabeça de atuador haste individual Siemens 3SE5000-0AB01

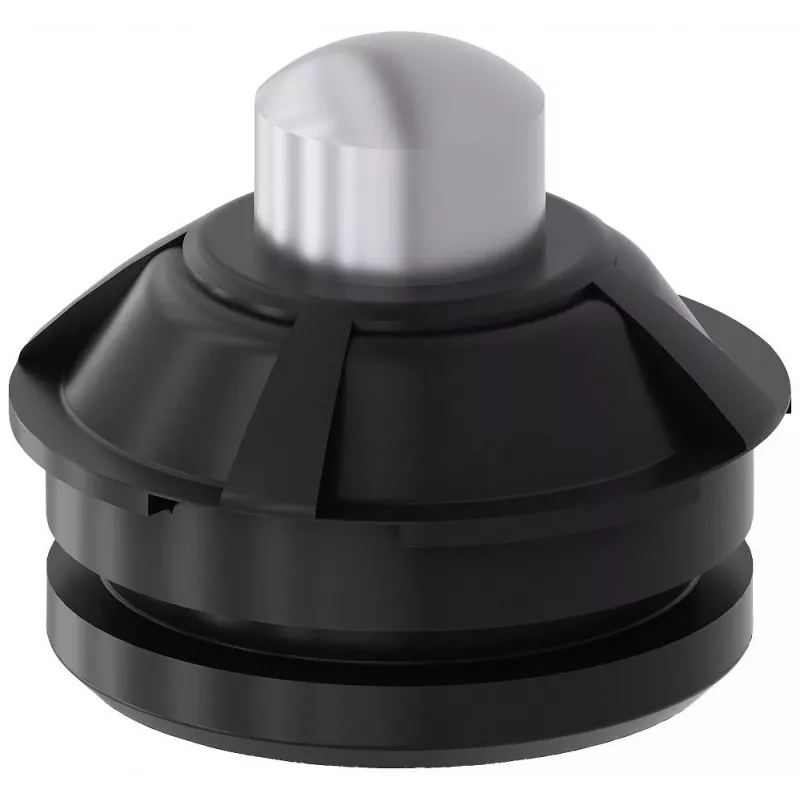

Actuator head for position detection with a single plunger design, engineered for industrial automation and machinery safety. The metal head mounts directly onto Siemens 3SE5 basic switches, providing a robust mechanical interface with an operating point of 2.5 mm and total travel of 8 mm.

Advantages

High mechanical service life of 15 million operating cycles ensures long-term reliability in demanding environments. The plunger approach from above allows straightforward integration into existing setups. Operating temperature range from -25 to +80 °C supports use in a wide variety of industrial conditions.

Suitable for

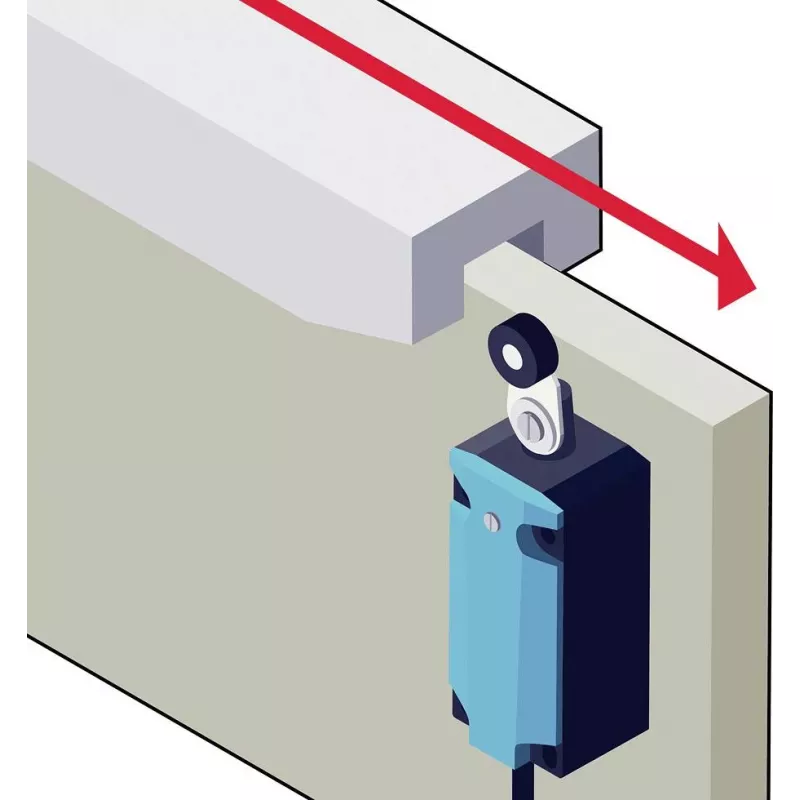

• Position detection in automated machinery
• Safety applications requiring durable actuator heads
• Replacement or expansion of Siemens SIRIUS 3SE5 switch systems

Key specifications

• Product type: Actuator head
• Actuator design: Plunger, single
• Series: SIRIUS 3SE5
• Material: Metal

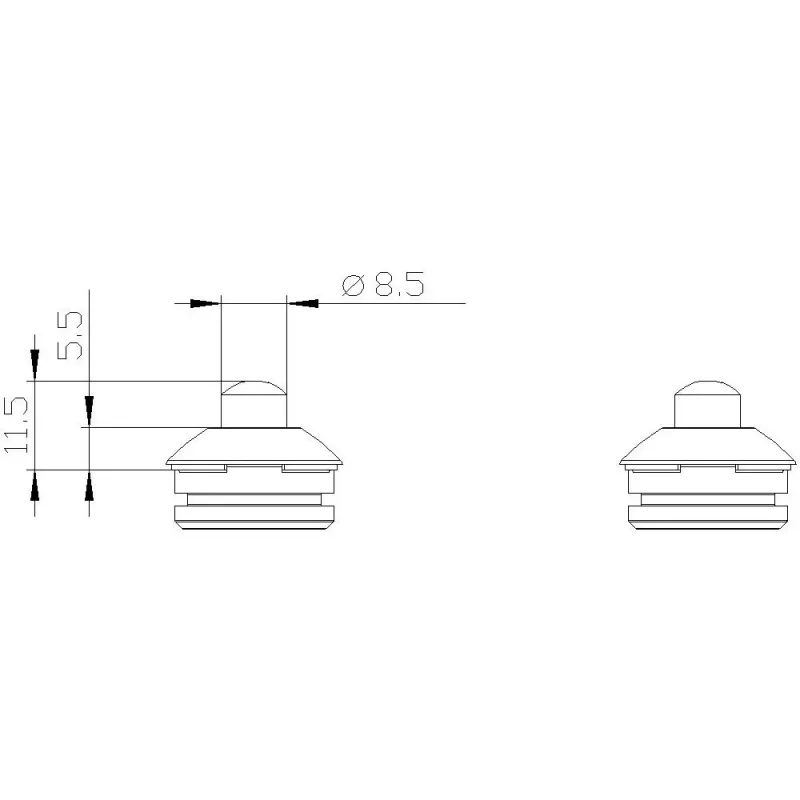

• Operating point (pre-travel): 2.5 mm
• Over-travel: 5.5 mm
• Total travel: 8 mm
• Ambient operating temperature: -25 to +80 °C
• Mechanical service life: 15 million operating cycles
• Mounting type: Screw mounting to basic switch

Recommendations

Pair with Siemens 3SE5 basic switches for a complete position detection solution. Verify compatibility with your specific switch model before installation.
