Cabeça de impressão por transferência térmica Zebra P1083347-006

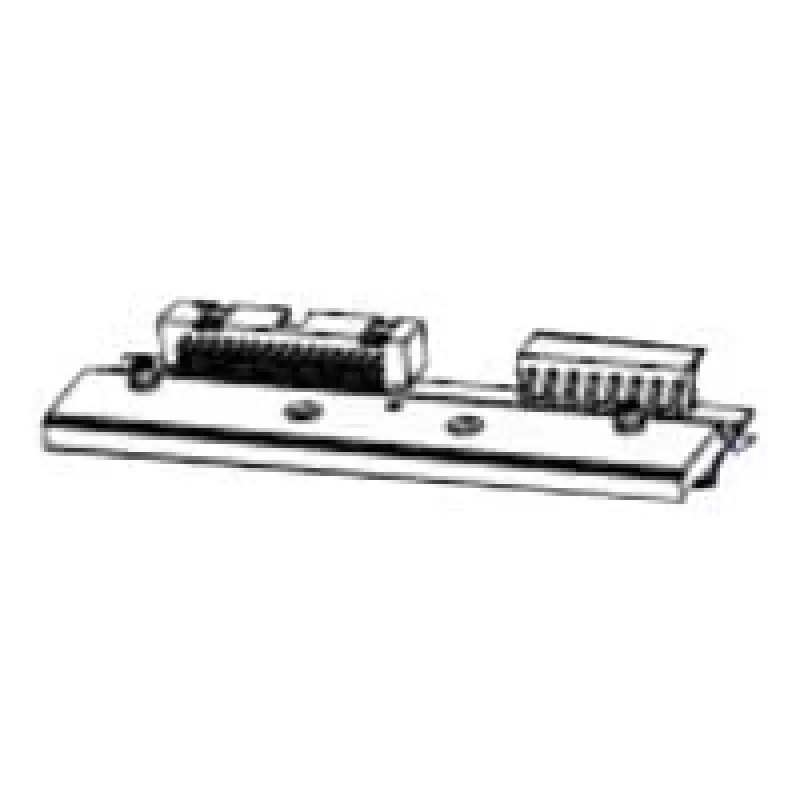

The Zebra P1083347-006 print head is designed for thermal transfer printing and is compatible with Zebra ZT510 printers. It provides a print resolution of 300 x 300 DPI, enabling sharp text and clear barcode reproduction. This replacement print head maintains consistent contact with media and ribbon to ensure reliable image transfer and steady print quality across long production runs.

Advantages

The print head delivers a high optical resolution of 300 x 300 DPI for precise label and barcode printing. It is engineered to meet the mechanical and thermal requirements of Zebra ZT510 series printers, helping to restore factory-level performance when a worn or damaged head is replaced. The component is optimized for thermal transfer media and ribbons, contributing to longer uptime and predictable output consistency.

Suitable for

• Replacing worn or damaged print heads in Zebra ZT510 thermal transfer printers
• High-resolution label printing including barcodes, small text and detailed graphics
• Continuous industrial or warehouse labeling where consistent quality is required

Key specifications

• Technology: thermal transfer print head
• Resolution: 300 x 300 DPI
• Compatibility: designed for Zebra ZT510 series printers
• Intended use: replacement part for label and barcode printing
• Form factor: industrial print head size and mounting to match ZT510 mechanics

How to use

Power off the printer and follow the manufacturer’s service instructions to access the existing print head. Remove the old print head carefully, avoiding contact with the ceramic or heating elements. Install the replacement head in the correct orientation and secure it according to the printer’s guidance. After installation, calibrate print head alignment and perform a test print to verify ribbon tension, media feeding, and print quality.

Recommendations

Use recommended thermal transfer ribbons and label stocks to maximize print head life. Regularly clean platen rollers and the print head surface with appropriate cleaning supplies to remove residue and particulate. Observe operating limits for temperature and power cycles as specified in the ZT510 service documentation to prevent premature wear.
