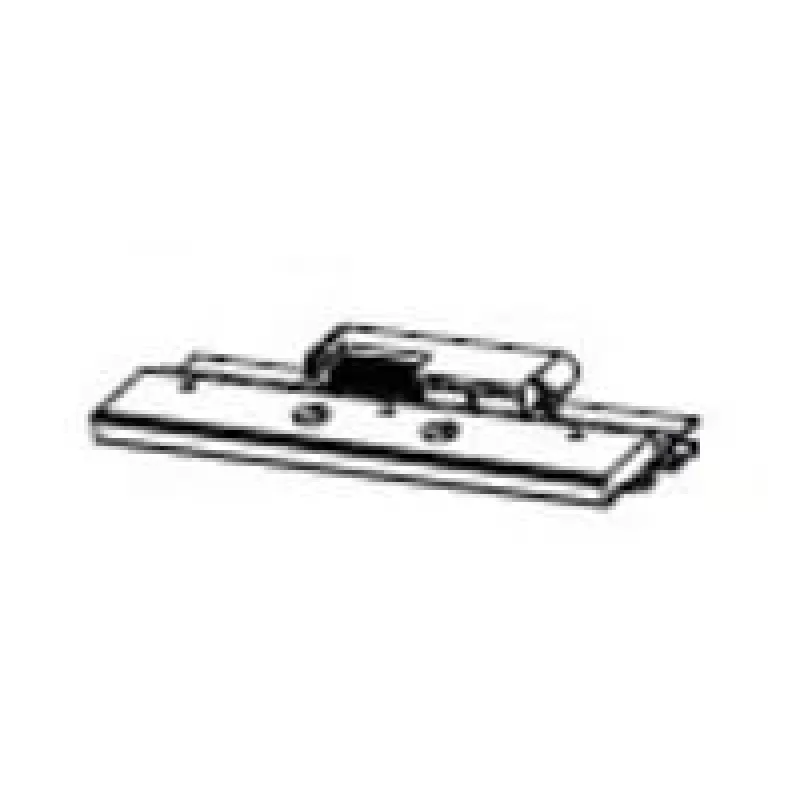

Cabeça de impressão Zebra P1083320-016

The Zebra P1083320-016 print head is designed for use with the Zebra ZT620 industrial label printer and provides a native print resolution of 300 x 300 DPI. Engineered for thermal transfer and direct thermal printing workflows, this print head delivers fine text, barcodes and graphics with consistent clarity. It is suitable for continuous, die-cut and black-mark media types commonly used in logistics, manufacturing and retail environments.

Advantages

This print head offers high-definition imaging at 300 x 300 DPI to produce sharp barcodes and small-font text, supporting reliable scanning and accurate data capture. Built to meet industrial-duty requirements, it provides stable print quality over long production runs and helps reduce reprints and waste. Compatibility with the Zebra ZT620 ensures straightforward replacement and alignment with the printer's firmware and sensor systems.

Suitable for

• Label printing in warehousing and logistics
• Production line and manufacturing labeling
• Retail price labels and inventory tags
• Printing small-font text, fine barcodes and high-detail graphics

Key specifications

• Printer compatibility: designed for Zebra ZT620 series
• Resolution: 300 x 300 DPI
• Print technology: thermal transfer / direct thermal
• Application environment: industrial and commercial label production
• Media types supported: continuous, die-cut, black-mark labels

How to use

Install the print head following the Zebra ZT620 service manual instructions: power off the printer, open the print mechanism, remove the old head if present and align the replacement print head into the designated carriage. Reconnect any electrical connectors and close the print mechanism. After physical installation, run a calibration and head test from the ZT620 control panel to verify alignment and print quality. Use appropriate thermal transfer ribbons and media compatible with 300 x 300 DPI to achieve optimal results.

Recommendations

To prolong the life of the print head and maintain consistent print quality, use recommended media and cleaning supplies, perform routine head cleaning according to Zebra guidelines, avoid excessive pressure or misaligned media, and schedule inspections during high-volume operation. Replace the print head if print defects persist after cleaning and calibration.
