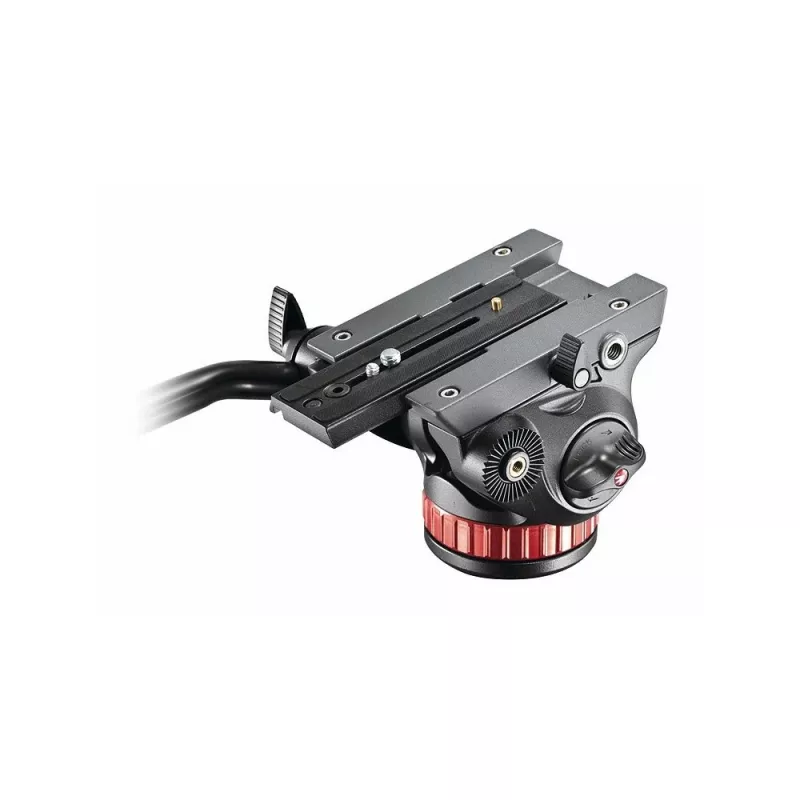

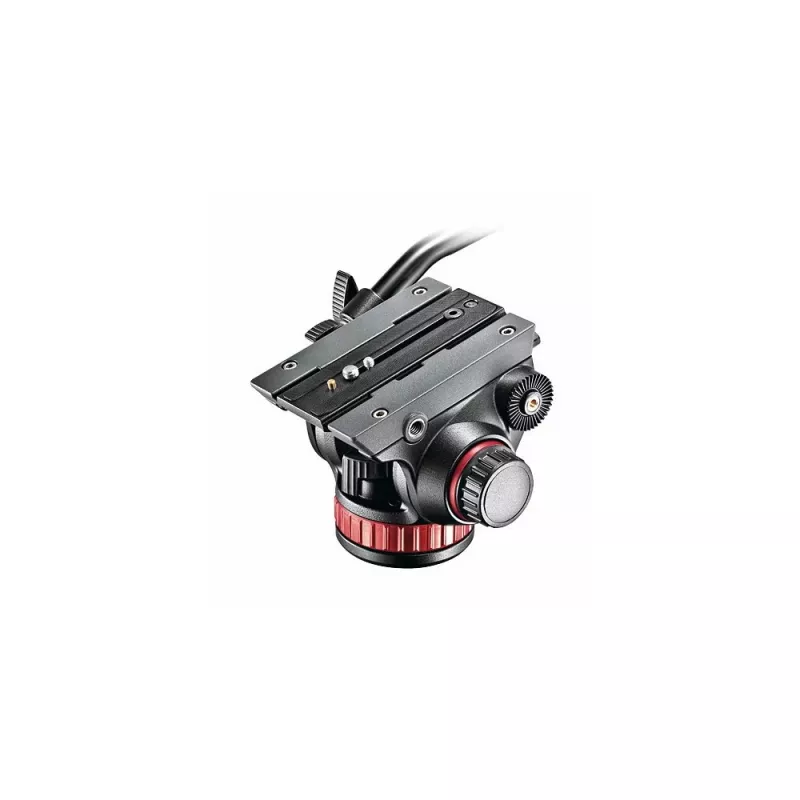

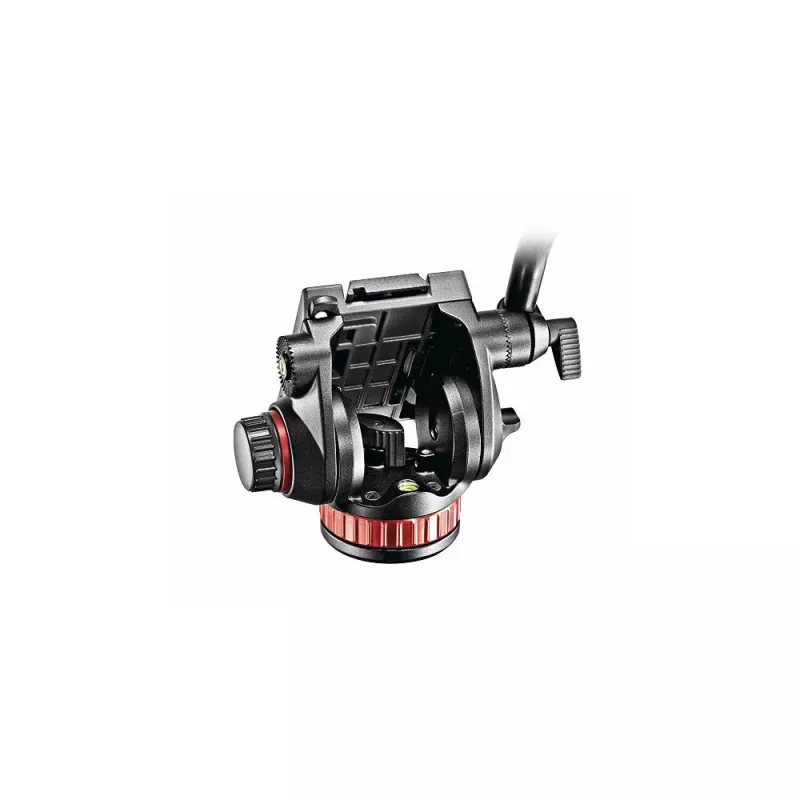

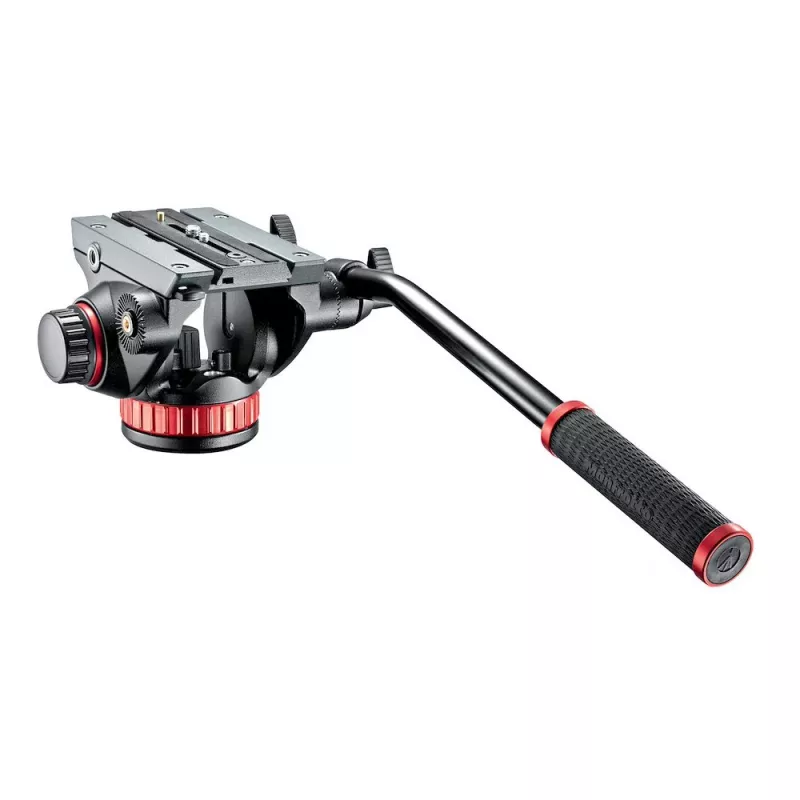

Cabeça de vídeo fluida Manfrotto MVH502AH com base plana, carga útil de 4 kg, base de 75 mm, preto

Jerky pans and tilts can ruin even the best footage. The Manfrotto MVH502AH fluid video head eliminates unwanted movement, giving you buttery-smooth camera control for professional results. With a 4kg payload and a flat base, it's the reliable core of any serious video setup.

Who is it for

Videographers and content creators using DSLR, mirrorless, or compact video cameras will appreciate the MVH502AH. It's especially suited for tripods with a flat base and a 3/8"-16 mounting screw. Whether shooting interviews, weddings, or run-and-gun footage, this head delivers the control and durability required for professional work.

Main features

• Fluid Drag System: Continuously adjustable pan and tilt drag let you fine-tune resistance for smooth, controlled movements.
• Fixed Counterbalance: A built-in spring counterbalance supports up to 4kg, keeping your camera balanced and preventing unexpected drops.
• Wide Tilt Range: Tilt from -80° to +90° for flexible high and low angle shots.
• Easy Link Mounts: Two 3/8"-16 threaded holes allow direct attachment of accessories like monitors or lights.
• Long Camera Plate: The included 504PLONG quick release plate offers an 83mm sliding range for optimal balance adjustment.
• Left or Right Pan Bar: The pan bar can be attached to either side via two rosettes, accommodating left- or right-handed users.

Specifications

• Head Type: Fluid Video Head
• Base Type: Flat Base
• Base Diameter: 75 mm
• Payload Capacity: 4 kg (8.8 lbs)
• Counterbalance System: Fixed Spring
• Counterbalance Weight: 4 kg (8.8 lbs)
• Tilt Drag: Continuously Adjustable
• Pan Drag: Continuously Adjustable
• Tilt Range: -80° to +90°
• Pan Range: 360°
• Quick Release Plate Type: Manfrotto 504PLONG
• Camera Plate Sliding Range: 83 mm
• Accessory Mounts: 2x 3/8"-16 Easy Link threaded holes
• Material: Aluminum
• Operating Temperature: -20°C to 60°C (-4°F to 140°F)
• Bubble Level: Yes (1)
• Pan Bar Included: Yes (1)
• Pan Bar Attachment: 2 rosettes for left/right hand use
• Color: Black
• Tripod Compatibility: Tripods with 3/8"-16 mounting screw

Tips

For best results, balance your camera on the plate before adjusting the counterbalance. Use the sliding range to align the centre of gravity, then fine-tune the fluid drag to match your shooting style. The Easy Link mounts are perfect for adding a monitor or LED light without extra rigging.
