Cabo adaptador de transdutor para motor de troll Garmin MotorGuide, 4 pinos para 8 pinos, 12 ft

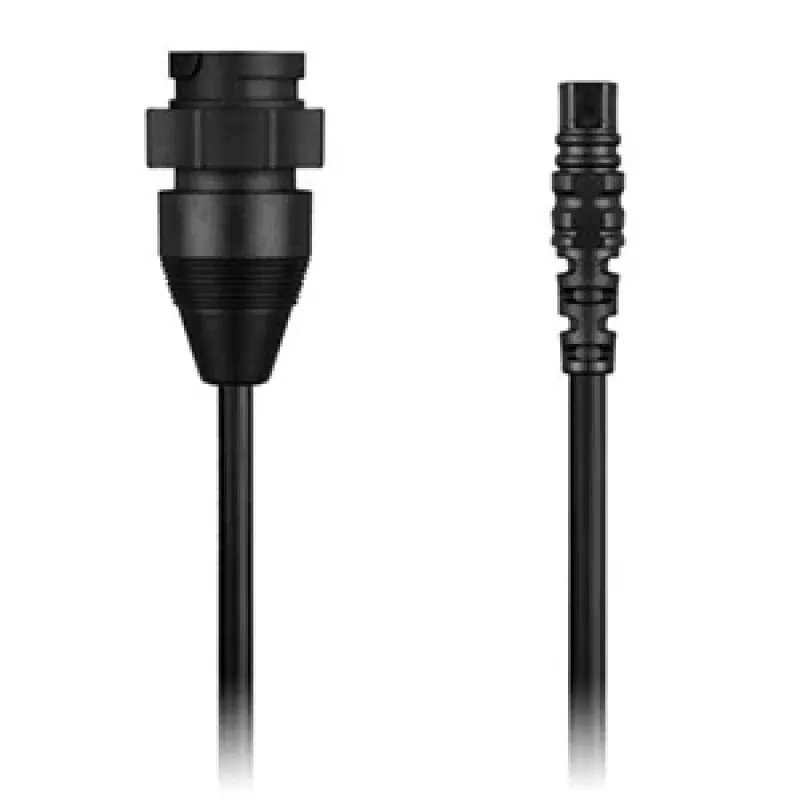

Sonar adapter cable that bridges the built-in transducer of MotorGuide Xi3 and Xi5 trolling motors to Garmin echoMAP and GPSMAP chartplotters with an 8-pin transducer port. It delivers traditional 2D sonar directly from the trolling motor to the display, eliminating the need for a separate transom mount and ensuring clean, interference-free depth and fish readings at the bow.

Advantages

Plug-and-play installation with marine-grade connectors rated IPX7 for water resistance. The 12 ft (3.66 m) shielded cable routes easily through boat rigging tubes and compartments, maintaining signal integrity in both freshwater and saltwater. Compatible with a wide range of Garmin echoMAP CHIRP, ECHOMAP Plus, UHD, Ultra, and GPSMAP models featuring an 8-pin transducer input.

Suitable for

• Anglers using MotorGuide Xi3 or Xi5 trolling motors with built-in 4-pin sonar transducers
• Boaters who want bow-mounted sonar without installing a separate transducer
• Garmin echoMAP and GPSMAP users seeking a direct connection to their trolling motor's sonar
• Freshwater and saltwater fishing applications

Key specifications

• Connector A: 8-pin Garmin transducer connector
• Connector B: 4-pin MotorGuide trolling motor transducer connector
• Cable length: 12 ft (3.66 m)
• Sonar support: Traditional 2D sonar
• Water resistance: IPX7 connectors
• Material: Marine-grade cable and connectors
• Shielding: Yes, for reduced interference
• Operating temperature: -15°C to 70°C
• Warranty: 1 year

Recommendations

For optimal performance, ensure the trolling motor's built-in transducer is compatible with traditional 2D sonar. This adapter does not support CHIRP, DownVü, or SideVü sonar technologies. Route the cable away from high-current wires to minimize electromagnetic interference.
