Cabo adaptador helos jack 3,5 mm para 2x fichas 3,5 mm modelo 288716

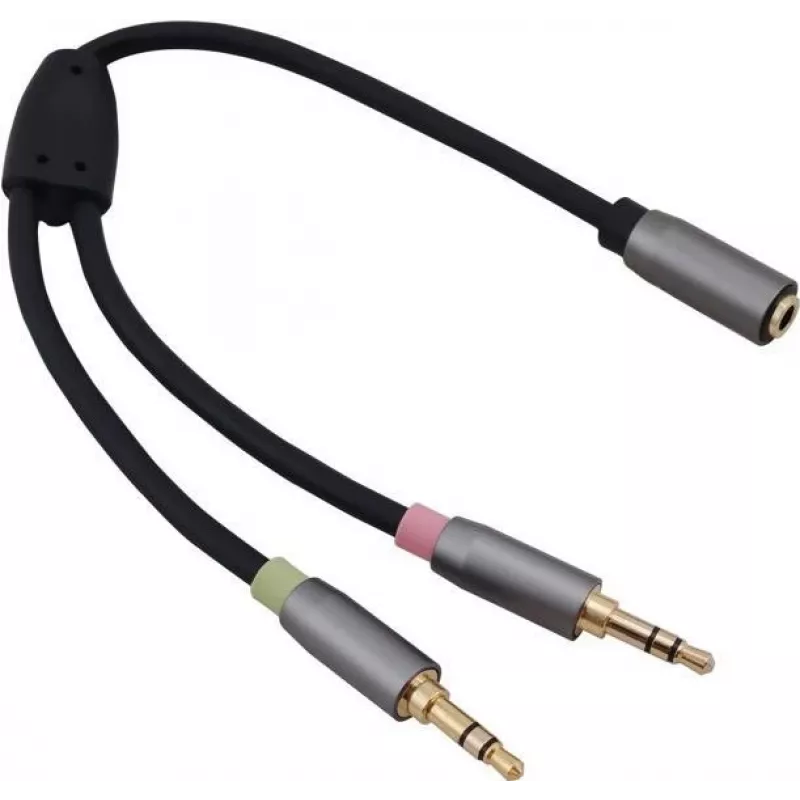

helos adapter cable model 288716 converts a single 3.5 mm socket into two 3.5 mm plugs, enabling connection of two audio devices or separation of headphone and microphone signals. The cable is designed for wired audio routing between headphones, speakers or auxiliary inputs and features an aluminum housing with gold-plated contacts. It complies with ROHS 2.0 and REACH standards and is finished in black.

Advantages

This PREMIUM adapter cable provides a durable aluminum housing and gold-plated contacts for reliable signal transmission and corrosion resistance. The compact design supports easy placement and plugging, while compliance with ROHS 2.0 and REACH ensures material safety and regulatory conformity.

Suitable for

• Splitting a single 3.5 mm audio output into two 3.5 mm plugs
• Connecting headphones and microphone separately to a combined socket
• Routing audio to two devices such as speakers or recording equipment

Key specifications

• Model: 288716
• Connector input: 1× 3.5 mm socket (female), 3-pin
• Connector outputs: 2× 3.5 mm plugs (male)
• Housing: aluminum
• Contacts: gold-plated
• Color: black
• Standards: ROHS 2.0 and REACH compliant
• Brand: helos
• Category: Audio / Video cables

How to use

Insert the single 3.5 mm plug from the source device into the female 3.5 mm socket of the adapter. Plug the two 3.5 mm male connectors into the target devices (for example headphones and microphone or two speaker inputs). Ensure connectors are fully seated to maintain proper contact. If routing audio between devices, check volume levels before playback to avoid sudden loud output.

Recommendations

Use the adapter for short to moderate cable runs and in stationary setups; avoid excessive bending or pulling at the connector junctions to prolong service life. For mobile use, keep the adapter protected from moisture and heavy mechanical stress.
