Cabo adaptador KVM ATEN USB - VGA para Cat5e/6 (módulo CPU)

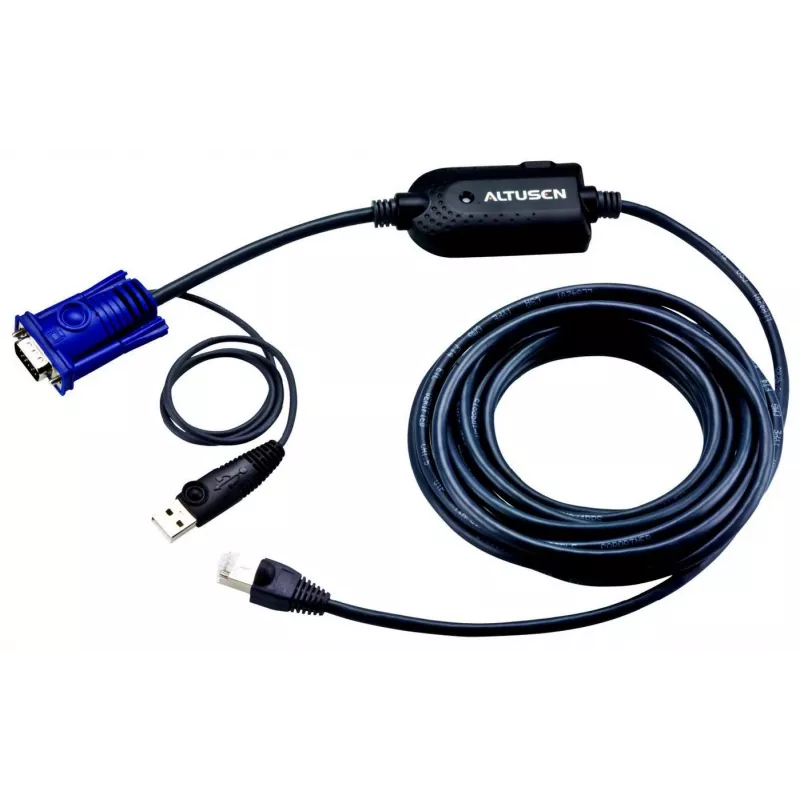

The ATEN KA7970 KVM cable (CPU module) is a 4.5 m USB–VGA to Cat5e/6 adapter cable designed to connect computers to compatible ATEN KVM switches. It integrates keyboard and mouse emulation, supports high-resolution video over the built-in 4.5 m Cat5 cable, and provides hot-pluggable connectivity for easy addition or removal of systems without powering down the switch. The compact black cable is compatible with a range of ATEN KVM switches and is supplied as a single KA7970 CPU module.

Advantages

Keyboard and mouse emulation maintains server functionality when a unit is disconnected or moved between KVM ports. The cable supports video resolutions up to 1600 x 1200 at distances up to 4.5 m and offers lifetime firmware upgrades. Hot-pluggable design allows system changes without shutdown. The integrated 4.5 m Cat5 cable simplifies installation and cabling.

Suitable for

• Connecting servers and PCs to ATEN KVM switches in data centers and server rooms
• Remote rack-mounted systems requiring keyboard and mouse emulation
• Environments where hot-plugging of computers is needed

Key specifications

• Model: ATEN KA7970
• Function: USB–VGA to Cat5e/6 KVM adapter (CPU module)
• Cable length: 4.5 m (built-in Cat5 cable)
• Supported video: up to 1600 x 1200 resolution at up to 4.5 m
• Hot pluggable: yes
• Keyboard & mouse emulation: yes
• Colour: Black
• Package contents: 1 × KA7970 USB KVM Adapter Cable (CPU Module)

How to use

Connect the KA7970 CPU module to the computer’s USB and VGA ports, then plug the Cat5 end into the matching port on the ATEN KVM switch. Ensure the cable is fully inserted and secure at both ends. Once connected, the keyboard and mouse emulation takes effect automatically, and the KVM switch will recognize the computer. The cable supports hot-plugging, so computers can be connected or removed while the switch remains powered.

Recommendations

For optimal video quality maintain the 4.5 m cable length and use Cat5e/6 cabling in good condition; note that higher resolutions such as 1680 × 1050 (reduced blanking) and 1920 × 1200 (reduced blanking) are not supported by KA7xxxx KVM adapter cables.
