Cabo Bachmann H05VV-F 5G 2,5mm² branco 2 m

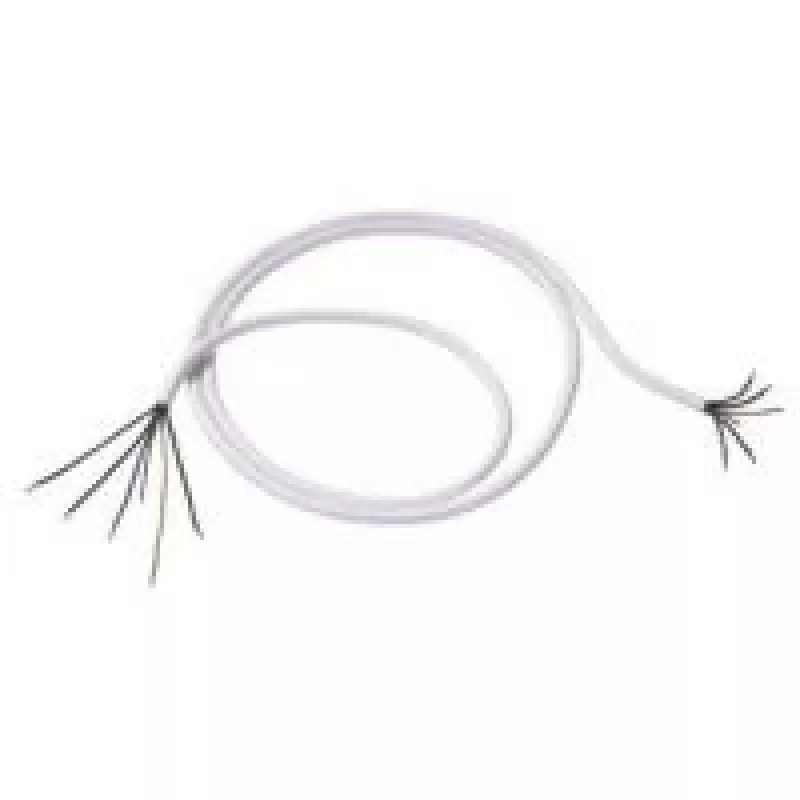

The Bachmann H05VV-F 5G 2.5mm² white cable, 2 m long, is a flexible appliance connection lead with five conductors and PVC insulation rated to 70°C. Designed for reliable power distribution, it combines a compact form and standard conductor cross-sections to suit a variety of electrical connections in domestic and light commercial equipment. The white outer sheath offers a neutral appearance while protecting the inner conductors.

Advantages

This cable provides five separately insulated conductors with a 2.5 mm² cross-section each, delivering stable conductivity and compatibility with common terminal blocks and appliance connections. The PVC sheath is heat-resistant up to 70°C and resists mechanical wear in typical installation environments. Supplied in a 2 m length, it is easy to route and terminate with crimped ferrules or suitable connectors.

Suitable for

• Appliance connection leads for cookers, ovens and similar household appliances
• Internal wiring of distribution boxes and terminal strips
• Power supply connections for small commercial equipment

Key specifications

• Brand: Bachmann
• Manufacturer part number (MPN): 119.271
• EAN: 4016514001057
• Cable type: H05VV-F
• Conductors: 5 cores
• Conductor cross-section: 2.5 mm² per core
• Length: 2 m
• Sheath material: PVC
• Maximum temperature rating: 70°C

How to use

Cut the cable to the required length and strip the outer sheath to expose the individual conductors. Fit appropriate Aderendhülsen (crimp ferrules) to each conductor if using screw terminals, then insert and tighten the conductors in the appliance or terminal block according to the equipment wiring diagram and applicable electrical standards. Ensure power is disconnected before working and verify secure mechanical and electrical connections after termination.

Recommendations

Use this H05VV-F 5G 2.5 mm² cable for fixed appliance connections where PVC-insulated flexible cable is permitted. Do not use in permanently exposed outdoor installations or where higher temperature ratings or flame-retardant properties are required. Follow local electrical codes and manufacturer's installation instructions.
