Cabo BlueOptics Ruckus 100G-Q28-Q28-C-0301 BlueLAN DAC QSFP28 compatível 3m

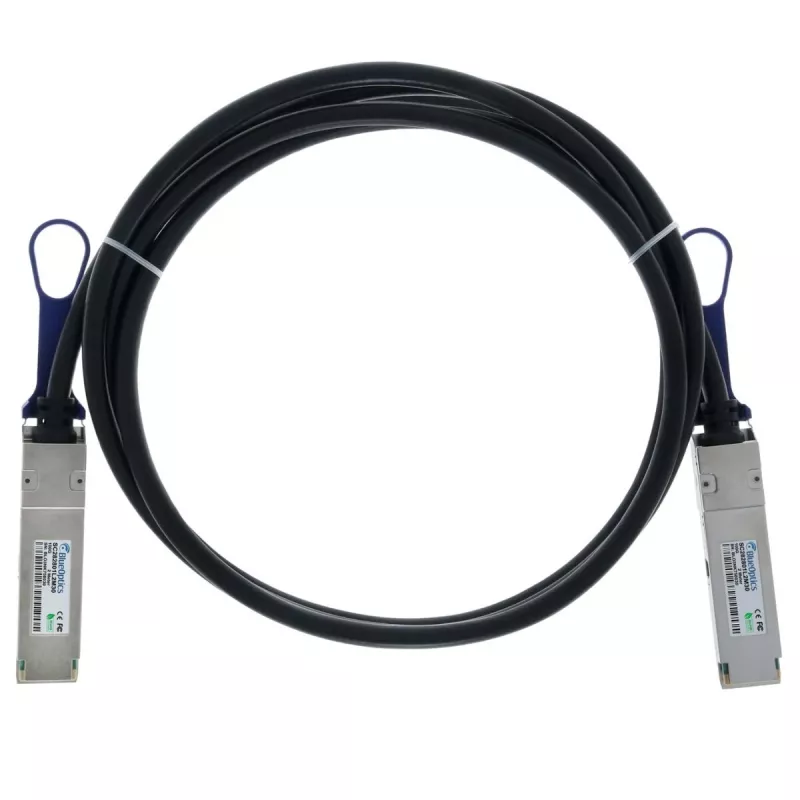

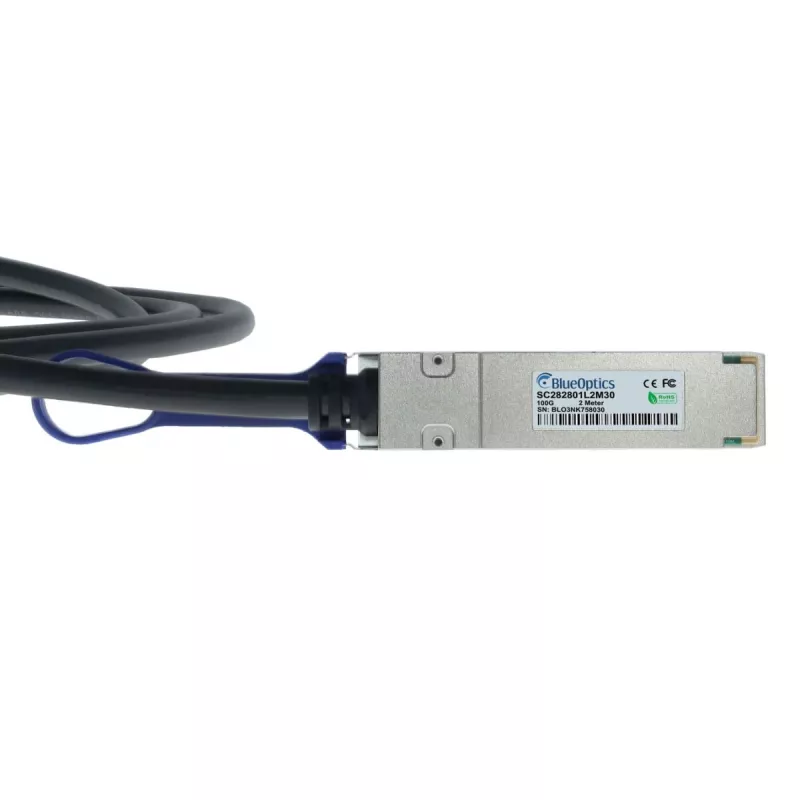

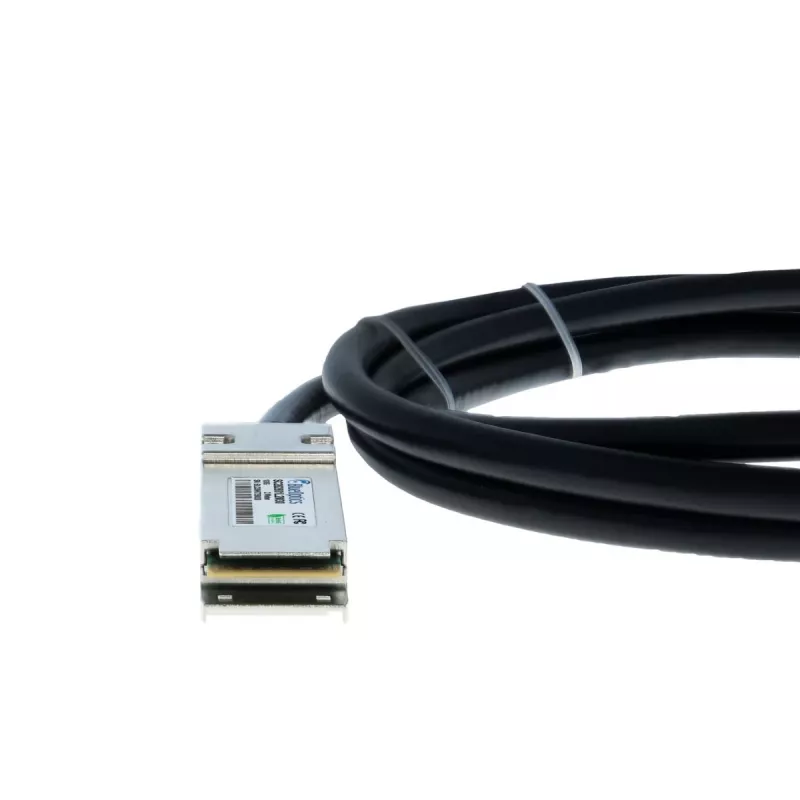

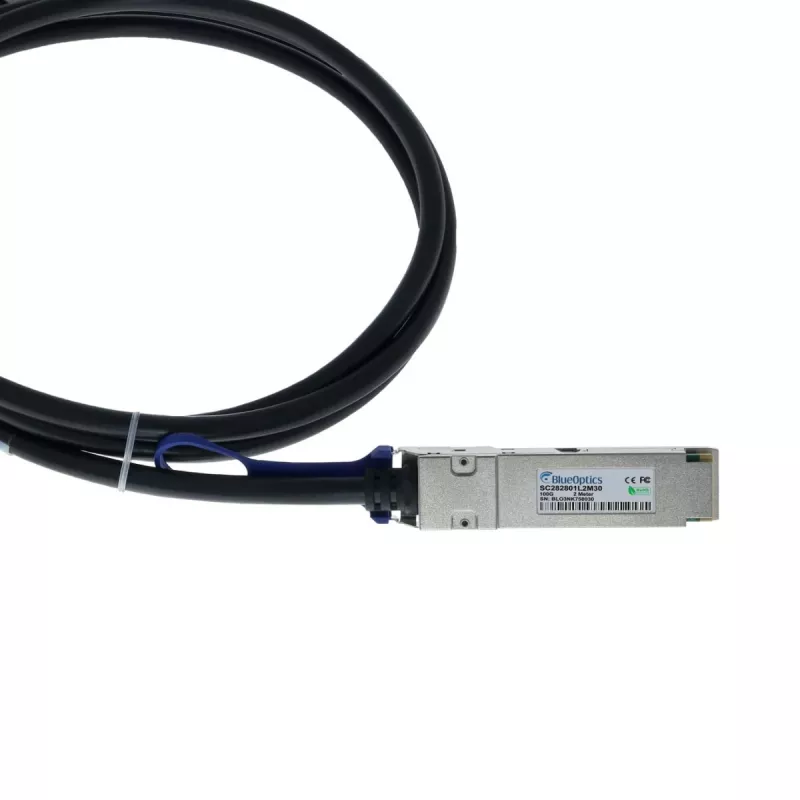

The BlueOptics Ruckus 100G-Q28-Q28-C-0301 compatible BlueLAN DAC QSFP28 Cable is a high-performance direct attach copper cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It provides a cost-effective, low-power solution for short-reach interconnects within data centers and enterprise networks.

Advantages

This passive copper cable offers reliable connectivity with minimal power consumption (<0.5W per end), hot-swappable QSFP28 connectors, and full compatibility with Ruckus equipment. Its 3-meter length is ideal for rack-to-rack or rack-to-switch connections.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise networking
• Ruckus 100G-Q28-Q28-C-0301 compatible systems

Key specifications

• Cable Type: Direct Attach Cable (DAC) / Twinax
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Cable Length: 3 meters
• Cable Material: Copper
• Transceiver Type: Passive Copper
• AWG: 26 AWG
• Protocol Support: IEEE 802.3bj (100GBASE-CR4), InfiniBand EDR
• Power Consumption: <0.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: SFF-8665, RoHS, CE, FCC, MSA Compliant
• Jacket Material: PVC
• Impedance: 100 Ohm

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 interfaces and 100GBASE-CR4 standards. This cable is a direct replacement for Ruckus 100G-Q28-Q28-C-0301.
