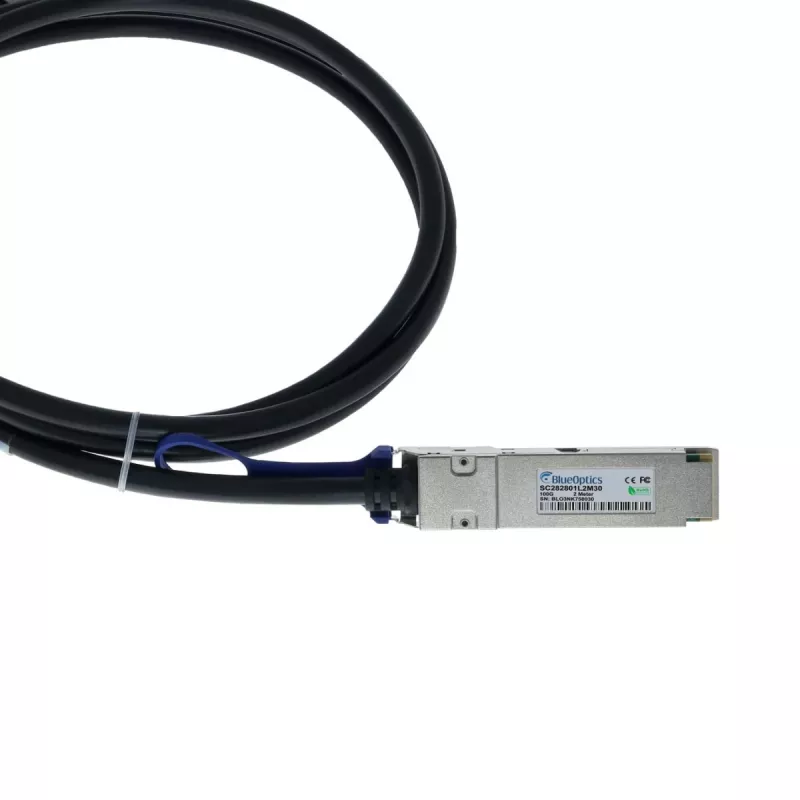

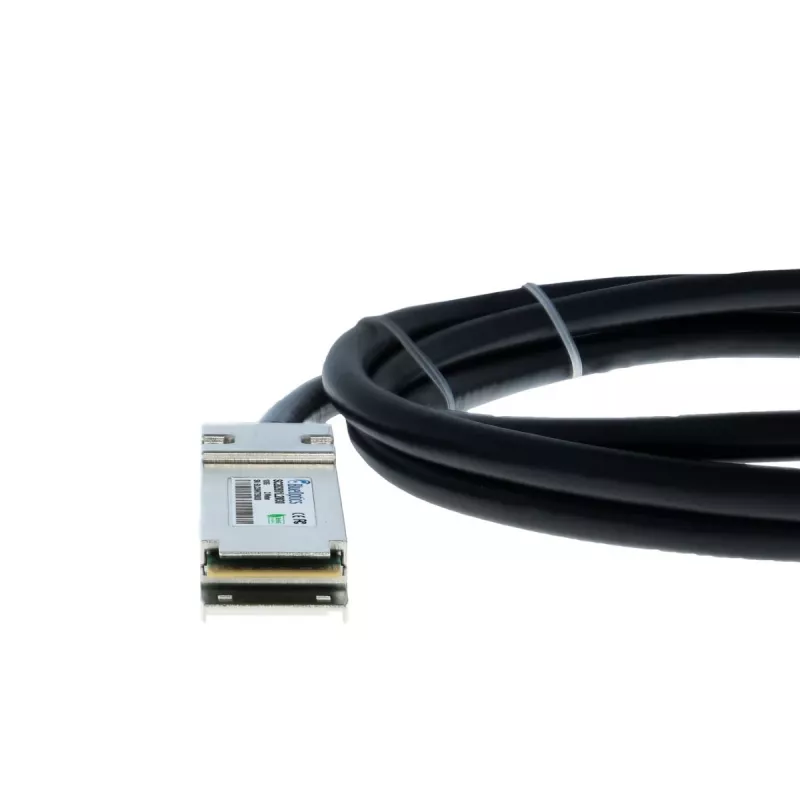

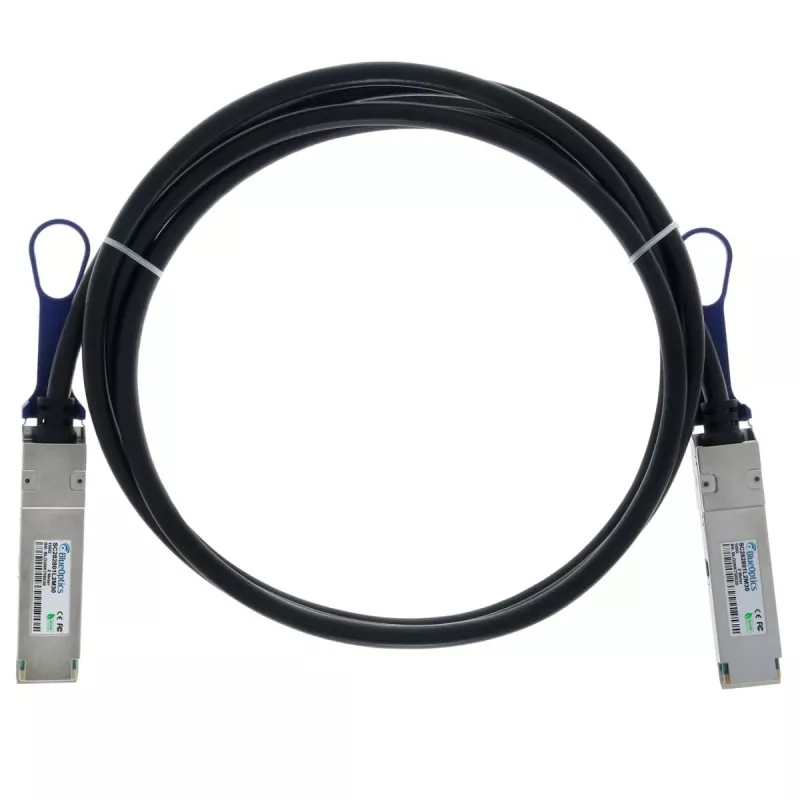

Cabo BlueOptics Ruckus 100G-QSFP-QSFP-P-0101 BlueLAN DAC QSFP28 compatível - 1m

The BlueOptics Ruckus 100G-QSFP-QSFP-P-0101 compatible BlueLAN DAC QSFP28 Cable is a high-performance direct attach copper (DAC) cable designed for 100 Gigabit Ethernet connectivity. This passive twinax cable provides a cost-effective and low-power solution for short-range interconnects in data centers, high-performance computing (HPC), and enterprise networks.

Advantages

This DAC cable offers reliable 100G connectivity with ultra-low power consumption (<0.5W per end) and hot-swappable QSFP28 connectors. Its passive design ensures zero latency and high signal integrity, making it ideal for high-density environments. The cable is MSA compliant and compatible with Ruckus 100G-QSFP-QSFP-P-0101 equipment, ensuring seamless integration.

Suitable for

• Data center interconnect (DCI) within racks and adjacent racks
• High-performance computing (HPC) clusters
• Enterprise networking for top-of-rack to server connections
• 100GBASE-CR4 Ethernet and InfiniBand EDR applications

Key specifications

• Data Rate: 100 Gbps (4 x 25Gbps lanes)
• Cable Type: Direct Attach Copper (DAC), Passive Twinax
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 meter (3.3 ft)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Voltage Supply: 3.3V
• Power Consumption: <0.5W per end
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Jacket Material: PVC
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 ports. This cable is a direct replacement for Ruckus 100G-QSFP-QSFP-P-0101 and is part of the BlueLAN series from BlueOptics.
