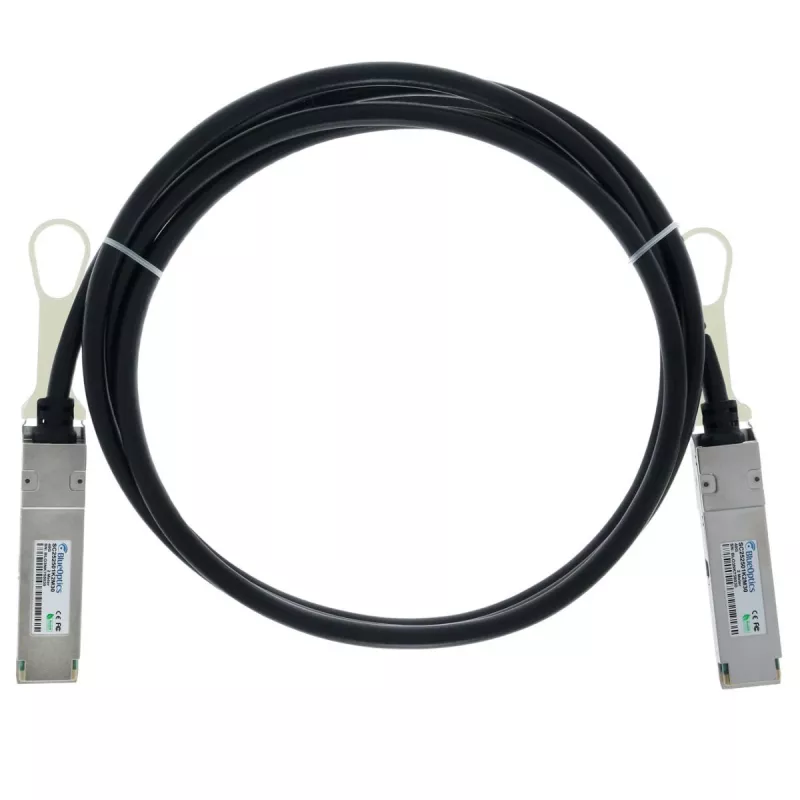

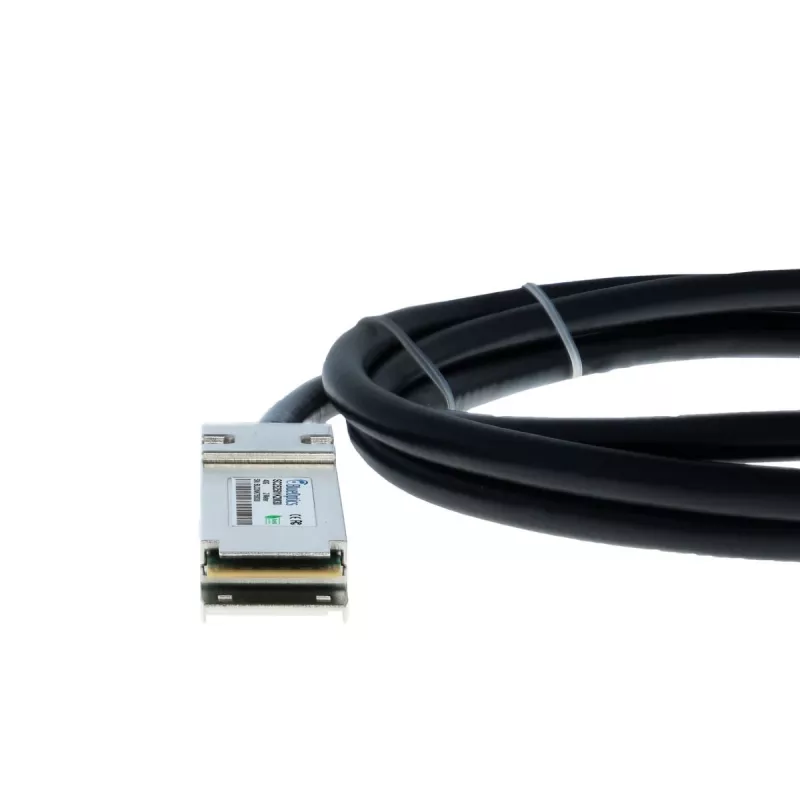

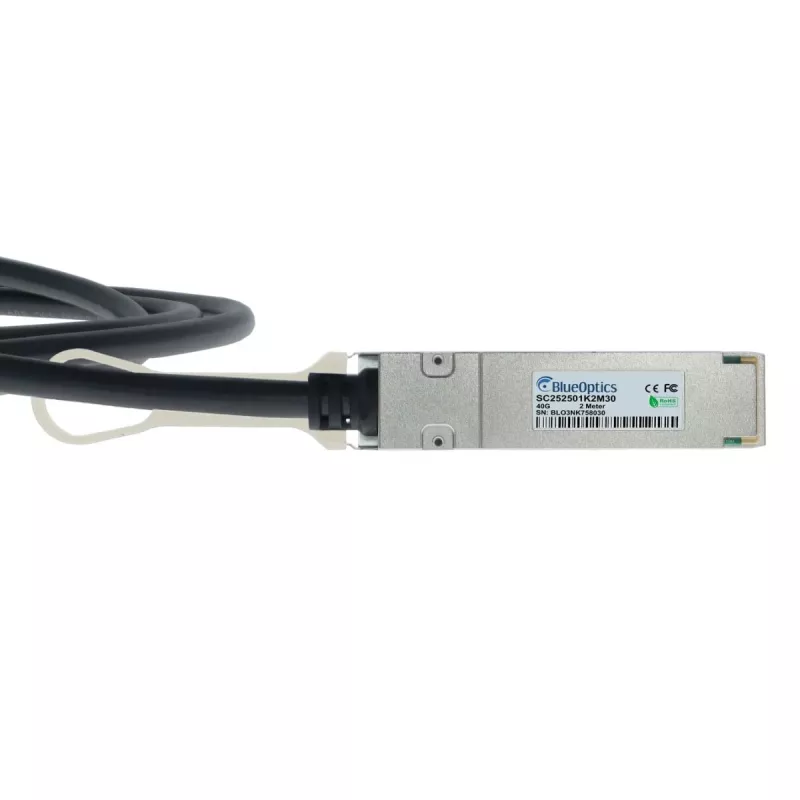

Cabo BlueOptics Ruckus E40G-QSFP-QSFP-P-0301 BlueLAN DAC QSFP+ compatível - 3m

The BlueOptics Ruckus E40G-QSFP-QSFP-P-0301 Compatible BlueLAN DAC QSFP+ Cable is a high-performance direct attach copper (DAC) cable designed for 40 Gigabit Ethernet connectivity. This passive copper cable provides a cost-effective and reliable solution for short-range interconnects in data centers, enterprise networks, and high-performance computing environments. With a length of 3 meters and 26 AWG construction, it ensures excellent signal integrity and low latency.

Advantages

This DAC cable offers plug-and-play simplicity without the need for external power, reducing deployment complexity and cost. Its passive design ensures zero power consumption and minimal heat generation. The cable is fully compatible with Ruckus E40G-QSFP-QSFP-P-0301 equipment, guaranteeing seamless integration. The PVC jacket provides durability and flexibility for easy routing in tight spaces.

Suitable for

• Data center interconnects between switches and servers
• High-performance computing (HPC) clusters
• Enterprise networking within racks or adjacent racks
• 40GbE uplinks and stacking applications

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps (40GbE)
• Cable Length: 3 meters
• AWG: 26 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Compliance: SFF-8436 (QSFP+ MSA)
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP+ ports. Avoid bending the cable beyond its minimum bend radius to prevent signal degradation. This cable is ideal for distances up to 3 meters; for longer distances, consider active optical cables or fiber optic solutions.
